English
Page
6

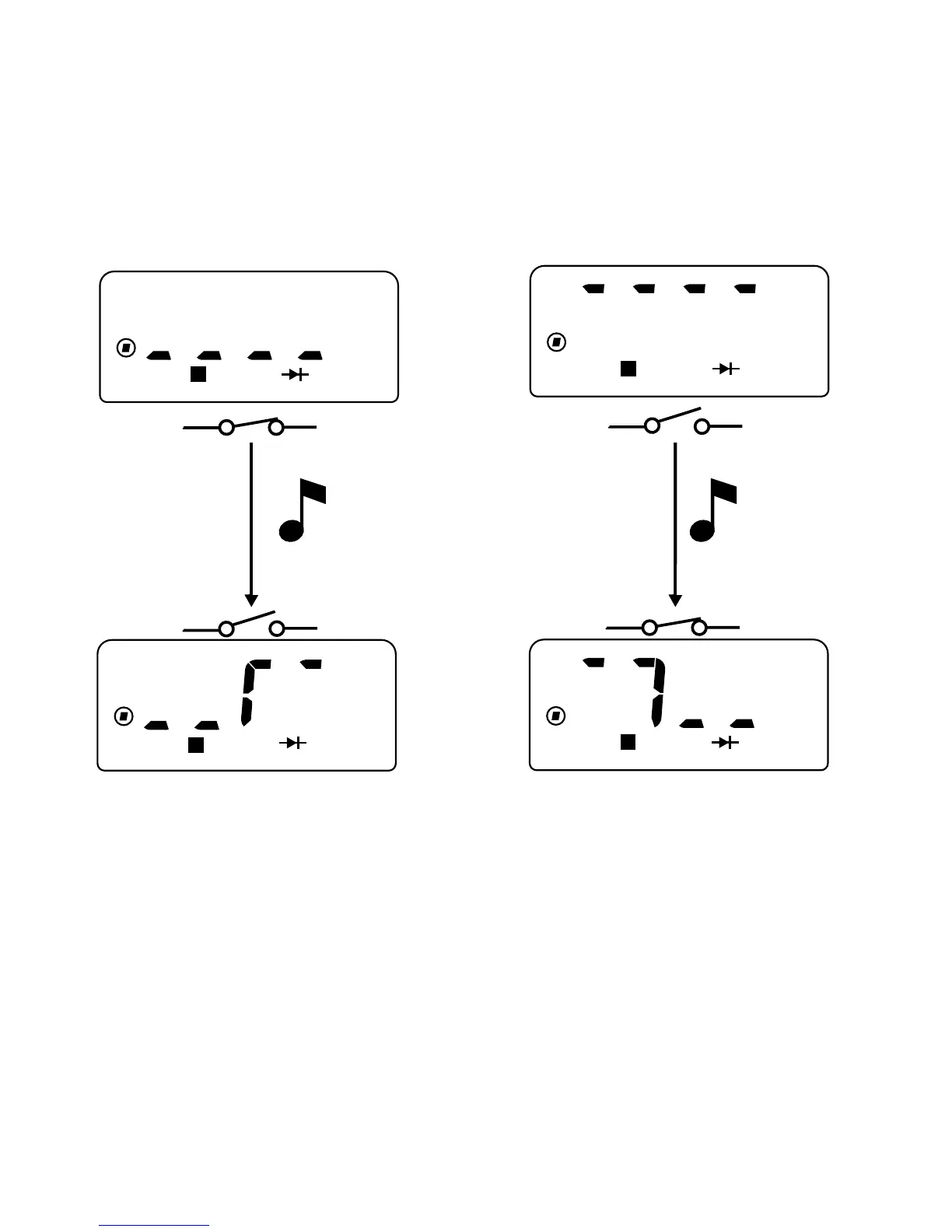

Continuity Capture
(Open/Short Capture on Model 18)
To set up the meter to capture intermittent shorts and opens, turn the
switch to J, connect the leads to the circuit; then press
M.
M
M
M
M
ag12i.eps
Captures transitions longer than 250 µS.
Transitions after the first transition cause the meter to beep, but the
display does not change.
To reset the display to the current condition, press
M.
To exit, press
M for 2 seconds, or change the measurement mode.
Disabling the Beeper
To disable the beeper for all modes, hold down r for 2 seconds while
turning the meter on.
