Fluke 16 User Manual

Calibration Adjustments
9
+
+
5700A
Ice Bath
AK-80
Banana
Plug
Temperature
Yellow
Red
Copper
0
ig6f.eps

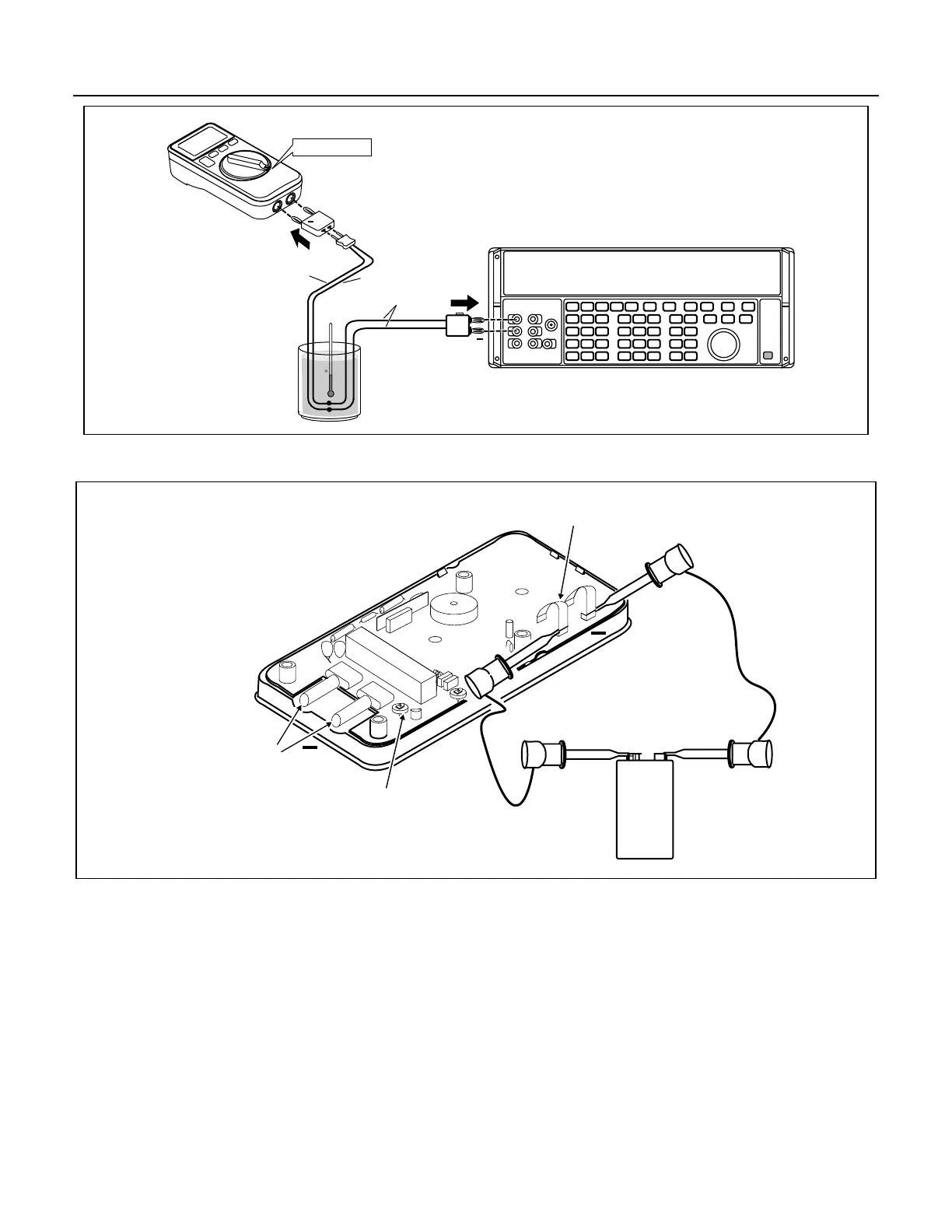

Figure 3. Performance Test for Temperature
+
_
9V
BATTERY
+
Clip to Base Contacts
Adjust R4 for 3.997-4.003V DC
Input Receptacles
+
ig1f.eps
Figure 4. Calibration Adjustment for DC Voltage

Fluke 16 Specifications

General

Type	Digital Multimeter
Continuity Check	Yes
Diode Test	Yes
Temperature Resolution	0.1 °C
Accuracy	±(0.5% + 1 digit)
Temperature Measurement	-40 °C to 400 °C
Capacitance Measurement	1000 µF
Battery Type	9 V
Battery Life	200 hours
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 60 °C
Emissivity	Not applicable
Distance to Spot Ratio	Not applicable
AC Voltage Range	0.1 mV to 600 V
DC Voltage Range	0.1 mV to 600 V
Resistance Range	0 - 40 MΩ
