3 Fluke Corporation Fluke 1630 Earth Ground Clamp Meter
Ground Loop Resistance (Autorange)
Operating temperature: 0 °C to 50 °C (14 °F to 122 °F)
Range Resolution Operating error
1
0.025 - 0.250 Ω 0.002 Ω ± 1.5 % rdg ± 0.05 Ω
0.250 - 9.999 Ω 0.02 Ω ± 1.5 % rdg ± 0.1 Ω
10.00 - 99.99 Ω 0.04 Ω ± 2.0 % rdg ± 0.3 Ω
100.0 - 199.9 Ω 0.4 Ω ± 3.0 % rdg ± 1.0 Ω
200.0 - 400.0 Ω 2 Ω ± 5.0 % rdg ± 5 Ω
400.0 - 600.0 Ω 5 Ω ± 10 % rdg ± 10 Ω
600.0 - 1500 Ω 20 Ω
± 20 %
1
Note: Loop resistance with no inductance, external magnetic
field < 50 A/m, external electrical field < 1 V/m, conductor centered.
Continuity
Beep if resistance < approx. 40 Ω
Ground/leakage current mA~
(Autorange, 50/60 Hz, true-rms, crest factor < 3.0)
Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
Range Resolution Operating error
0.200 - 1.000 mA 0.001 mA ± 2.5 % rdg ± 0.05 mA
1.00 - 10.00 mA 0.01 mA ± 2.5 % rdg ± 0.05 mA
10.0 - 100.0 mA 0.1 mA ± 2.0 % rdg ± 0.3 mA
100 - 1000 mA 1 mA ± 2.0 % rdg ± 3 mA
Current A~
(Autorange, 50/60 Hz, true-rms, crest factor < 3.0 )
Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
Range Resolution Operating error
0.20 - 15.00 A 0.01 A ± 2.0 % rdg ± 0.03 A
15.00 - 30.00 A 0.01 A ± 3.0 % rdg ± 0.03 A
HI/LO Limit Evaluation
Values from 0 Ω to 1510 Ω may be preset for automatic comparison. If the
measured value is outside of the limit an audible and visual signal is given.
Recording
Measured values can be saved or logged with a defined time interval from
1 to 255 s. Recorded values may then be recalled on the display of the
instrument.
Fluke. Keeping your world
up and running.™

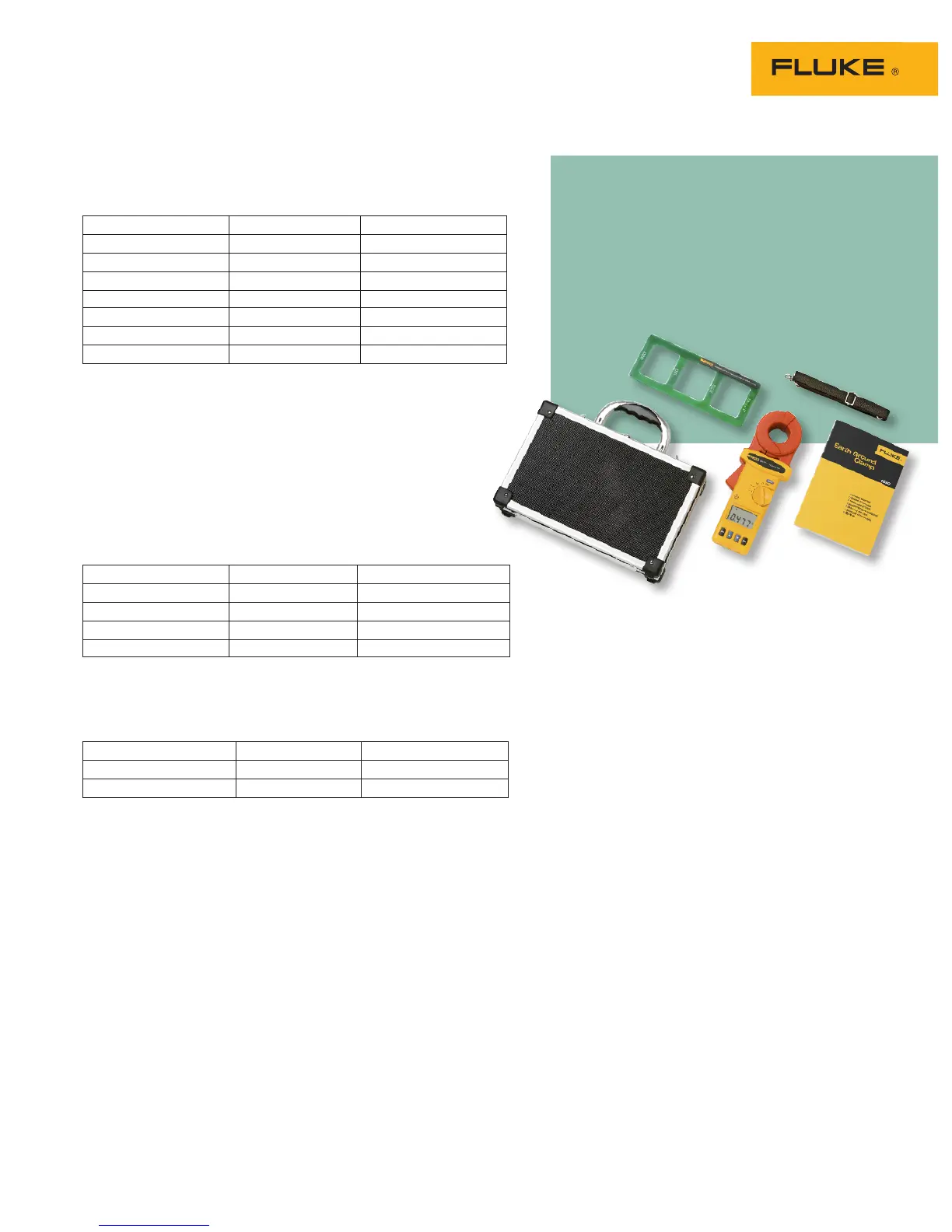

The Fluke 1630 Earth Ground Clamp
Meter includes:
•
Carrying case with strap
•
Resistance test loop
•
Users manual in English, French,
Spanish, German, Italian, Portuguese
and Simplified Chinese
