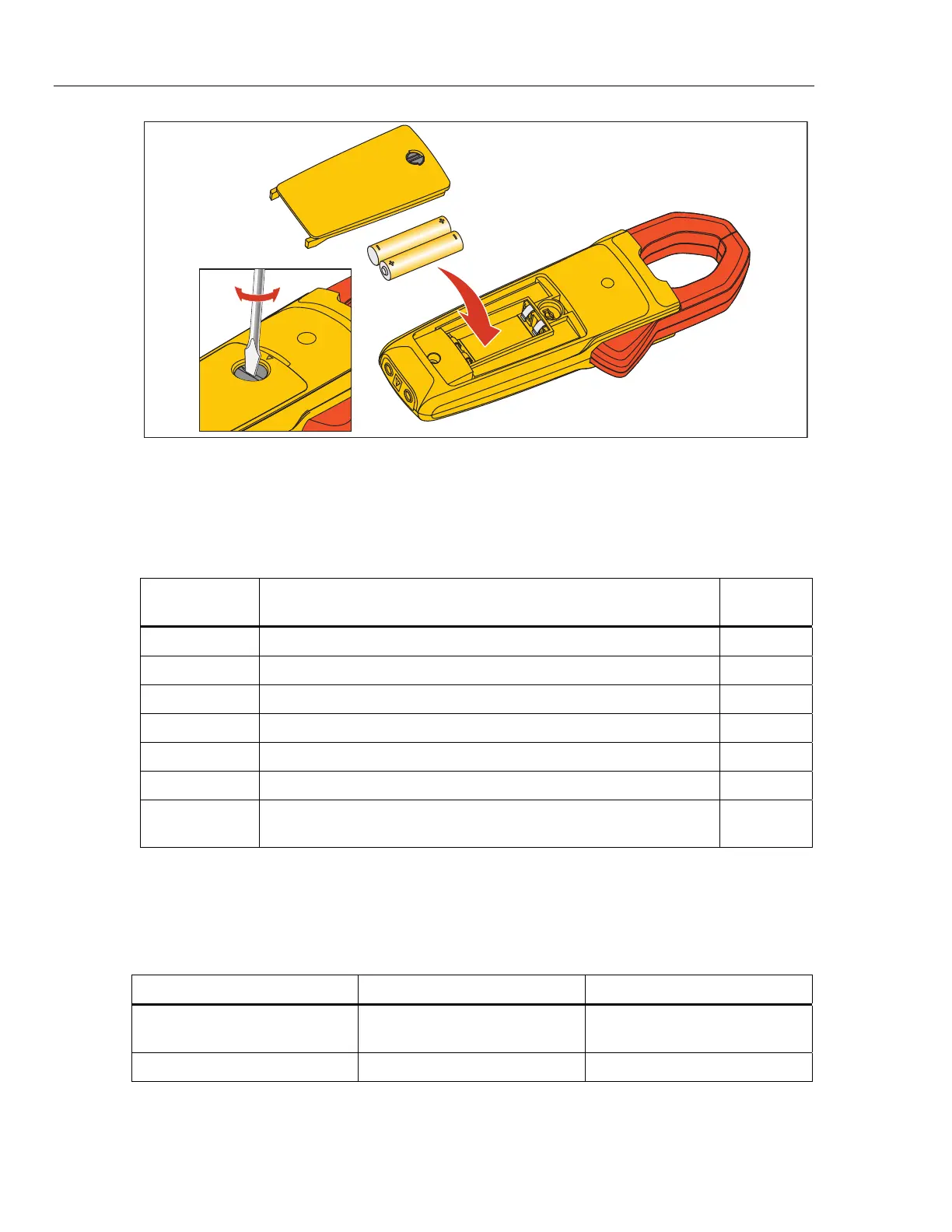

Figure 2. Battery Replacement
User-Replaceable Parts
User-replaceable parts are shown in Table 2.
Table 2. User-Replaceable Parts
Fluke Part
Number
Description Qty
3986568 FLUKE-CAP-2001,TL7X PROBE CAP,BLACK 1
3986579 FLUKE-CAP-2001-01,TL7X PROBE CAP,FLUKE RED 1
2838018 BATTERY 1.5V LR03 ALKALINE AAA 2
4146344 BATTERY DOOR 1
4166286 SOFT CASE BLACK/YELLOW VINYL 1
4045153 323/324/325 USERS MANUAL 1
1997234
THERMOCOUPLE ASSEMBLY K-TYPE BEADED MOLDED DUAL
BANANA PLUG COILED BULK
1
Required Equipment
The equipment in Table 3 is necessary for the performance tests and calibration
adjustment.
Table 3. Required Equipment
Equipment Required Characteristics Recommended Model
Calibrator 4.5-digit resolution
Fluke 5520A Calibrator or
Equivalent
Wired coil 50 turns 5500A/COIL

Fluke 325 Specifications

General

AC voltage	600 V
Continuity	30 Ω
Resistance (max)	40000 Ω
Resistance (min)	40 Ω
Measuring category	CAT III 600V, CAT IV 300V
AC current maximum resolution (probe)	400 A
Product color	Black, Red, Yellow
Carrying case	Yes

Weight and Dimensions

Depth	34 mm
Width	75 mm
Height	207 mm
Weight	283 g
