410B
c.
Insert cable
thru clamp
MS
3057A
and
rear compo-
nents of
connector.
Place the
cable
center
conductor into
the
socket contact.
d.
Soft
solder contact to
cable
center
conductor. Do
not get
any solder on
outside
surfaces
of
contact.
Avoid
excessive heat to
prevent
swelling or
dielectric.

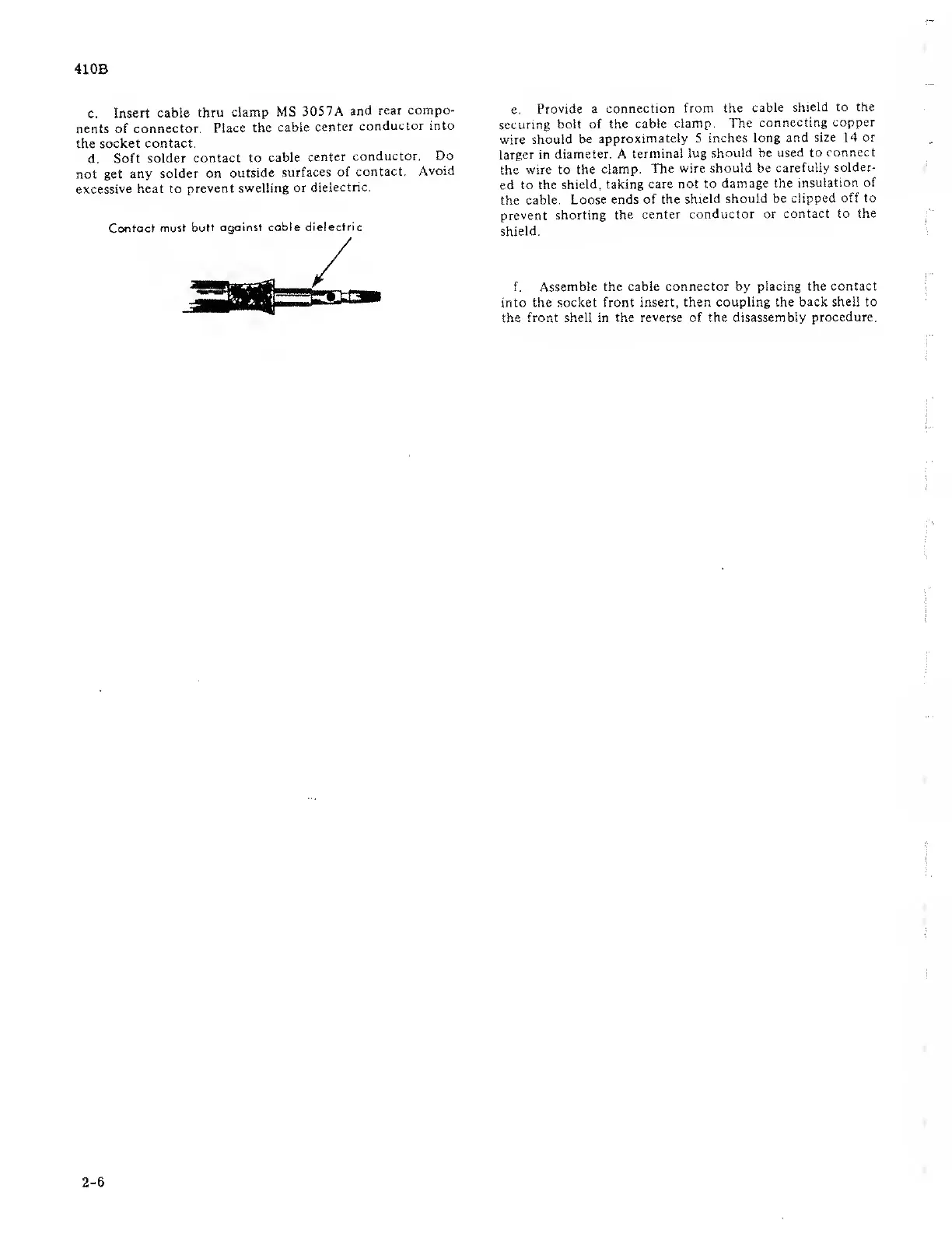

Contact
must
butt against cable
dielectric
e,
Provide a
connection
from the
cable
shield to the
securing
bolt of
the cable
clamp. The
connecting copper
wire should
be
approximately 5
inches long and
size 14 or
larger in
diameter. A
terminal lug
should be used to
connect
the
wire to the
clamp.
The
wire should be
carefully solder-
ed
to the
shield, taking
care not to
damage the
insulation of
the
cable.
Loose ends of the
shield
should be clipped
off to
prevent shorting
the center
conductor or
contact to the
shield.
f. Assemble the cable connector by
placing the contact
into the socket front insert,
then coupling the back shell to
the front shell in the
reverse
of the disassembly
procedure.
2-6
