Fluke 433 - Page 61

Disassembling the Analyzer
5.2. Disassembly & Reassembly Procedures 5
5-5

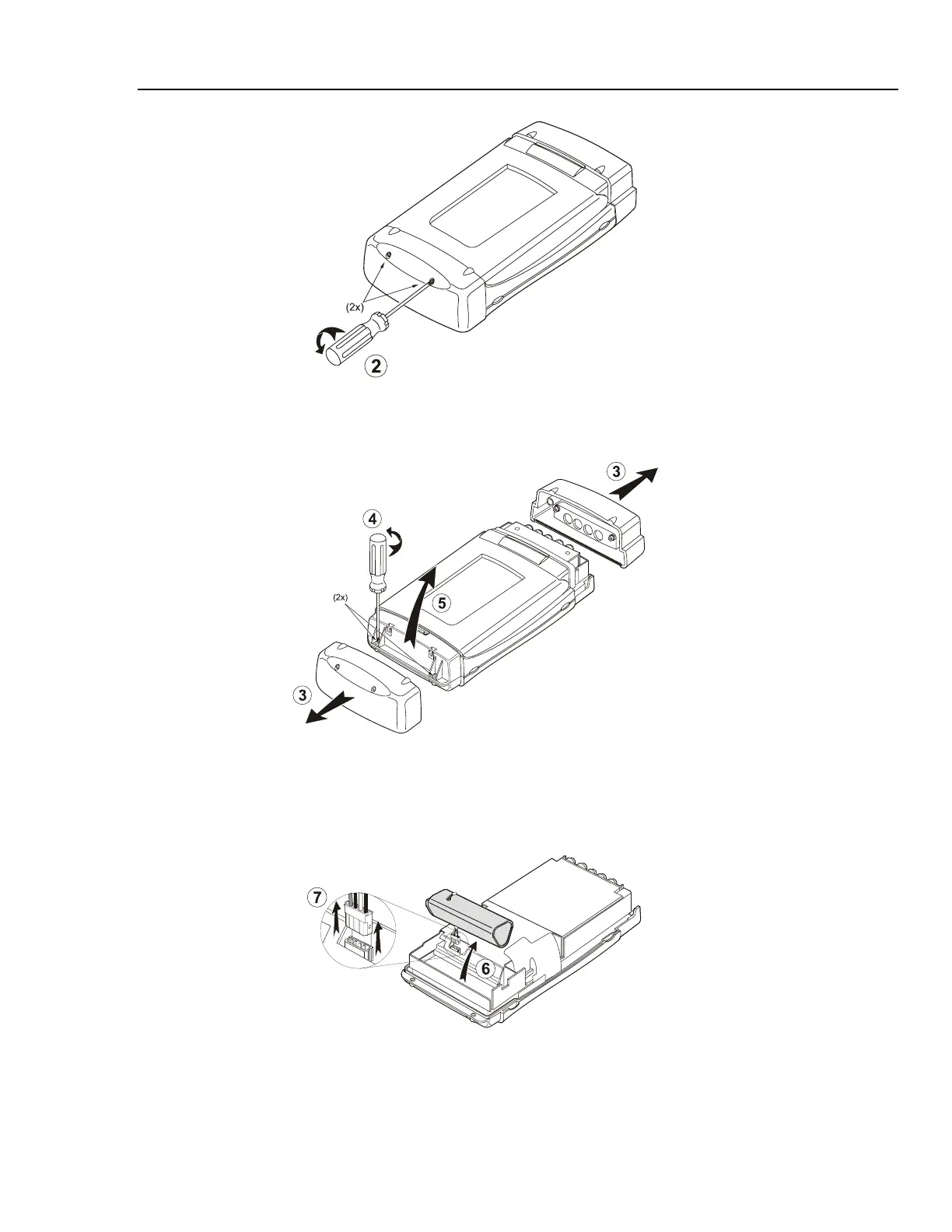

Figure 5-3. Loosen 2 Bottom Holster Screws
Figure 5-4. Opening the Analyzer
Figure 5-5. Removing the Battery Pack
