Fluke 43B Getting Started Guide

Selecting Probes
For standard operation, use the red test lead on input , the black test
lead on COM
and the current clamp on input . If you are using
other test leads or probes, you must change the probe settings accordingly.
1

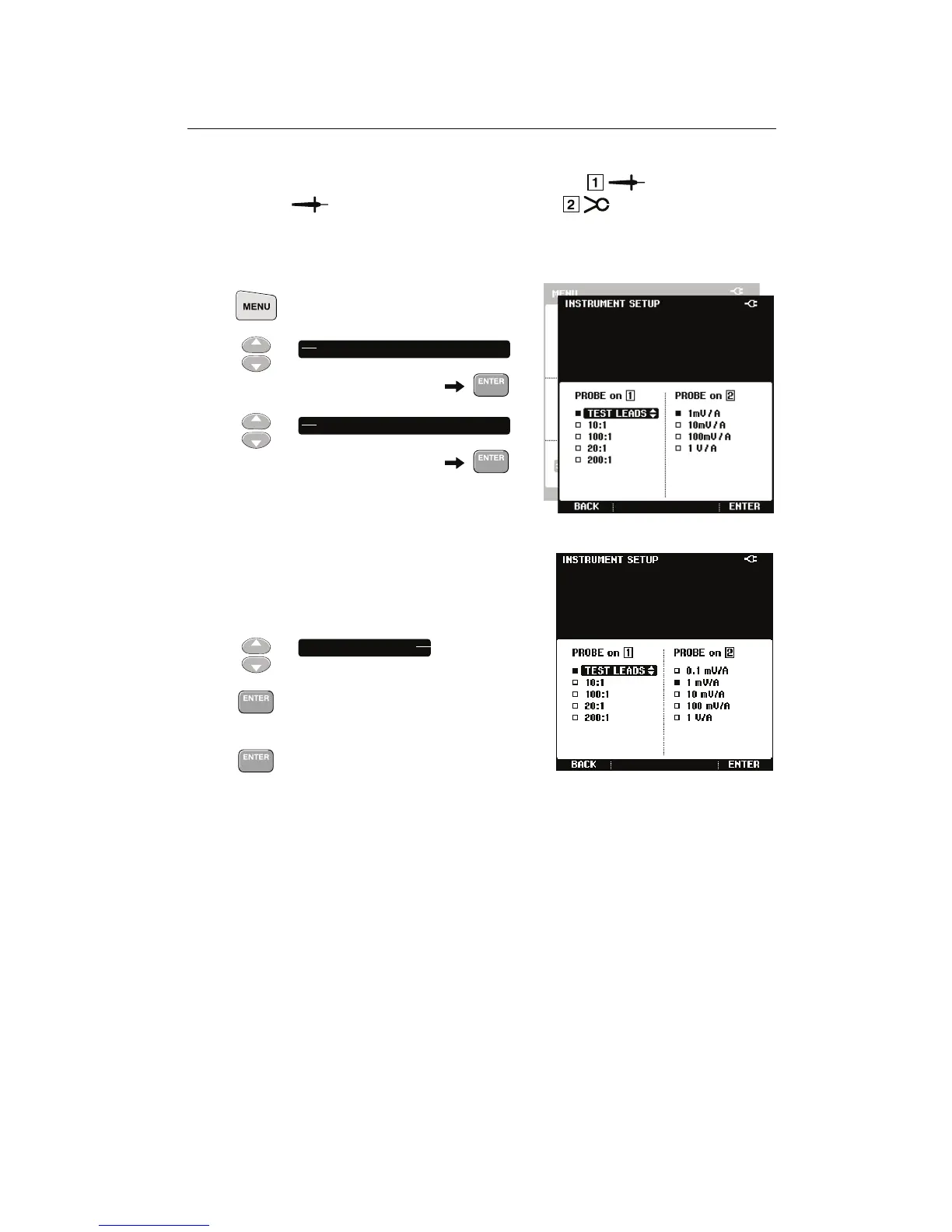

Open the main MENU .
2
3
Select the type of probe you are going to use
on input 1. For all applications in the
Applications Guide, you must use test leads.
4
(for example)
5
Accept the probe settings for
input 1. The screen closes.
6
Select PROBES again.
Select the sensitivity of the current probe you are going to use on input 2.
For all applications in the Applications Guide, use the i400s current probe
and choose 1 mV/A.
 INSTRUMENT SETUP
 PROBES
TEST LEADS 
12
Fluke 43B
Getting Started

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
