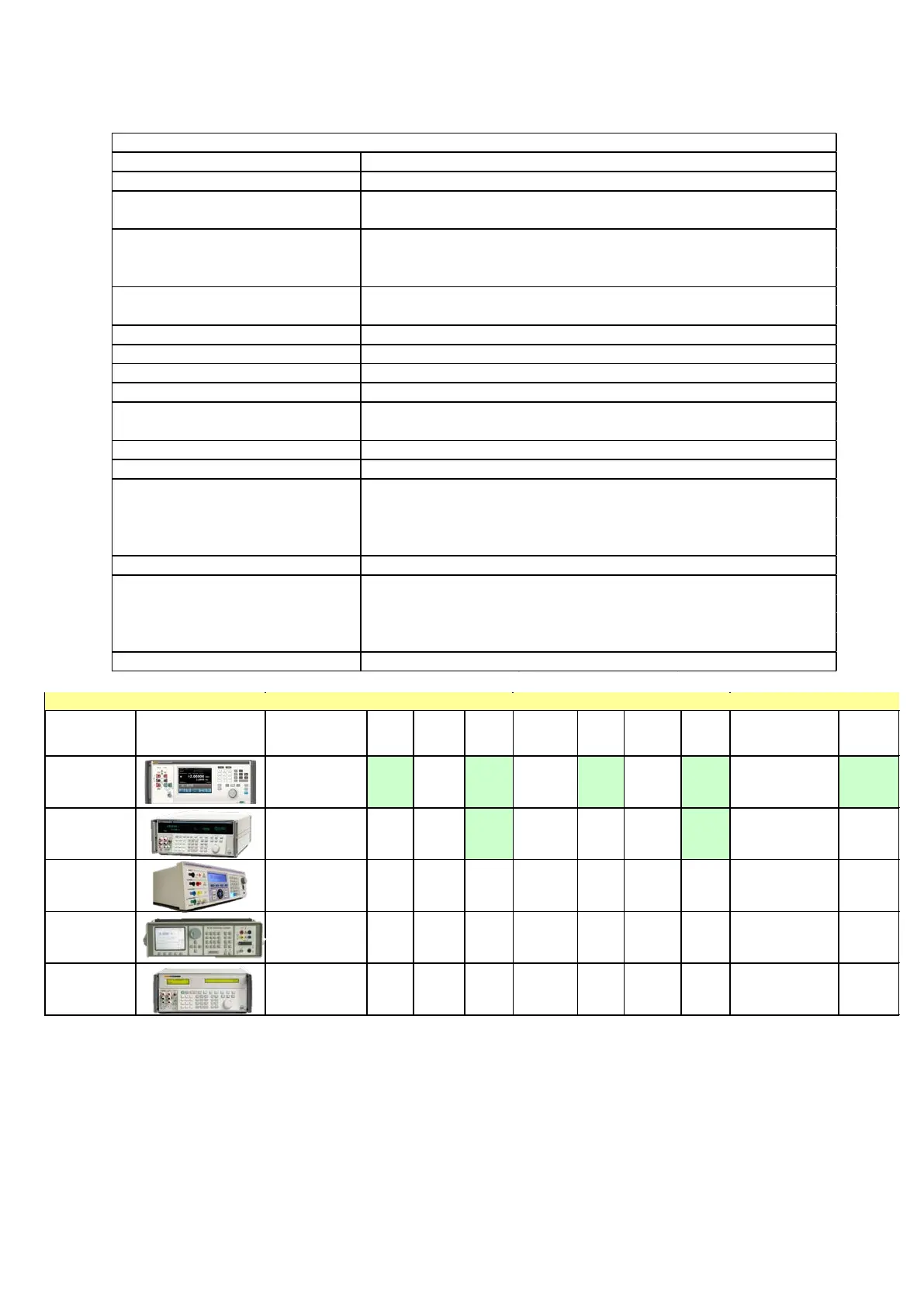

Fluke 5730A Sales Guide

5730A Sales and Demo Guide
Fluke Corporation Company Confidential Page 14 of 28
Warm up time Twice the time since last wamed up, to a maximum of 30 minutes
Settling time Less than 5 seconds for all function and ranges except as noted
Operating Altitude
Safety
Guard Isolation
EMC
Power consumption
Calibration Documentation
Weight (w/o options)
Specification confidence interval
5730A General Specifications
Standard interfaces
IEEE-488 (GPIB), RS-232, USB 2.0 Device, Ethernet, 5725A, 52120A, phase lock in
(BNC), phase reference out (BNC)
Temperature performance
Operating: 0 °C to 50 °C
Calibration: 15 °C to 35 °C
Storage: -40 °C to 75 °C
Relative humidity
Operating: < 80% to 30 °C, < 70% to 40 °C, < 40% to 50 °C
Storage: < 95%, non-condensing
2000 m maximum
IEC 61010-1: 300 V CAT II, Pollution Degree 2
IEC 61326-1: Controlled
20 V
Line power
Line Frequency: 47 to 63 Hz; ± 10% 100V, 110V, 115V, 120V, 200V, 220V, 230V,
240V
300 VA
Dimensions
Height: 17.8 cm (7 in), standard rack increment,
plus 1.5 cm (0.6 in) for feet
Width: 43.2 cm (17 in), standard rack width
Depth: 64.8 cm (25.5 in), overal; 59.4 cm (23.4 in), rack depth
99%, 95%
17025 accredited report of calibration included
27 kg (62 lb)
Absolute accuracy definition
5730A accuracy specifications include stability, temperature coefficient,
linearity, line and load regulation, and the traceability of the external
standards used for calibration. You do not need to add anything to determine
the total accuracy of your calibrator for the temperature range indicated.
Competitive Comparisons
Make/Model ACV, output range
ACV,
output
accuracy
DCV,
output
range
DCV,
output
accuracy
ACI, output
range
ACI,
output
accuracy
DCI, output
range
DCI,
output
accuracy
Resistance, output
range
Resistance,
output
accuracy
Fluke 5730A/03
220 mV - 1100 V, 10
Hz - 1 MHz
42 PPM 0 - 1100 V 3.5 PPM
9 μA - 2.2 A,
10 Hz - 10
kHz
103 PPM 0 - 2.2 A 35 PPM
0 to 100 MΩ, 18
discrete
6.5 PPM
Fluke 5720A/03
220 mV - 1100 V, 10
Hz - 1 MHz
45 PPM 0 - 1100 V 3.5 PPM
9 μA - 2.2 A,
10 Hz - 10
kHz
120 PPM 0 - 2.2 A 35 PPM
0 to 100 MΩ, 18
discrete
8.5 PPM
Transmille 3010A
0 - 1020 V, 10 Hz -
500 kHz
150 PPM 0 - 1025 V 8 PPM
20 μA - 30 A,
10 Hz - 10
kHz
400 PPM
0 - 30 A
(time limit)
50 PPM 0 Ω - 1000 MΩ 8 PPM
Meatest 142
0 - 1000 V, 20 Hz -
100 kHz
180 PPM 0 - 1000 V 10 PPM
1 μA - 30 A,
20 Hz - 10
kHz
500 PPM 0 - 30 A 100 PPM 0 Ω - 1000 MΩ 100 PPM
Fluke 5522A
1 mV - 1020 V, 10 Hz
- 500 kHz
120 PPM 0 - 1020 V 9 PPM
29 μA - 20.5
A, 10 Hz - 30
kHz
350 PPM 0 - 20.5 A 80 PPM 0 MΩ- 1100 MΩ 22 PPM

Fluke 5730A Specifications

General

Type	Multifunction Calibrator
Resistance Range	0 to 1 GΩ
AC Voltage Frequency	10 Hz to 1 MHz
Display	Color LCD
Interfaces	RS-232, Ethernet
Weight	18 kg
DC Voltage Range	0 to ±1100 V
Dimensions	172 mm H x 432 mm W x 457 mm D (6.8 in H x 17 in W x 18 in D)
