Fluke 715 Instruction Sheet

715 English Instruction Sheet
Page 8
Simulating a Transmitter
Use simulate mode when an external 24 to 30 V loop power
supply is available.

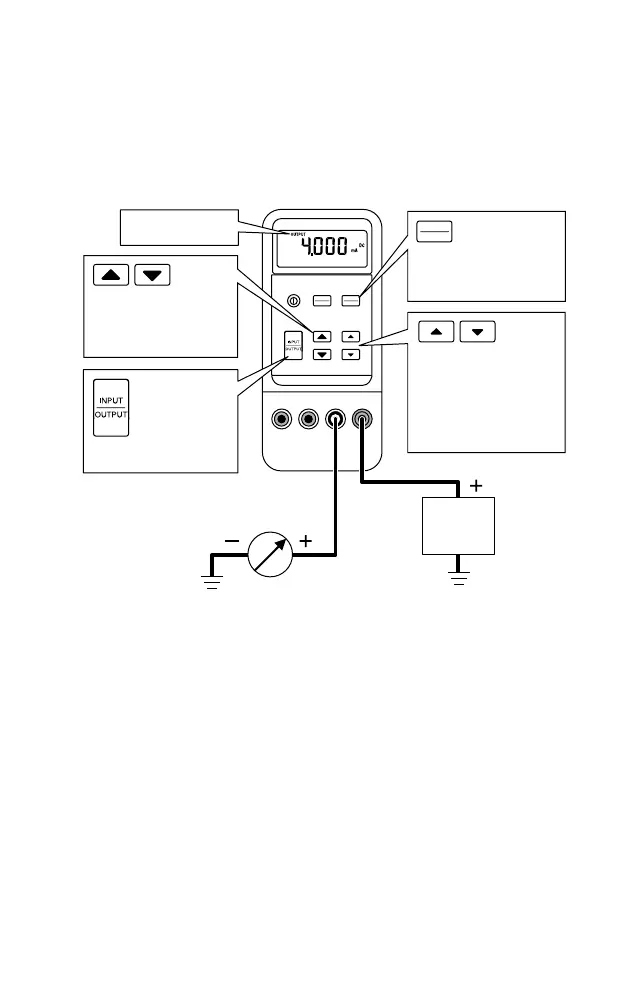

Insert the test leads into the mA SIMULATE − and + jacks as
shown below.
COM
V
mV
mA
%
Power
supply
30V dc
max.
Press to scroll
up/down 0.001 mA.
Hold down to scroll
faster.
Press to step
up/down 4 mA (25%)
Press so that
OUTPUT is on
the display
OUTPUT
Press to toggle
mA and % of
4-20 mA scale
mA
%
it05i.eps

Fluke 715 Specifications

General

Battery voltage	9 V
Battery technology	Alkaline
Display type	LCD
Display digits	5 digits
Drop proof up to	1 m
Operating altitude	0 - 3000 m
Operating vibration	2 G
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 95 %
Holster included	Yes

Weight and Dimensions

Depth	32 mm
Width	87 mm
Height	187 mm
Weight	330 g
