Fluke 77/BN - Operator Maintenance

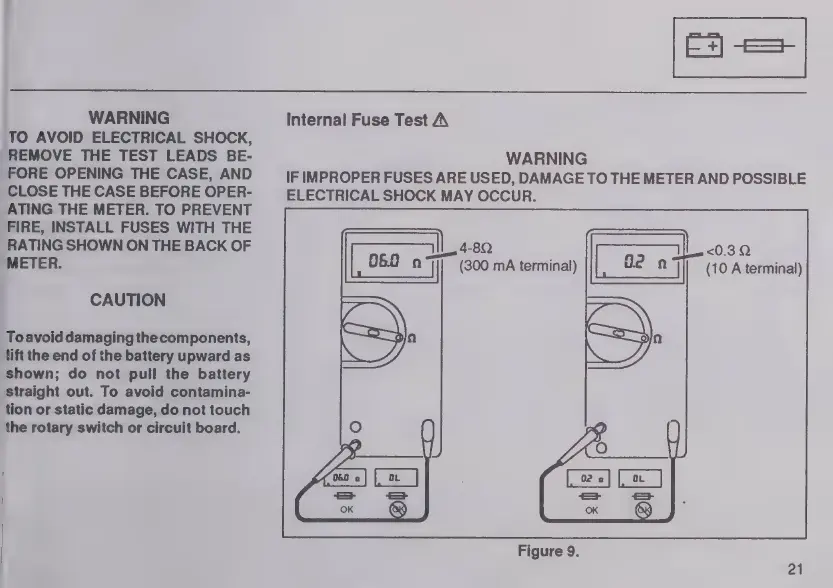

WARNING Internal Fuse Test A
TO AVOID ELECTRICAL SHOCK,
REMOVE THE TEST LEADS BE- WARNING
FORE OPENING THE CASE, AND IFIMPROPER FUSES ARE USED, DAMAGE TO THE METER AND POSSIBLE
CLOSE THE CASE BEFORE OPER- ELECTRICAL SHOCK MAY OCCUR.
ATING THE METER. TO PREVENT
FIRE, INSTALL FUSES WITH THE
RATING
SHOWN
ON
THE
BACK
OF
14-80
<0.3Q
METER.
|
060
a
|
(300
mA
terminal)
A
TÎ
(10
A
terminal)
CAUTION
To avoid damaging the components,
| lift the end of the battery upward as
shown; do not pull the battery
straight out. To avoid contamina-
tion or static damage, do not touch
the rotary switch or circuit board.
Figure 9.
21
