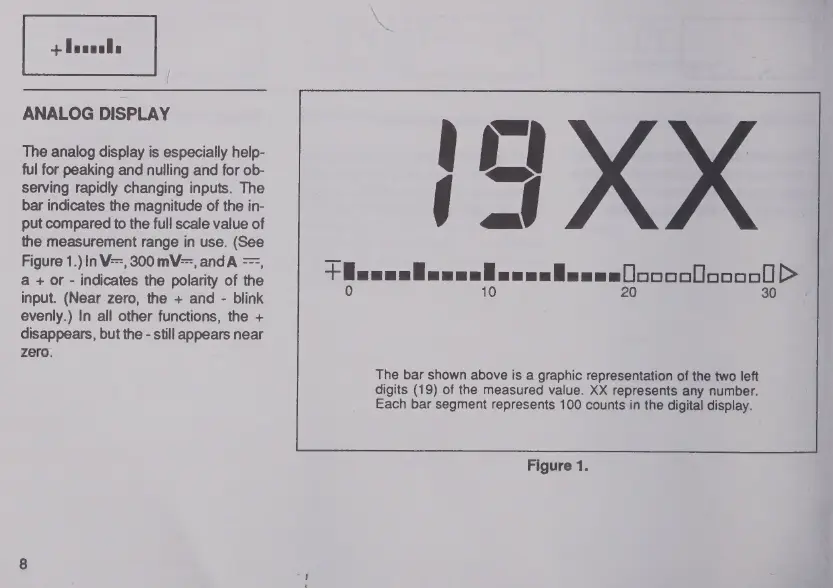

ANALOG DISPLAY
The analog display is especially help-
ful for peaking and nulling and for ob-
serving rapidly changing inputs. The
bar indicates the magnitude of the in-
put compared to the full scale value of
the measurement range in use. (See
Figure 1.) In V=, 300 mV=, and A ==,
a 4 or - indicates the polarity of the
input. (Near zero, the + and - blink
evenly.) In all other functions, the +
disappears, but the - still appears near
Zero.
II AX
o ooo dono >󰾰 هه هه« دود و 1
30 20 10 0
The bar shown above is a graphic representation of the two left
digits (19) of the measured value. XX represents any number.
Each bar segment represents 100 counts in the digital display.
Figure 1.
