Making M
easurements
17
MIN MAX
RANGE
HOLD
H
Hz
REL
mA
A
mV
V
V
OFF
!
!
A
COM
V
mA
µ
A
1000V MA
X
400mA MAX
FUSED
10A MAX
FUSED
PEAK MIN MAX
µ
A
CAT II
Circuit Power
OFF
In-Circuit Resistance Measurements
Disconnect
1
2
3
Isolating a Potentiometer
1
3
2
Disconnect
Isolating a Resistor
4 1/2 DIGITS
1 Seconds
87
TRUE RMS MULTIMETER
III
iy6f.eps

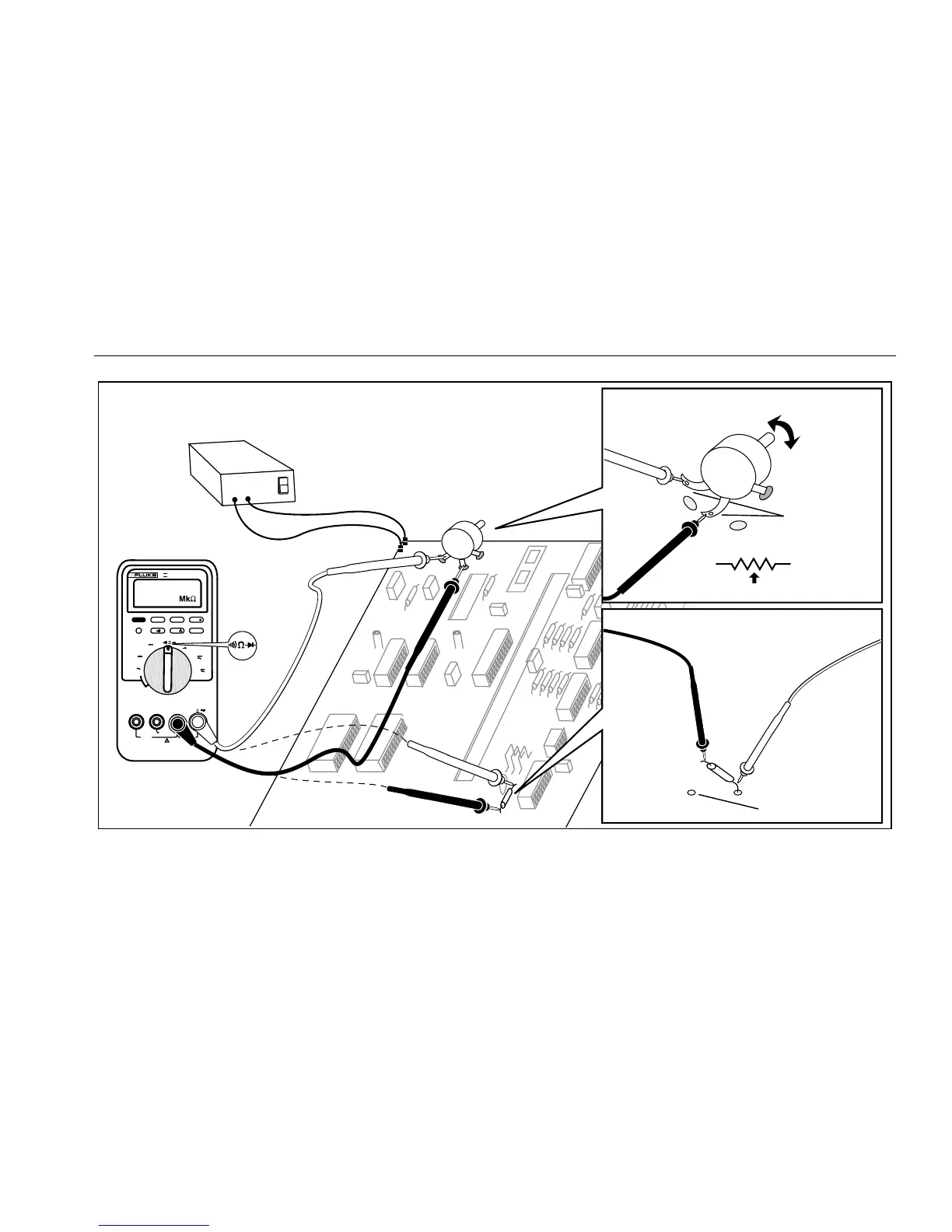

Figure 4. Measuring Resistance
24
26
Table of Contents
Table of Contents
3
List of Figures
7
Introduction
9
Safety Information
9
International Electrical Symbols
10
Inputs
12
Your Meter's Features
12
Rotary Switch Positions
13
Pushbuttons
14
Display Features
17
Power-Up Options
19
Automatic Power-Off
19
Input Alert™ Feature
20
Making Measurements
20
Measuring AC and DC Voltage
20
Testing for Continuity
22
Measuring Resistance
24
Using Conductance for High Resistance or Leakage Tests
26
Measuring Capacitance
26
Estimating Capacitance Values over 5 Microfarads
28
Testing Diodes
29
Measuring AC or DC Current
30
Measuring Frequency
33
Functions and Trigger Levels for Frequency Measurements
34
Measuring Duty Cycle
35
Determining Pulse Width
36
Analog Bar Graph
36
Model 87 Bar Graph
36
Models 83 and 85 Bar Graph
37
4-1/2 Digit Mode (Model 87)
37
MIN MAX Recording Mode
38
MIN MAX Functions
39
Touch Hold ® Mode
40
Relative Mode
40
Zoom Mode (Models 83 and 85)
40
Uses for the Zoom Mode (Models 83 and 85)
41
Maintenance
41
General Maintenance
41
Testing the Fuses
42
Replacing the Battery
43
Replacing the Fuses
43
Service and Parts
44
Replacement Parts
46
Accessories
48
Specifications
49
Models 85 and 87 AC Voltage Function Specifications
50
Model 83 AC Voltage Function Specifications
51
DC Voltage, Resistance, and Conductance Function Specifications
52
Current Function Specifications
53
Capacitance and Diode Function Specifications
55
Frequency Counter Specifications
55
Frequency Counter Sensitivity and Trigger Levels
56
Electrical Characteristics of the Terminals
57
MIN MAX Recording Specifications
58
