Making Measurements
19
The meter measures capacitance by charging the
capacitor with a known current for a known period of time,
measuring the resulting voltage, then calculating the
capacitance. The measurement takes about 1 second per
range. The capacitor charge can be up to 1.2 V.
The meter’s capacitance ranges are 5 nF, 0.05 µF,
0.5 µF, and 5 µF.
To measure capacitance, set up the meter as shown in
Figure 5.
The following are some tips for measuring capacitance:
• To speed up measurements of similar values, press
Kto manually select the proper range.
• To improve the accuracy of measurements less than
5 nF, use the relative (REL) mode to subtract the
residual capacitance of the meter and leads.
MIN MAX RANGE HOLD
H
HzREL
mA
A
mV
V
V
OFF
!
!
A
COM
V
mA µA
1000V MAX
400mA MAX
FUSED
10A MAX
FUSED
PEAK MIN MAX
µA
µ
CAT II
nF
Select
Capacitance
+
+
+
+
+
+
+
+
+
4 1/2 DIGITS
1 Seconds
87
TRUE RMS MULTIMETER
III
iy10f.eps

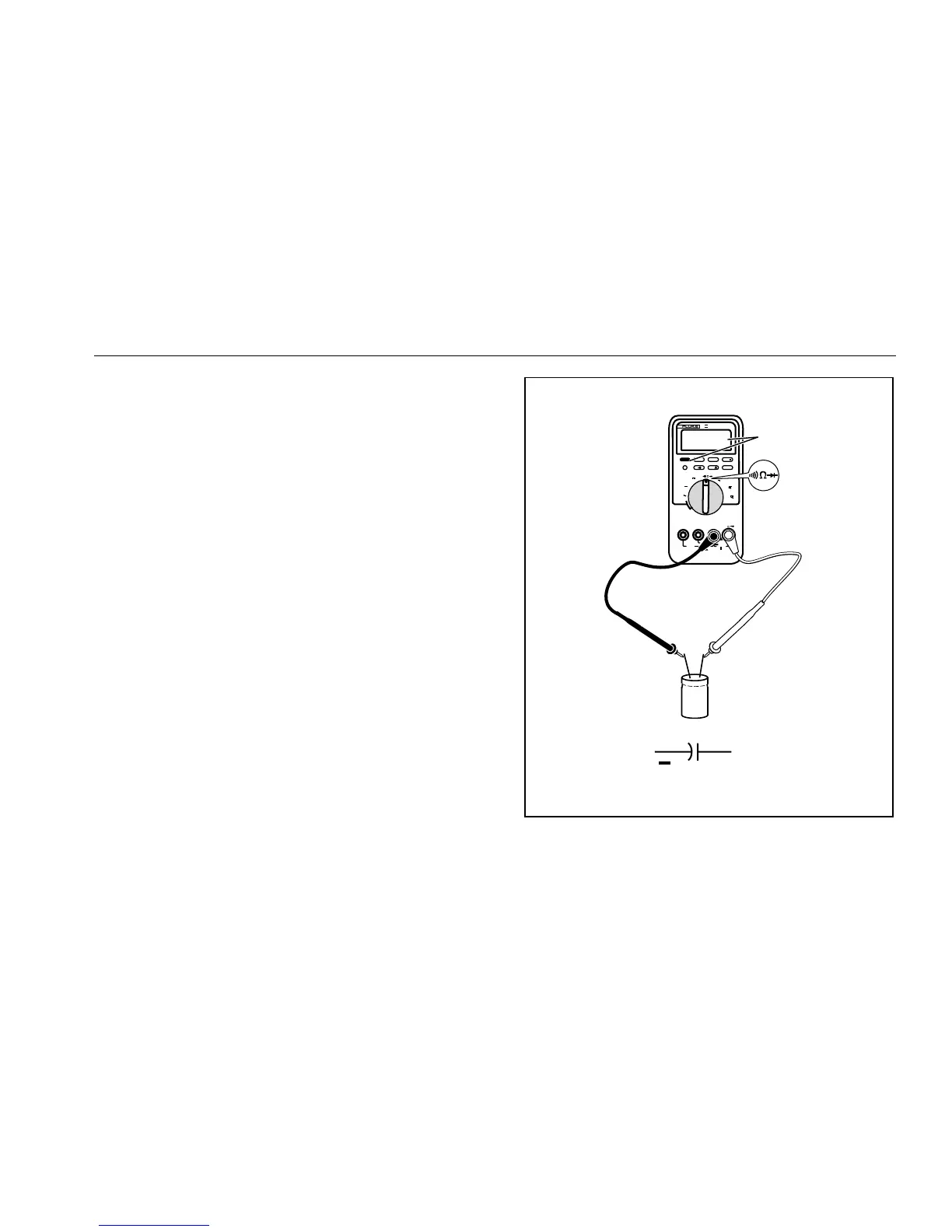

Figure 5. Measuring Capacitance
