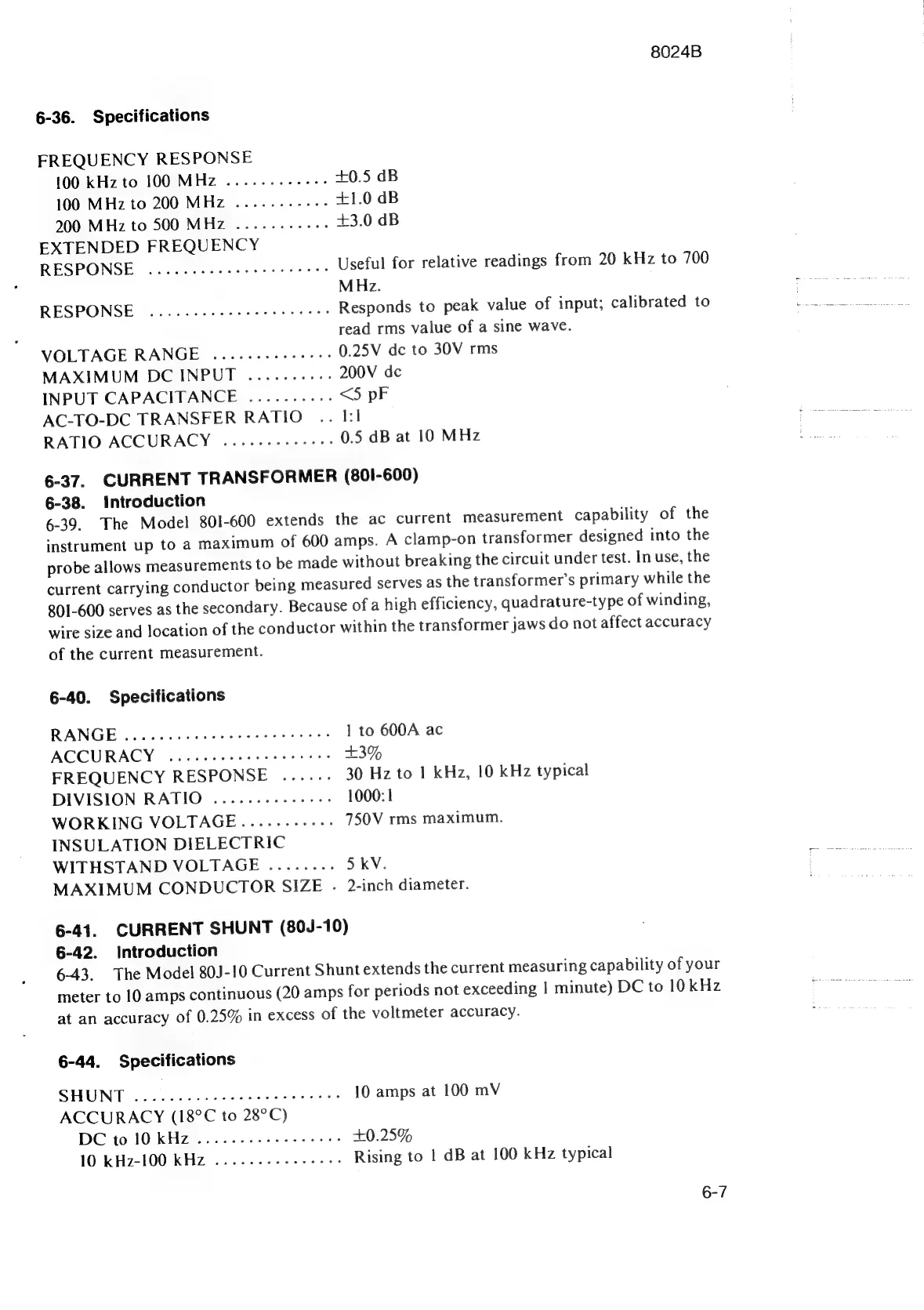

Fluke 8024B - Page 105

8024B
6-36.
Specifications
FREQUENCY
RESPONSE
100
kHz
to
100
MHz
............
+0.5
dB
100
MHz
to
200
MHz
..........-
+1.0
dB
200
MHz
to
500
MHz
...........
+3.0
dB
EXTENDED
FREQUENCY
RESPONSE
.....
eee
ee
eee
eee
Useful
for
relative
readings
from
20
kHz
to
700
MHz.
RESPONSE
......0e
eee
cree
eeeee
Responds
to
peak
value
of
input;
calibrated
to
read
rms
value
of
a
sine
wave.
VOLTAGE
RANGE
.......---+-+5
0.25V
dc
to
30V
rms
MAXIMUM
DC
INPUT
........--
200V
dc
INPUT
CAPACITANCE
.........--
<5
pF
AC-TO-DC
TRANSFER
RATIO
..
1:1
RATIO
ACCURACY
.......-2-065
0.5
dB
at
10
MHz
6-37.
CURRENT
TRANSFORMER
(80!-600)
6-38.
Introduction
6-39.
The
Model
801-600
extends
the
ac
current
measurement
capability
of
the
instrument
up
to
a
maximum
of
600
amps.
A
clamp-on
transformer
designed
into
the
probe
allows
measurements
to
be
made
without
breaking
the
circuit
under
test.
In
use,
the
current
carrying
conductor
being
measured
serves
as
the
transformer’s
primary
while
the
801-600
serves
as
the
secondary.
Because
of
a
high
efficiency,
quadrature-type
of
winding,
wire
size
and
location
of
the
conductor
within
the
transformer
jaws
do
not
affect
accuracy
of
the
current
measurement.
6-40.
Specifications
RANGE
...
ccc
eee
eee
eee
tee
eeeee
1
to
600A
ac
ACCURACY
.....-ce
cere
ree
reee
+$3%
FREQUENCY
RESPONSE
......
30
Hz
to
1
kHz,
10
kHz
typical
DIVISION
RATIO
........--0-65
1000:
1
WORKING
VOLTAGE........----
750V
rms
maximum.
INSULATION
DIELECTRIC
WITHSTAND
VOLTAGE
.......-
5
kV.
MAXIMUM
CONDUCTOR
SIZE
.
2-inch
diameter.
6-41.
CURRENT
SHUNT
(80J-10)
6-42. Introduction
6-43.
The
Model
80J-10
Current
Shunt
extends
the
current
measuring
capability
of
your
meter
to
10
amps
continuous
(20
amps
for
periods
not
exceeding
|
minute)
DC
to
10
kHz
at
an
accuracy
of
0.25%
in
excess
of
the
voltmeter
accuracy.
6-44. Specifications
SHUNT
(45.26
beet
onde
beeen
er
ns
10
amps
at
100
mV
ACCURACY
(18°C
to
28°C)
DC to 10 KHZ .. 0. cece cence ees +0.25%
10
kHz-100
kHz
........-----5-
Rising
to
|
dB
at
100
kHz
typical
6-7
