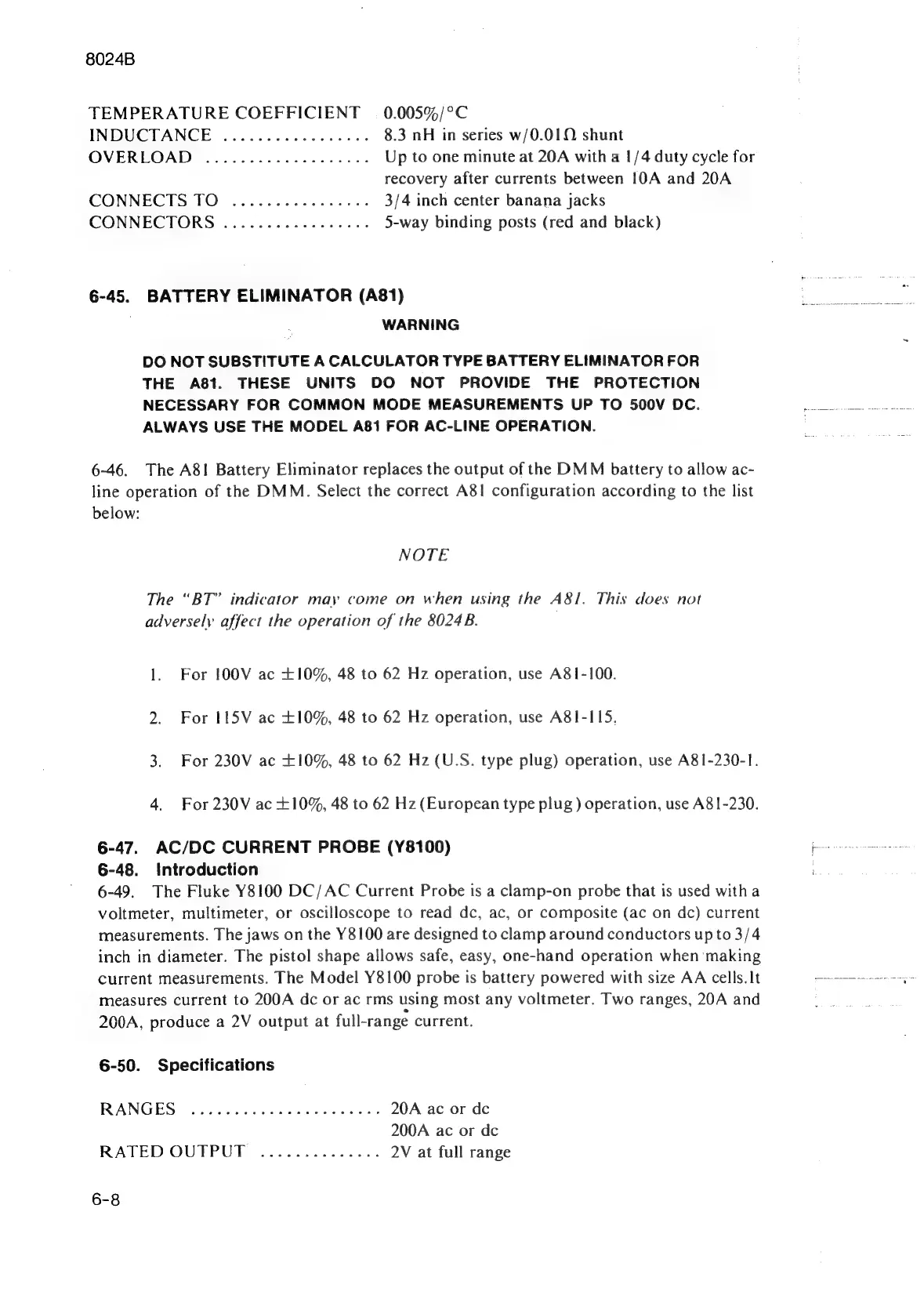

TEMPERATURE COEFFICIENT = 0.005%/°C
INDUCTANCE ................4. 8.3 nH in series w/0.010 shunt
OVERLOAD ........ 0000s eee Up to one minute at 20A with a 1/4 duty cycle for
recovery after currents between IOA and 20A
CONWNECKS 1TO.. c4 eexeeticeees 3/4 inch center banana Jacks
CONNECTORS ...........00005- 5-way binding posts (red and black)
6-45. BATTERY ELIMINATOR (A81)
WARNING
DO NOT SUBSTITUTE A CALCULATOR TYPE BATTERY ELIMINATOR FOR
THE A81. THESE UNITS DO NOT PROVIDE THE PROTECTION
NECESSARY FOR COMMON MODE MEASUREMENTS UP TO 500V DC.
ALWAYS USE THE MODEL A81 FOR AC-LINE OPERATION.
6-46. The A81 Battery Eliminator replaces the output of the DMM battery to allow ac-
line operation of the DMM. Select the correct A8! configuration according to the list
below:
NOTE
The “BT” indicator may come on when using the A&I. This does not
adversely affect the operation of the 8024 B.
1. For 100V ac +10%, 48 to 62 Hz operation, use A81-100.
2. For II5V ac +10%, 48 to 62 Hz operation, use A81-115,
3. For 230V ac +10%, 48 to 62 Hz (U.S. type plug) operation, use A81-230-1.
4. For 230V ac 10%, 48 to 62 Hz (European type plug ) operation, use A8 1-230.
6-47. AC/DC CURRENT PROBE (Y8100)
6-48. Introduction
6-49. The Fluke Y8100 DC/AC Current Probe is a clamp-on probe that is used witha
voltmeter, multimeter, or oscilloscope to read dc, ac, or composite (ac on dc) current
measurements. The jaws on the Y8100 are designed to clamp around conductors up to 3/4
inch in diameter. The pistol shape allows safe, easy, one-hand operation when making
current measurements. The Model Y8100 probe is battery powered with size AA cells. It
measures current to 200A dc or ac rms using most any voltmeter. Two ranges, 20A and
200A, produce a 2V output at full-range current.
6-50. Specifications
RIANGES > ose oe cdnaliters ces eo 20A ac or de
200A ac or dc
RATED OUTPUT | icse aidan tees 2V at full range
