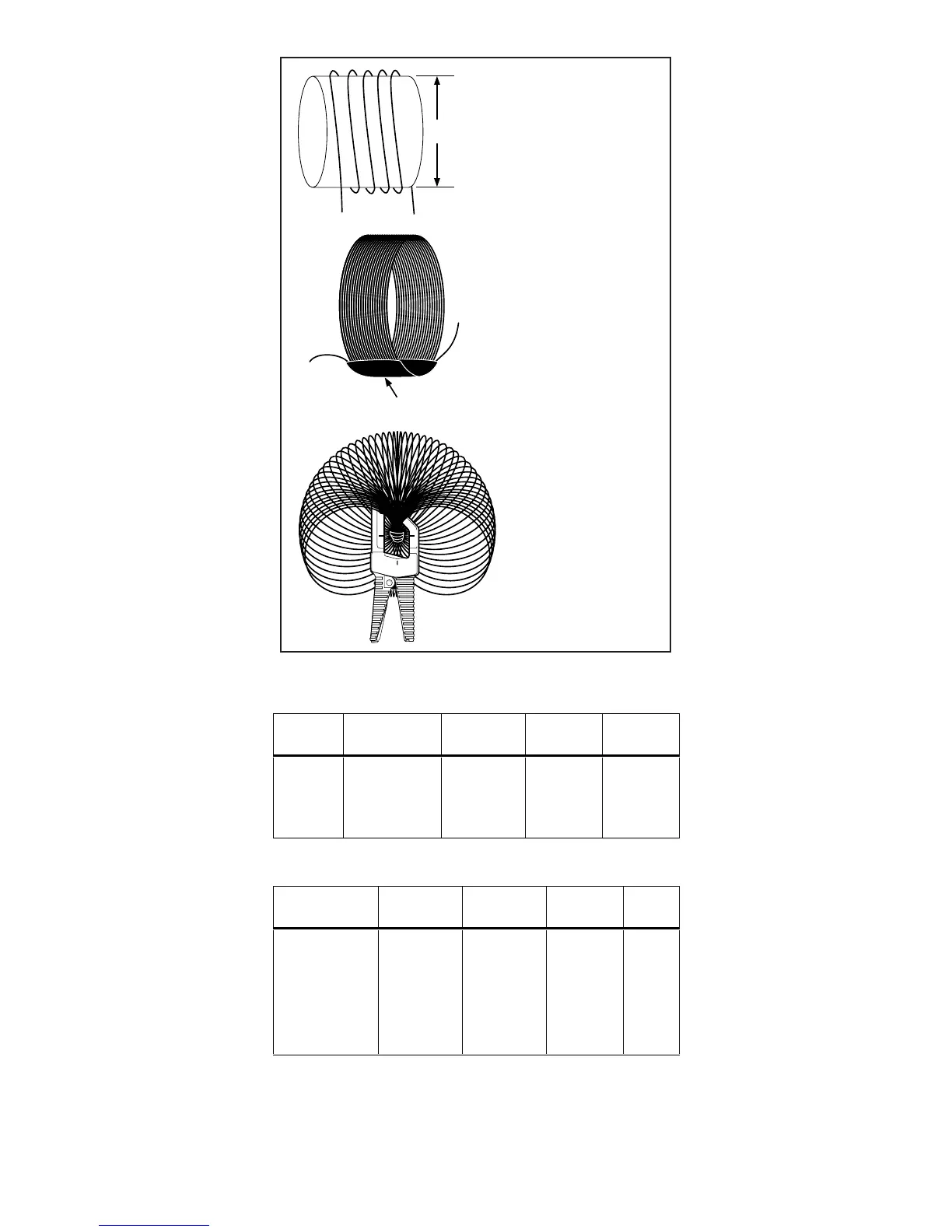

50 TURNS WOUND ON
CYLINDRICAL FORM USING
10-GAUGE MAGNET WIRE
REMOVE FORM AND TAPE
COIL TOGETHER MAKING
SURE 50 WIRES ARE TAPED
FAN OUT COIL TO 270° WITH
SPACING 1 CM (0.4 INCH) USING
TAPE TO MAINTAIN COIL SHAPE
TAPE
10.5 CM
(4 INCHES)
Figure 5. Toriod Coil Construction
Table 2. Performance Test Points (5100B Direct)
5100B
SETTINGS
RMS AMPS
MEASURED
LOW LIMIT
OUTPUT mV
HIGH LIMIT
OUTPUT mV
PHASE
SHIFT
0.1A, 50
or 60 Hz
5A 4.45 5.55 -
0.4A, 50
or 60 Hz
20A 19.0 21.0 ±3°
Table 3 Performance Test Points (5100B and 5220A)
5100B
SETTINGS
RMS AMPS
MEASURED
LOW LIMIT
OUTPUT mV
HIGH LIMIT
OUTPUT mV
PHASE
SHIFT
1V 50 or 60 Hz 50A 47.5 52.5 -
1V 400 Hz 50A 45.0 55.0 -
1V 1 kHz 50A 45.0 55.0 -
2V 50 or 60 Hz 100A 98.0 102.0 ±1°
10V 50 or 60 Hz 500A 490.0 510.0 -
