Product Connections
Power and data connections are on the bottom of the
Product and on the rear of the Charge Base. The
Ethernet connection is only available on the base. Table 4
and Figure 2 show you the Product connections.
Table 4. Product Connections
Item Description
 Power Charge LED
 USB Port
 Base Input
 Flash USB drive Port
 Tripod Mount
 DC Power Input
3
2
6
4
5
1
gud001.eps

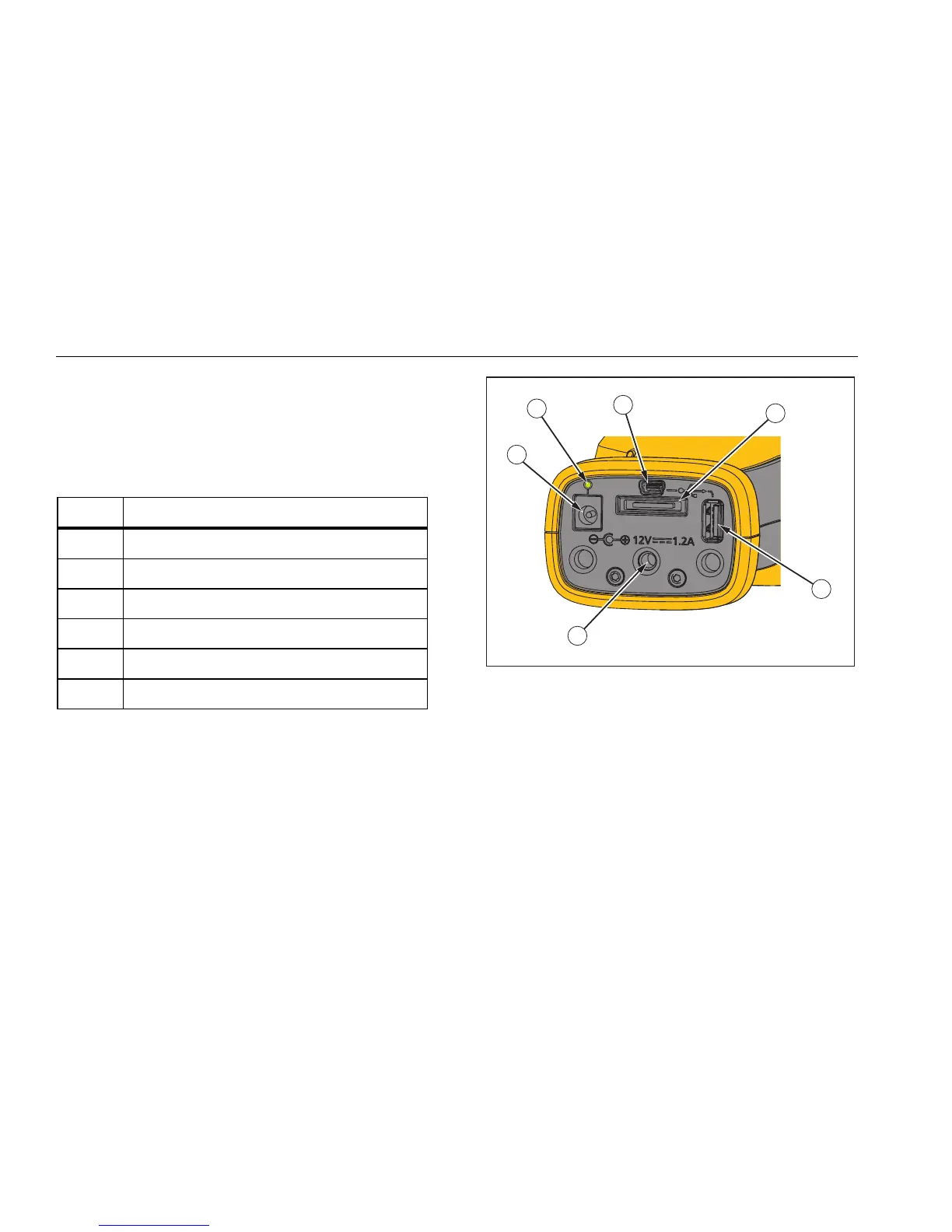

Figure 2. Product Connections
