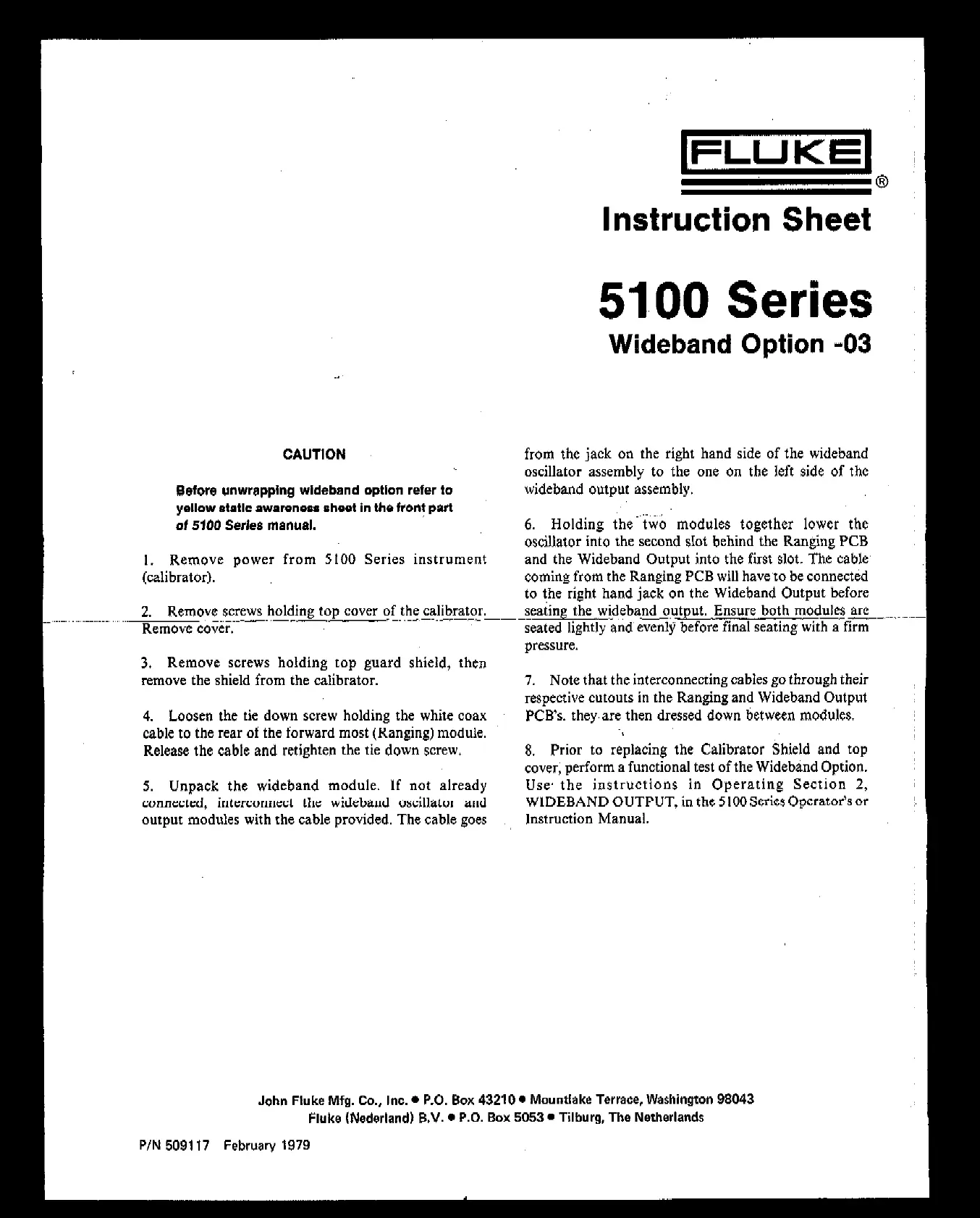

CAUTION
Before unwrapping wldebend option refer to
yellow static awareness sheet in the front parl
of 5100 Series manual.
I. Remove power from 5100 Series instrument
(calibrator).
Instruction Sheet
51,,00 Series
Wideband Option -03
from the jack on the right hand side of the wideband
oscillator assembly to the one on the left side of the
wideband output assembly.
6. Holding the%& modules together lower the
oscillator into the second sIot behind the Ranging PCB
and the Wideband Output into the first slot. The cable,
coming from the Ranging PCB will have’to be connected
to the right hand
iack
on
the
Wideband Output before
2. Remove screws holding top cover of the calibrator.
seating tie wideband ou_tput.Ensure both m&es are ,.._.
Removc cow,
--~--‘----~--~--seated lightl;‘$e~$ before final seating with a-f&i--’
3, Remove screws holding top guard shield, then
remove the shield from the calibrator.
4. Loosen the tie down screw holding the white coax
cable to the rear of the forward most (Ranging) module.
Release the cable and rerighten the tie down screw,
5. Unpack the wideband module. If not
already
connected,
interconnect the wideband oscillator and
output modules with the cable provided. The cable goes
7. Note that the inferconnecting cables go through their
respective cutouts in the Ranging and Wideband Output
PCB’s. they,are then dressed down between modules.
8. Prior to replacing the Calibrator Shield and top
cover; perform a functional test of the Wideband Option.
Use, the instructions in Operating Section 2,
WLDEBAND OUTPUT, in the 5 100 Series
Operator’s or
Instruction Manual.
John Fluke Mfg. Co., Inc. l P.O. Box 43210 l Mountlake Terrace, Washington 98043
Fluke (Nederland) B.V. l P.O. Box 5083 l Tilburg, The Netherlands
P/N 509117 Februan/ 1979
