Fluke CableAnalyzer DSX-5000 User Manual

3. Make Connections and Do a Test

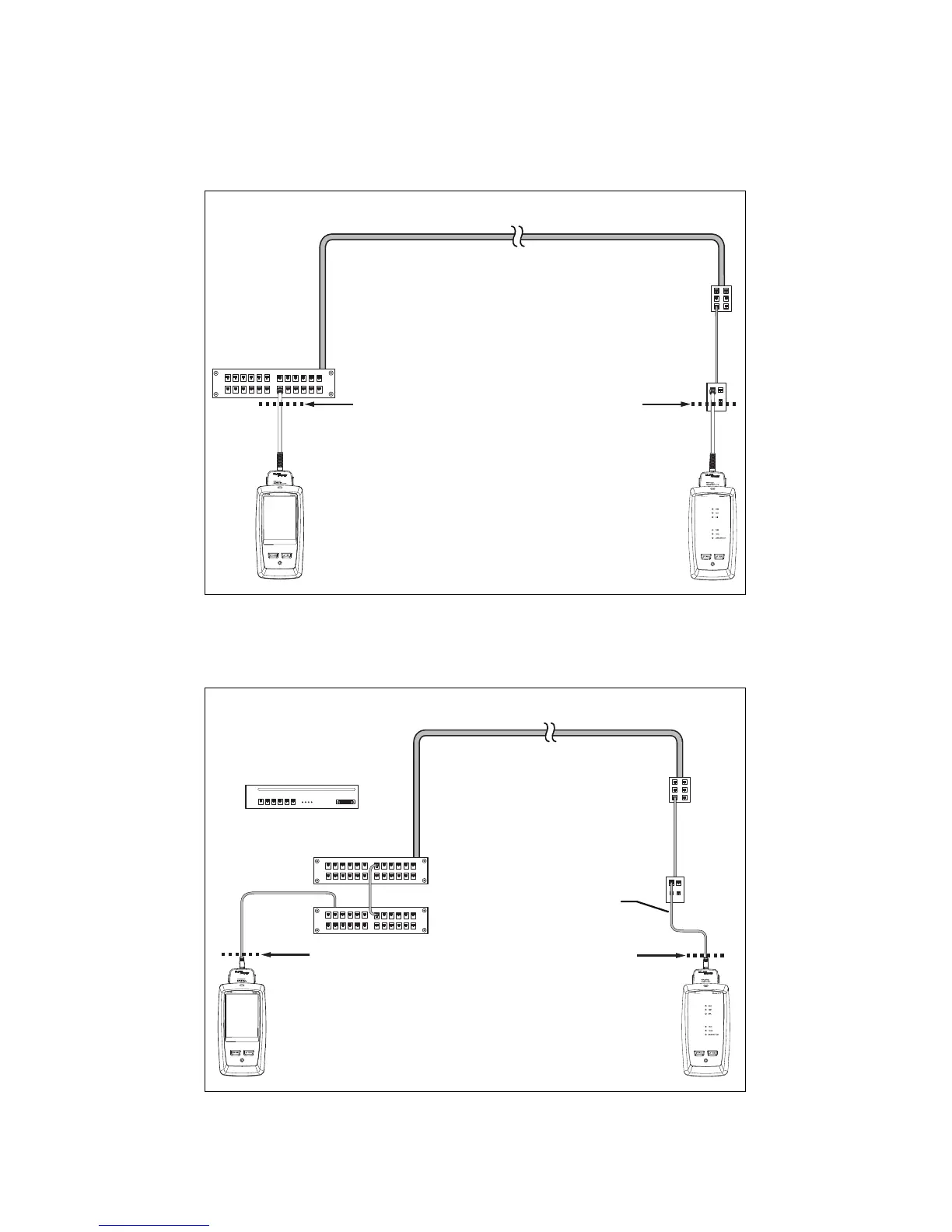

3-1 Connect the testers to the link as shown in Figure 3 or 4.
3-2 Tap TEST on the main tester or press  on the main
or remote tester.
GPU97.EPS
Figure 3. Permanent Link Connections
GPU96.EPS
Figure 4. Channel Connections
Patch
panel
Start permanent
link
End permanent
link
Horizontal cabling
Tester with
permanent link
adapter
Remote with
permanent link
adapter
Wall outlet
Optional
consolidation
point
Patch cord
from hub or
switch
Start channel End channel
Horizontal cabling
Tester with
channel adapter
Remote with
channel adapter
Wall outlet
Optional
consolidation
point
Hub or switch
Patch cord
from PC

Fluke CableAnalyzer DSX-5000 Specifications

General

Category	Measuring Instruments
Model	DSX-5000
Manufacturer	Fluke Networks
Measurement Type	Cable Certification
Test Speed	9 seconds for Cat 6A certification
Battery Life	8 hours
Supported Cable Types	Twisted Pair (Cat 5e, 6, 6A, 8)
Test Standards	TIA, ISO
Display	5.7 inch color LCD with capacitive touchscreen
Battery	Rechargeable lithium-ion
Operating Temperature	0°C to 45°C
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Connectivity	USB, Wi-Fi
Accuracy	Meets or exceeds TIA Level V and IEC Level V accuracy requirements
