i30s/i30 English Instruction Sheet
Page 6
% Error of Reading
2.00
1.50
1.00
0.50
0.00
-0.50
-1.00
-1.50
-2.00
i30s
50 mA
5 10 15 20 25 30
A
% Error of Reading
2.00
1.50
1.00
0.50
0.00
-0.50
-1.00
-1.50
-2.00
i30
50 mA
5 10 15 20 25 30
A
ehr03.eps

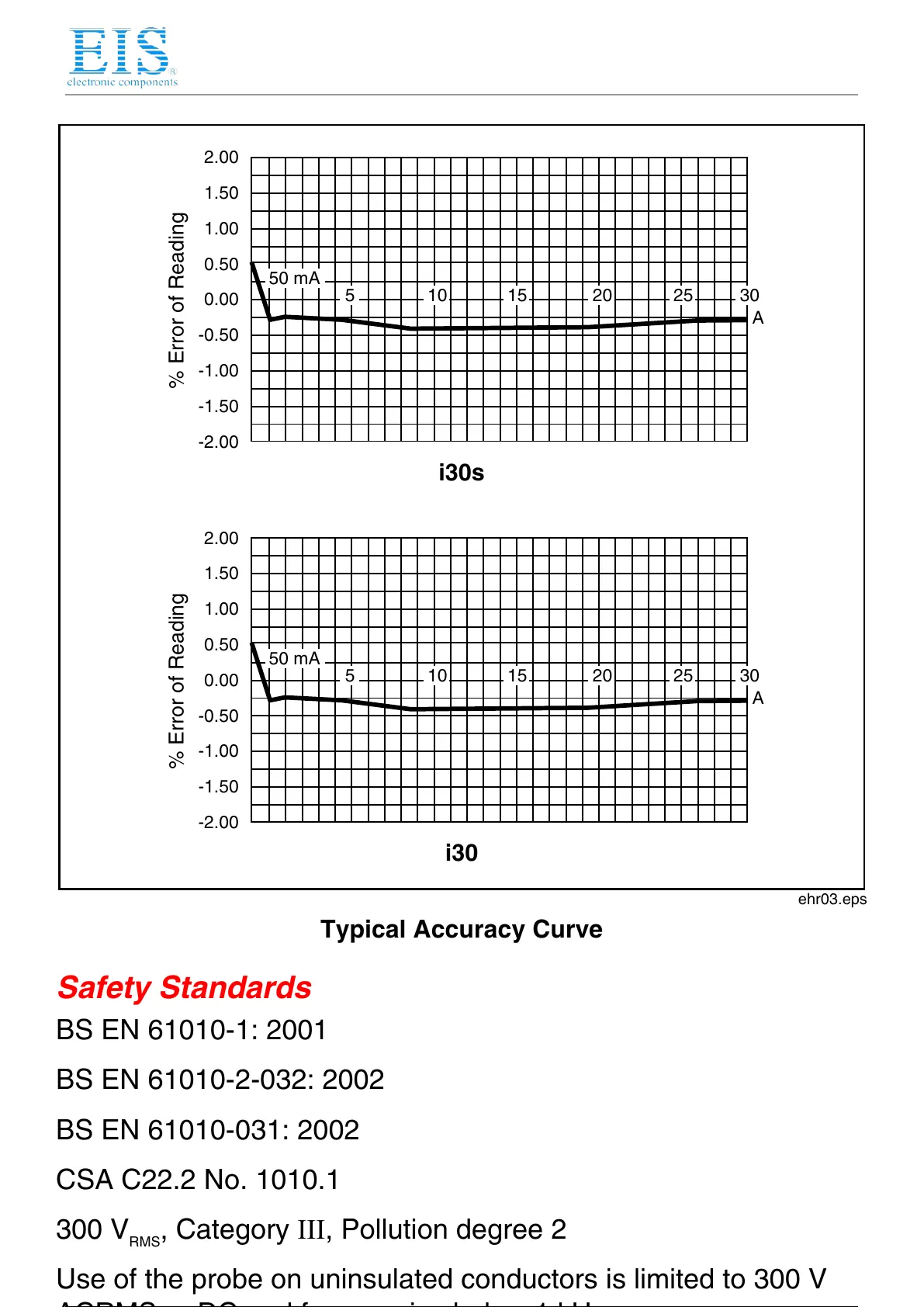

Typical Accuracy Curve
Safety Standards
BS EN 61010-1: 2001
BS EN 61010-2-032: 2002
BS EN 61010-031: 2002
CSA C22.2 No. 1010.1
300 V
RMS
, Category III, Pollution degree 2
Use of the probe on uninsulated conductors is limited to 300 V
ACRMS or DC and frequencies below 1 kHz.
EMC Standards
BS EN 61326: 1998 +A1, A2, and A3.
7 / 11
7 / 11

Fluke i30 Specifications

General

Output Sensitivity	100 mV/A
Battery Type	9 V alkaline
Current Range	30 A AC
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Safety Rating	CAT III 300 V
