How to Use the Toner
1
For unterminated cable, connect the
correct adapter to an ID cap or the toner
cap, then connect the cap to the far end of
the cable.
2
Connect the correct adapter to the main
unit.
3
Turn on the main unit, then connect it to
the near end of the cable.
4

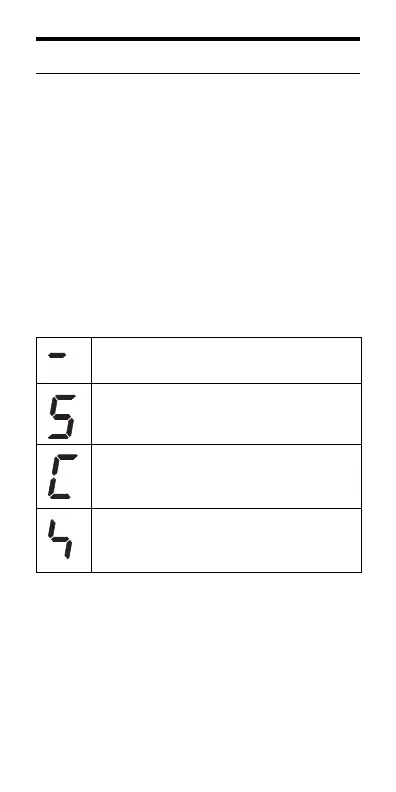

Read the display on the main unit:
Notes
The toner cap emits a loud, steady tone
when there is continuity with the main
unit.
If the condition of the line changes, the
main unit emits a loud, brief tone.
A blinking dash indicates an open
circuit.
A blinking "S" indicates a short
circuit.
A "C" indicates continuity with the
toner cap or a 50
or 75
terminator.
Solid: DC voltage is present (>6 V dc).
Blinking: AC voltage is present
(>6 V ac).
