11
Note: Complete assembly of the bike per the steps below. The stem and handlebar angle can
be adjusted as needed based on rider preference. Always re-tighten bolts to the specified
torque values prior to riding.

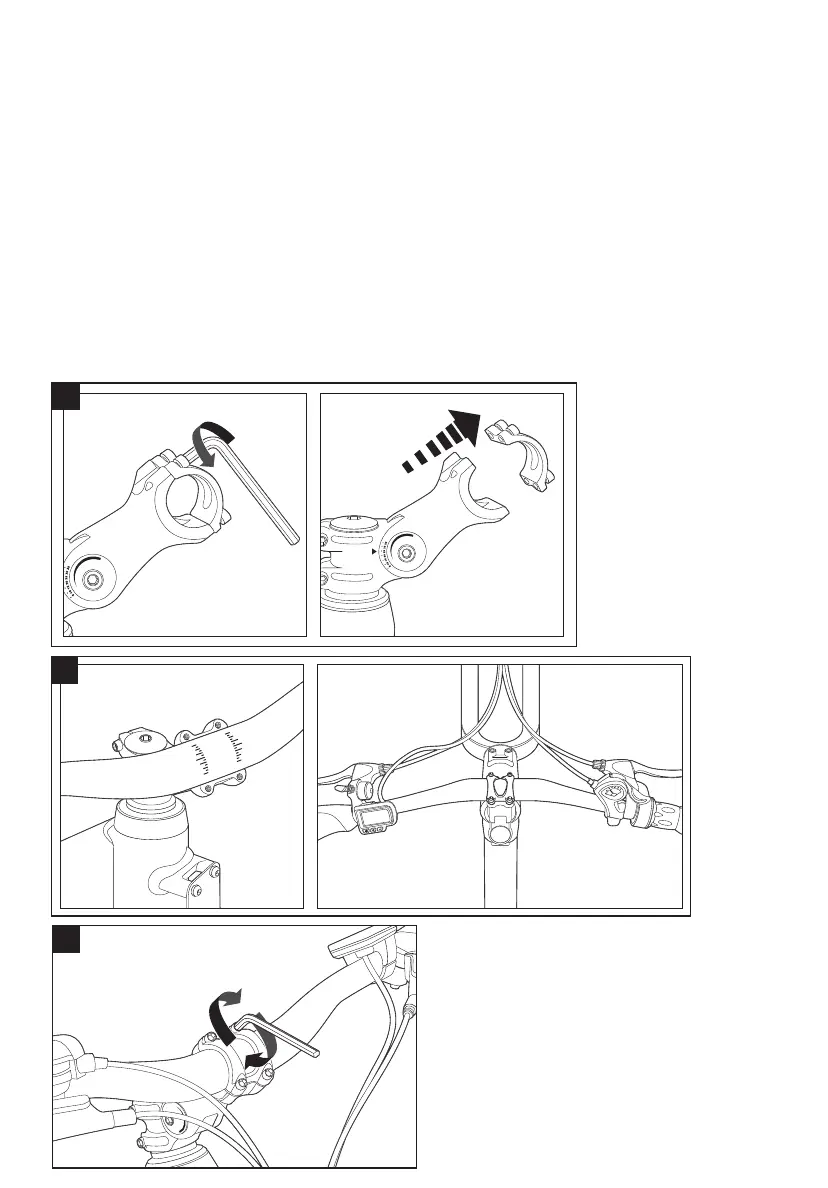

Step 4: Install the handlebar
A. Using the provided 4mm allen wrench, loosen the four bolts and remove the
stem clamp.
B. Align and center the handlebar in the stem using the markings as guides.
Check the handlebar orientation matches the image below and that the cables
are not twisted.
C. Reinstall the stem clamp and four bolts using the 4mm allen wrench. Evenly
tighten the bolts to 6 to 8 Nm using a torque wrench.
B
A
C
