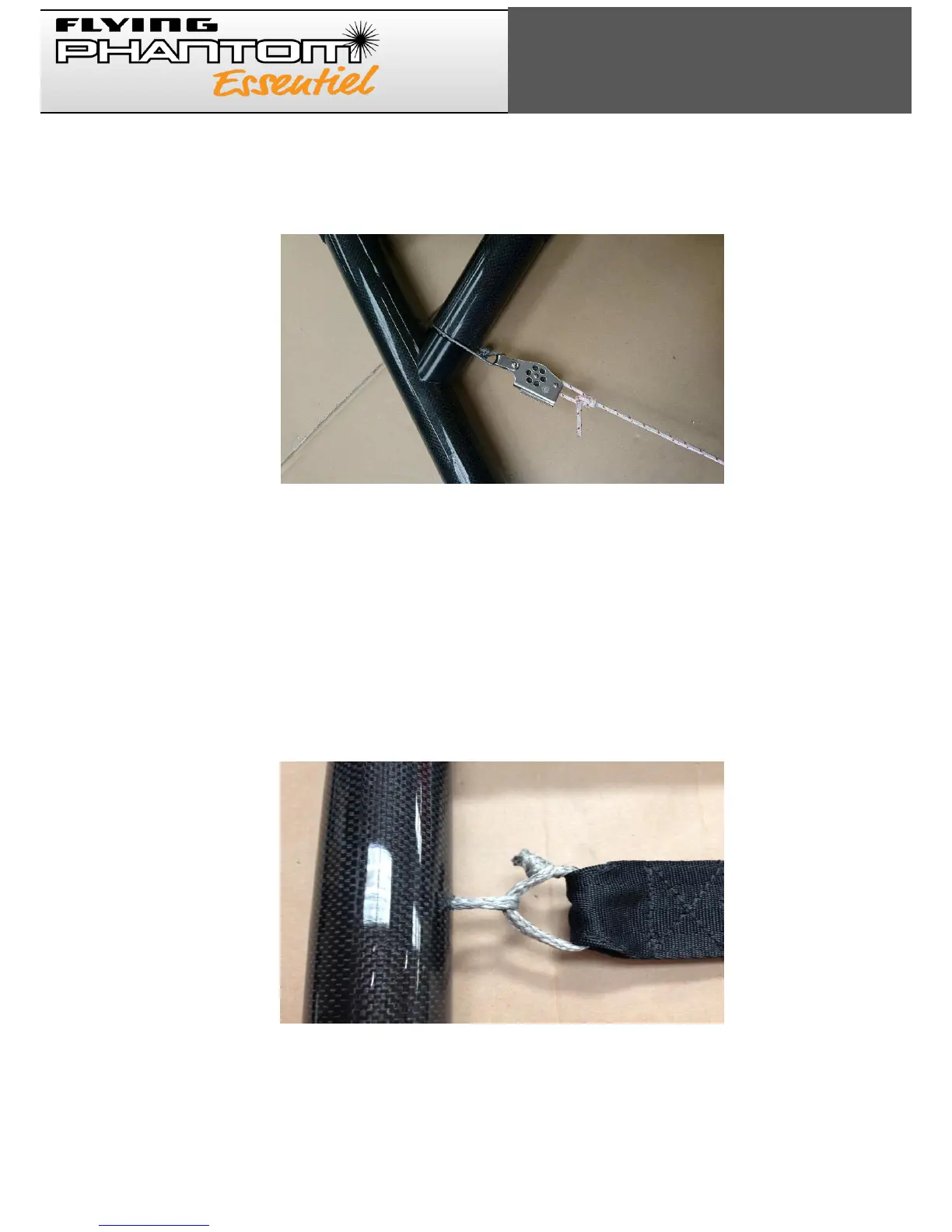

6. Set the Wichard wing locking pulley (RF30224) with the small grey Dyneema rope (Fastening
locking pulley rope W1027). Attach the locking rope to the pulley (W1028)
7. Attach the snap hooks (WD2313) in the two trampoline eyelets with the W1025 strings.
These snap hooks will be used to hang the strings coming out of the forward beams (Mainsail
cunni and jib sheet).
Insert the string into the ring of the textile shackle (W1029) and through the locking pulley to
tauten the wings.
8. To install the hiking straps :
- Start with the strap end that has a textile shackle, and hook it to the loop coming out of the
tube.
