Flyzone Seawind - Install the Receiver

5
❑

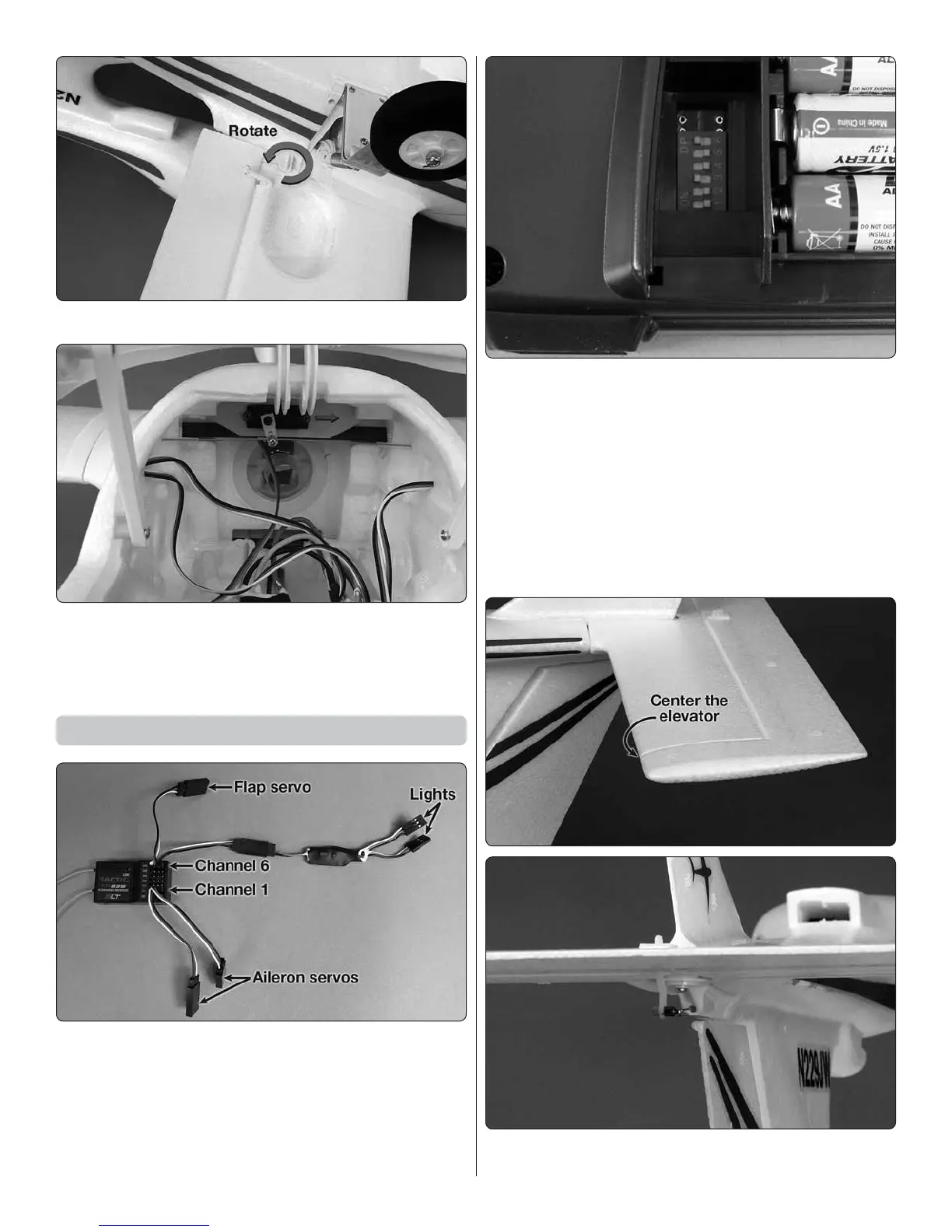

4. Rotate the retainer to lock the wing.
❑
5. Guide the  ap pushrod through the screw-lock
connector.
❑
6. Install the other wing panel following the same
procedure.
Install the Receiver
❑
1. Plug the included Y-harnesses into the aileron and  ap
ports on the receiver (channel 1 and 6 for Tactic/Futaba) .
❑
2. Connect the aileron servo leads to the Y-harness on
channel 1. Plug the rest of the servos into the appropriate
channels for the Tactic TTX610 transmitter.
Elevator: CH2 Rudder: CH4 Flaps and Lights: CH6
Throttle: CH3 Retracts:CH5
❑
3. Set the servo reversing switches on the TTX610,
under the battery cover, as shown. All the switches are
to the right except channels 3 and 6 which are to the left.
❑
4. With the propeller removed, switch on the transmitter
and connect the motor battery to the ESC. Follow the
instructions included with your radio system to bind the
transmitter and receiver. To bind the Tactic system press
and hold the link button on the receiver until the red LED
stays on.
❑
5. Center the elevator trim on the transmitter.
❑
6. Center the elevator and tighten the screw-lock
connector on the elevator pushrod.
