www.fmiproducts.com
56131J 27
bURNER FLAME ADjUSTMENT
Continued

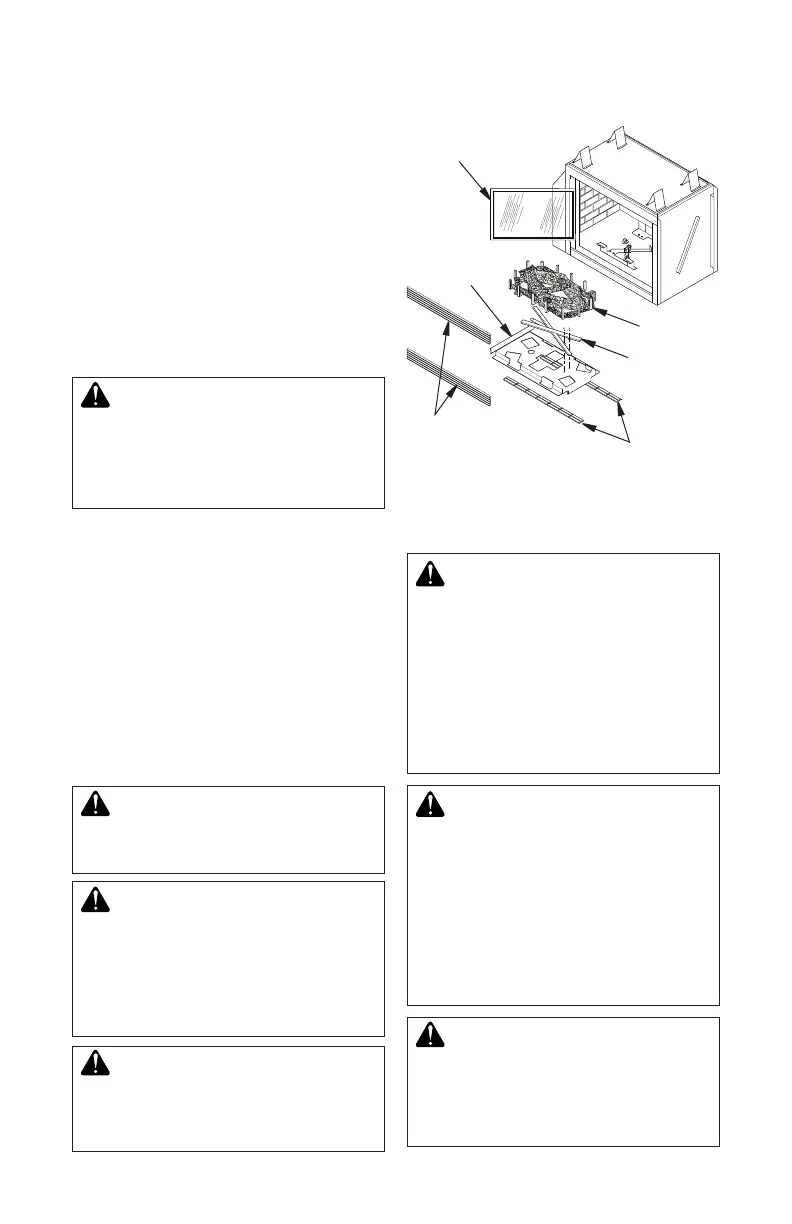

Figure 56 - Burner Removal
2. Carefully remove log set intact and set
aside (see Figure 56, page 27).
3. Remove 2 screws holding burner to hearth
pan.
4. Slide burner forward off orice and turn to
one side to clear opening in hearth pan.
Be careful not to bend or damage pilot or
ignitor element.
5. To reinstall burner, follow reverse steps
making sure air shutter on burner tube is
completely seated over orice mount.
6. Replace log set. Close door and latch.
Reattach screen and louvers.
CAUTION: Make certain ori-
air shutter and that air shutter is
When lit for the rst time, appliance may emit
a slight odor for about 16 - 24 hours. This is
normal and is due to the “curing” of logs and
“burn-in” of internal paints and lubricants used
in the manufacturing process. Keep compart-
ments, logs, burners, and area surrounding
logs clean by vacuuming or brushing at least
twice a year. Temporary removal of log set
may ease cleaning of burner and pilot as-
sembly. In cleaning, take care not to alter pilot
or burner location. Be sure appliance is cool
before each maintenance session.
WARNING: Make certain
Glass Door
Refractories
Grate and
Logs
Burner
Hearth Pan
Louver
Assembly
WARNING: Children and
-
when they are in the same room
vent system at the start of each
-
tion which may hinder its normal
-
OPERATING GUIDELINES AND MAINTENANCE
