OPERATION
CLEANING AND REPLACING
GLASS DOOR
Note: Before proceeding, make sure unit is
completely cool.
1. Remove top and bottom louvers and
screen assembly. Undo 4 latches and
open glass door. The procedure is the
same for end louver panel but entire frame
must be removed as one assembly.
2. To clean glass door, DO NOT remove
glass from frame. Use any glass cleaner
to clean glass. Do not use abrasive clean-
ers as this may damage glass.
3. If replacement is necessary, entire assem-
bly (frame and glass) must be replaced.
OPERATING GUIDELINES AND MAINTENANCE
Continued

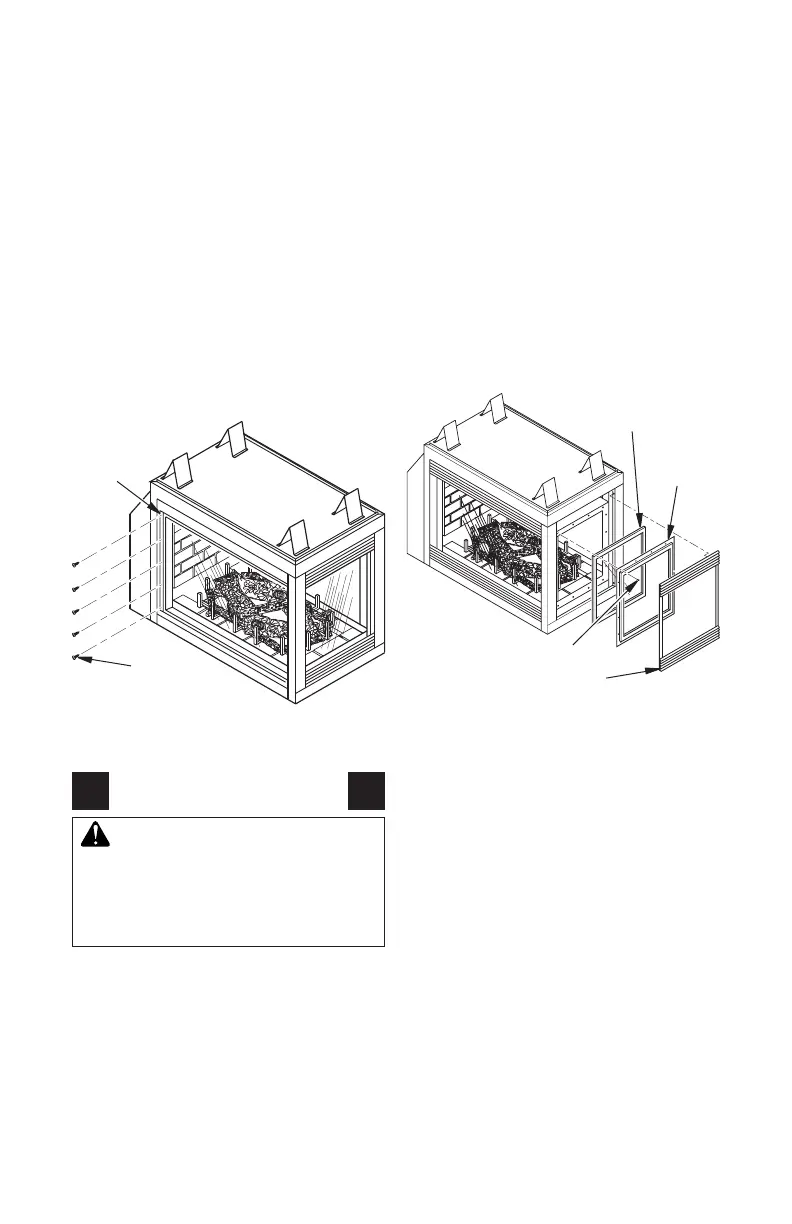

Figure 57 - Removing Glass Door
Figure 58 - End Panel Replacement
Glass
Assembly
Frame
Assembly
Louver Assembly
Retainer Screws
Screws
Hinge
If glass is broken, wear gloves and tape
remaining fragments onto frame. Remove
5 screws located on end of rebox while
holding frame assembly to prevent it from
falling and causing injury (see Figure 57).
Mount new frame at hinge with 5 new
screws. Close and latch door. This will
seat gasket. If replacing end glass panel,
remove 16 screws around frame (see
Figure 58). To insure proper t, when in-
stalling new glass panels make sure seam
in gasket is placed in the down position.
4. Replace screen assembly and top and
bottom louvers.
