10
11
4.
LAN
connecting sockets
RJ45
/ standard Ethernet connection for computer or network
devices with 10/100BaseT

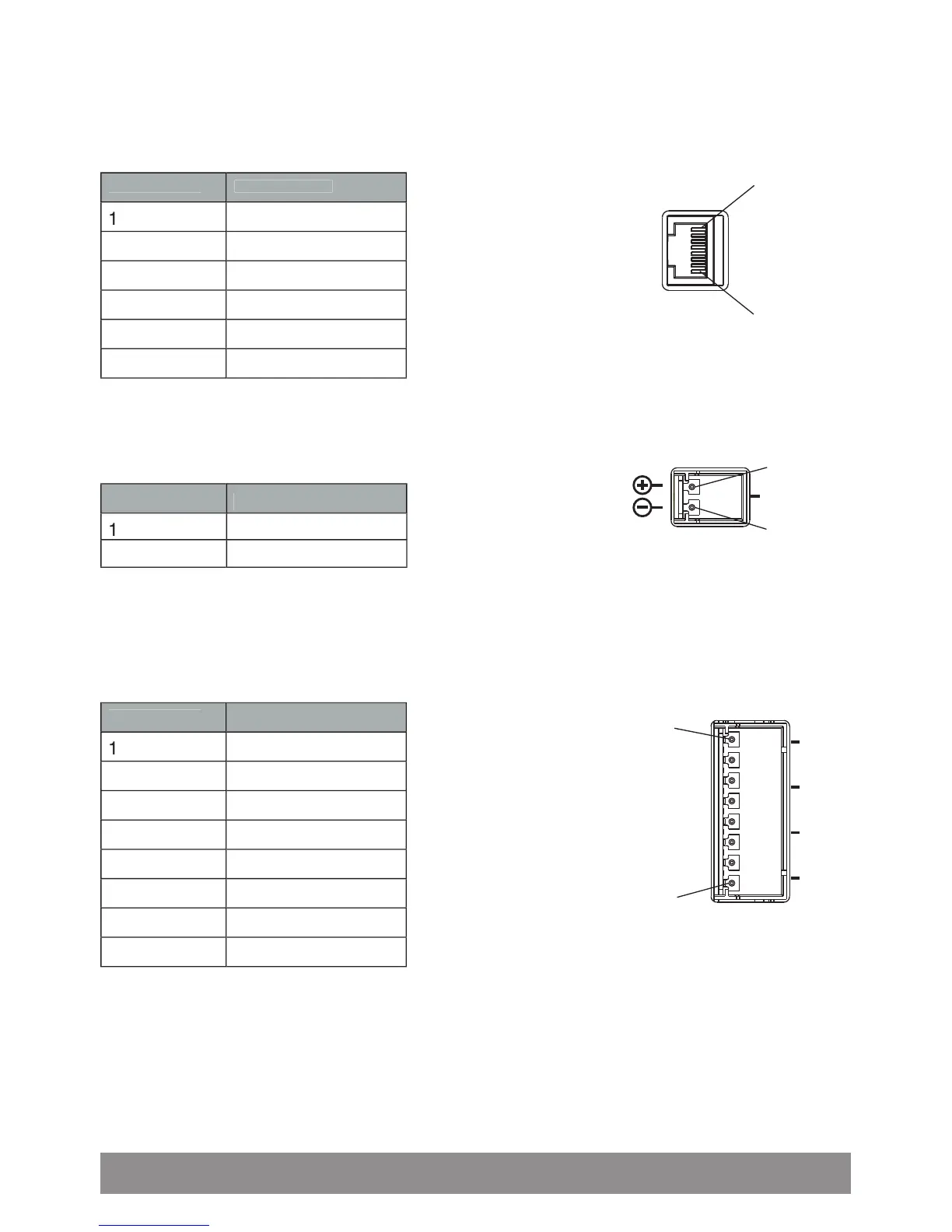

Assignment of the LAN connecting sockets A and B:
PIN 8
PIN 1
Contact PIN
LAN A and B
1
TX+
(Transmit +)
2
TX-
(Transmit -)
3
RX +
(Receive +)
4,5
not used
6
RX –
(Receive -)
7,8
not used
5.
Power
connecting socket for power supply
Assignment of the Power connecting socket:



 

Contact PIN
Assigned with
1
+ 10 ... 60 V
2
0 V (GND)
6.
I/O Ports
for the connection of external switching inputs and outputs
Assignment of the I/O Ports:








Contact PIN
Assigned with
1
In 2
2
In 2
3
In 1
4
In 1
5
Out 2
6
Out 2
7
Out 1
8
Out 1
Output:
max. 160V; 0,12A; RDS on = max. 26 Ohm
Input:
current rating of make contacts
≤ 5 mA;
admissible loop resistance < 100 Ohm
Connection alpha LTE/UMTS 4/EDGE HS
