Model assembly
EN

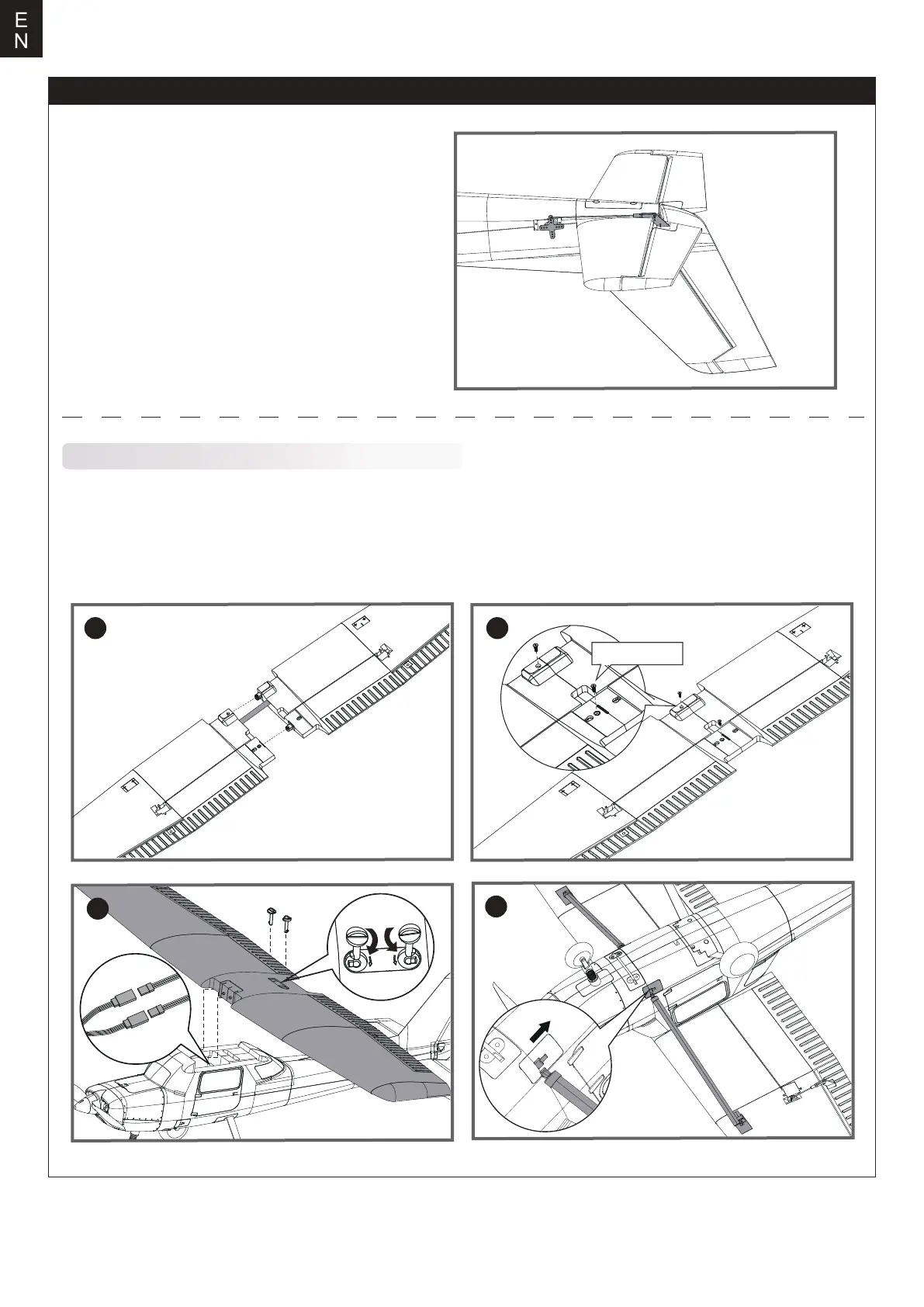

1. Connect the left wing halve with right wing halve as shown.
2. Secure the two wing halves in place using the included screws.
3. Connect the ailerons servo wires to their respective ports then attach the wing onto the fuselage.Secure the wing onto
the fuselage with the quick release bolts.
4. Connect the wing struts to the fuselage- Slide the root of the strut into its slot then push aft to lock.
1 2
4
HKM 3.0*10
Main wing installation
2. With the servo centered, install and adjust the pushrod
and clevises. Connect the linkage rod to the outermost hole
on the control horn.
