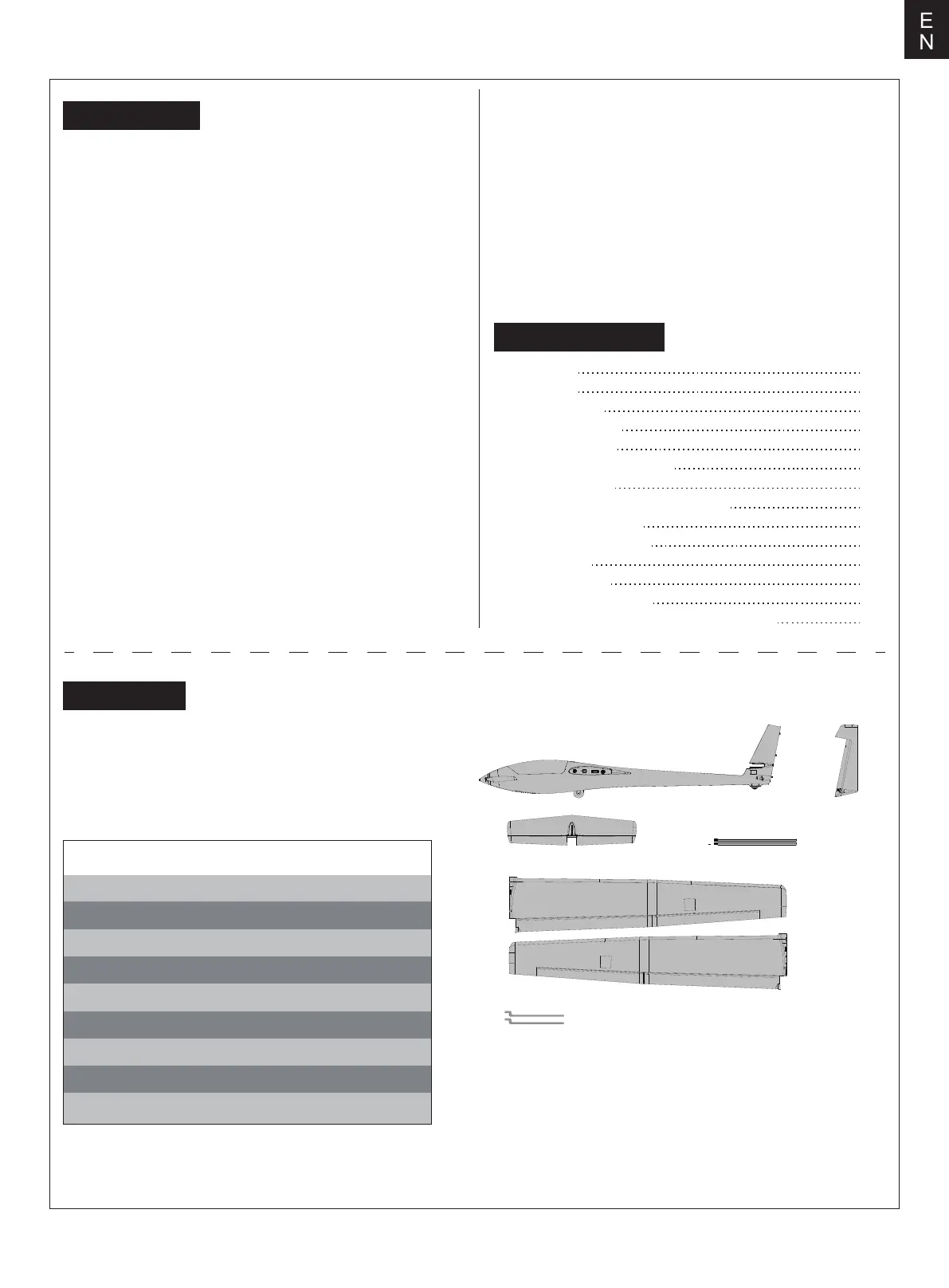

Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or
part number (refer to the spare parts list near the end of the
manual) then contact your local shop or email us: support
Kit contents
Table of contents
Introduction
Wingspan: 2500mm /98.4 in
Overall Length: 1390mm /54.7 in
Flying Weight: 2350g
Motor Size: 3541 KV750
Wing Load: 45.7g/dm² (0.09oz/in²)
Wing Area: 50.3 dm² (779.5 sq.in)
ESC: 40A
Servo: 17g*4pcs, 9g*2pcs
Recommended Battery: 14.8V 2200mAh-2600mAh 35c
Specifications
EN
@fmsmodel.com.
A:Fuselage C:Horizontal stabilizer E:Wing halves
B:Rudder D:Wing spar joiner F:Pushrods
F.
C.
D.
E.
Features：
• Predator 3541 motor and 40A ESC
• Snap together assembly, no glue necessary
• Two piece wing
• Functional flaps
• Fold away high efficiency propeller
• Made of highly durable EPO
FMS is proud to announce the brand-new 2500mm ASW-17!
True to the FMS spirit, no detail was overlooked in the design of
the ASW-17. The FMS engineers made 4 expensive tooling
adjustments just to micro-adjust the airfoil for perfect efficiency.
The wing, vertical and horizontal stabilizers are designed with a
snap-together structure. With a simple snap, the surfaces attach
to the fuselage with pinpoint precision- no screws or glue neces-
sary! Build the aircraft in as little as 3 minutes!
Like the 3000mm Fox, the ASW-17 has a pre-installed carbon
fiber spar that ensures wing rigidity in high-G maneuvers.
To achieve the same dihedral as the real aircraft, the ASW-17
was designed with a specialized CNC aluminum spar joiner-
allowing the aircraft to maintain its wing geometry during
demanding flight routines.
Performance-wise, a high-quality Hobbywing 40A ESC paired
with a Predator 3541-750KV motor provides ample power with a
4S pack to perform most aerobatic maneuvers.
If efficiency, stability and aerobatic capabilities are what you
seek in a glider, look no further than the FMS 2500mm ASW-17!
Introduction
Kit contents
Model assembly
Battery installation
Receiver diagram
Get your model ready to fly
Clevis installation
Control horn and servo arm settings
Center of gravity(CG)
Before flying the model
Flying course
Troubleshooting
Spare parts list content
3
3
4
6
6
6
8
8
8
9
9
10
10
User Manual of Brushless Speed Controller 11
