Model assembly
EN
Installation of the vertical and horizontal stabilizers
Installation of the pushrods

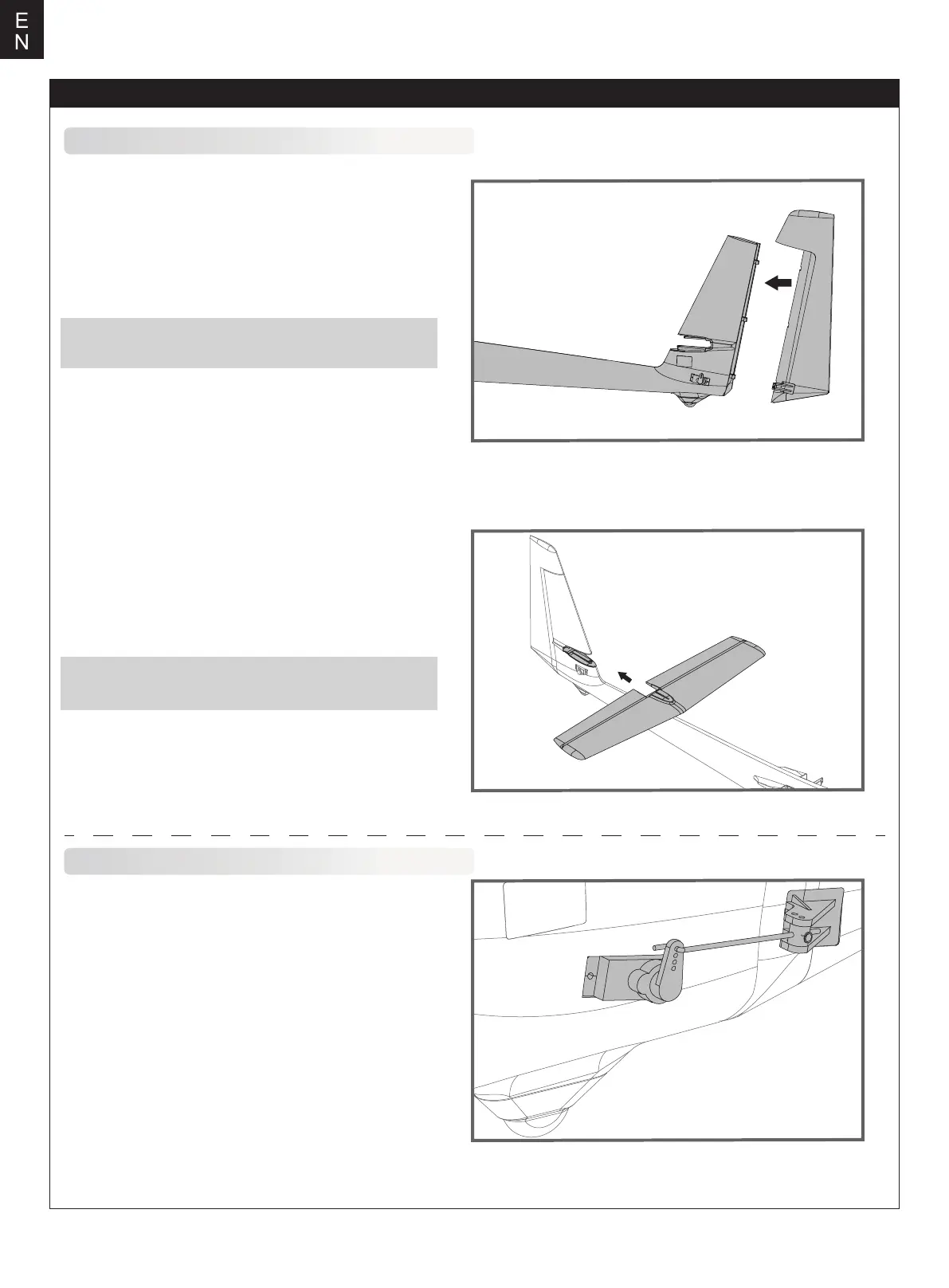

1.The rudder snaps on to the vertical stabilizer with an
audible “click”.
2.Slide the horizontal stabilizer onto the vertical stabi-
lizer.
1.With the rudder servo at its neutral position, connect
the pushrod to the rudder and secure using a hex-key.
NOTE: Gently pull on the rudder to ensure that the
control surface has been properly installed.
NOTE: Gently pull on the horizontal stabilizer to
ensure that the stabilizer has been properly installed.
