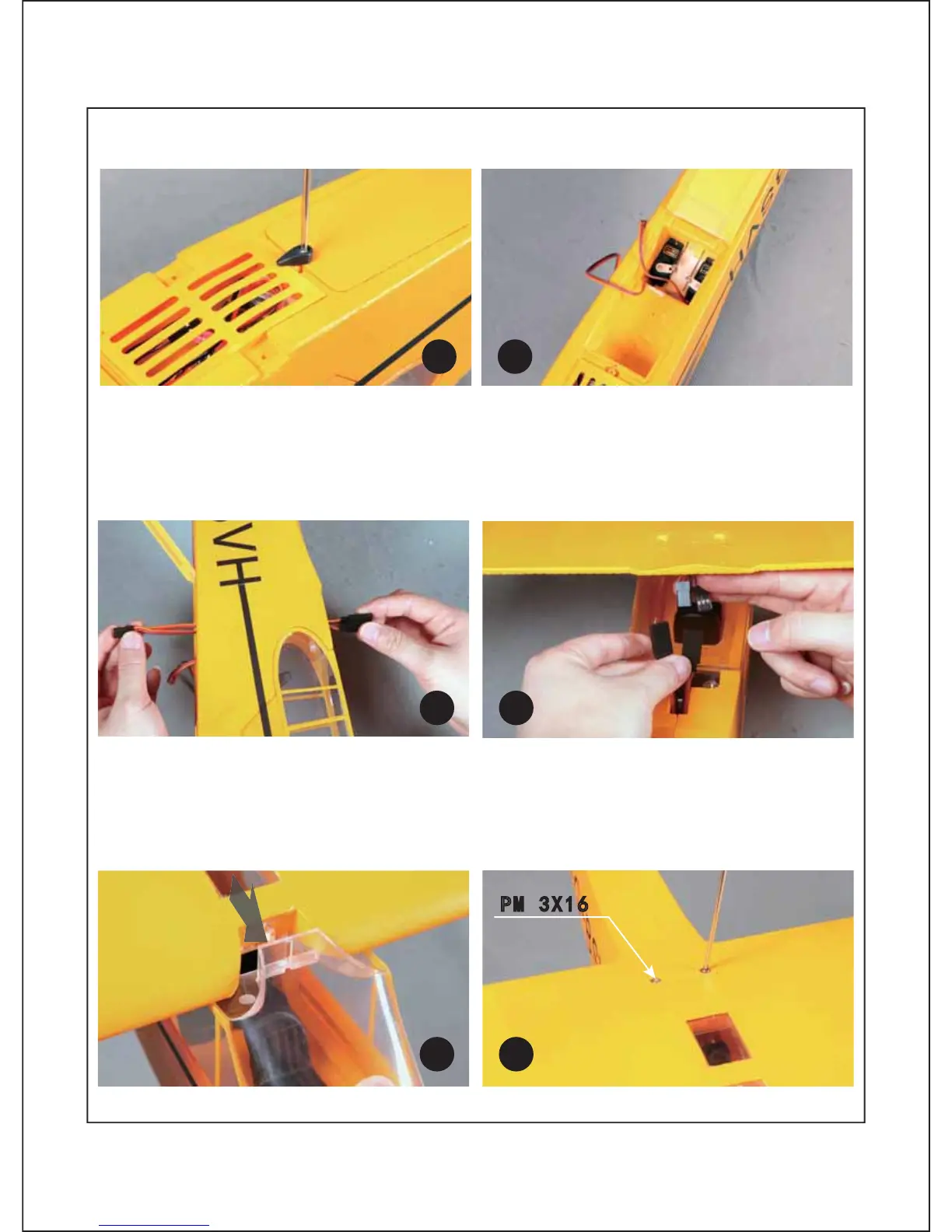

11.Open the electronics hatch by loosening the screw shown on the picture below (fig. 17-18)
14.Attach the wing to the fuselage by sliding the wing into the top of the clear plastic windshield.
(fig.21)
15.Attach the wing-bolt to the top of the fuselage. (fig.22) (PM3x16/2pcs)
12.Route the Y-harness into the electronics hatch (Sequence: CH1-Aileron, CH2-Elevator,
CH3-Throttle, CH4- Rudder); secure the electronics bay by tightening the screw (fig.19)
13.Connect the Y-harness with the 2 aileron servo leads on the wing.(fig.20)
