8.0 INSTALLATION WALL MOUNTED - CONTINUED
GB IE
7
© 2015 Focal Point Fires plc.

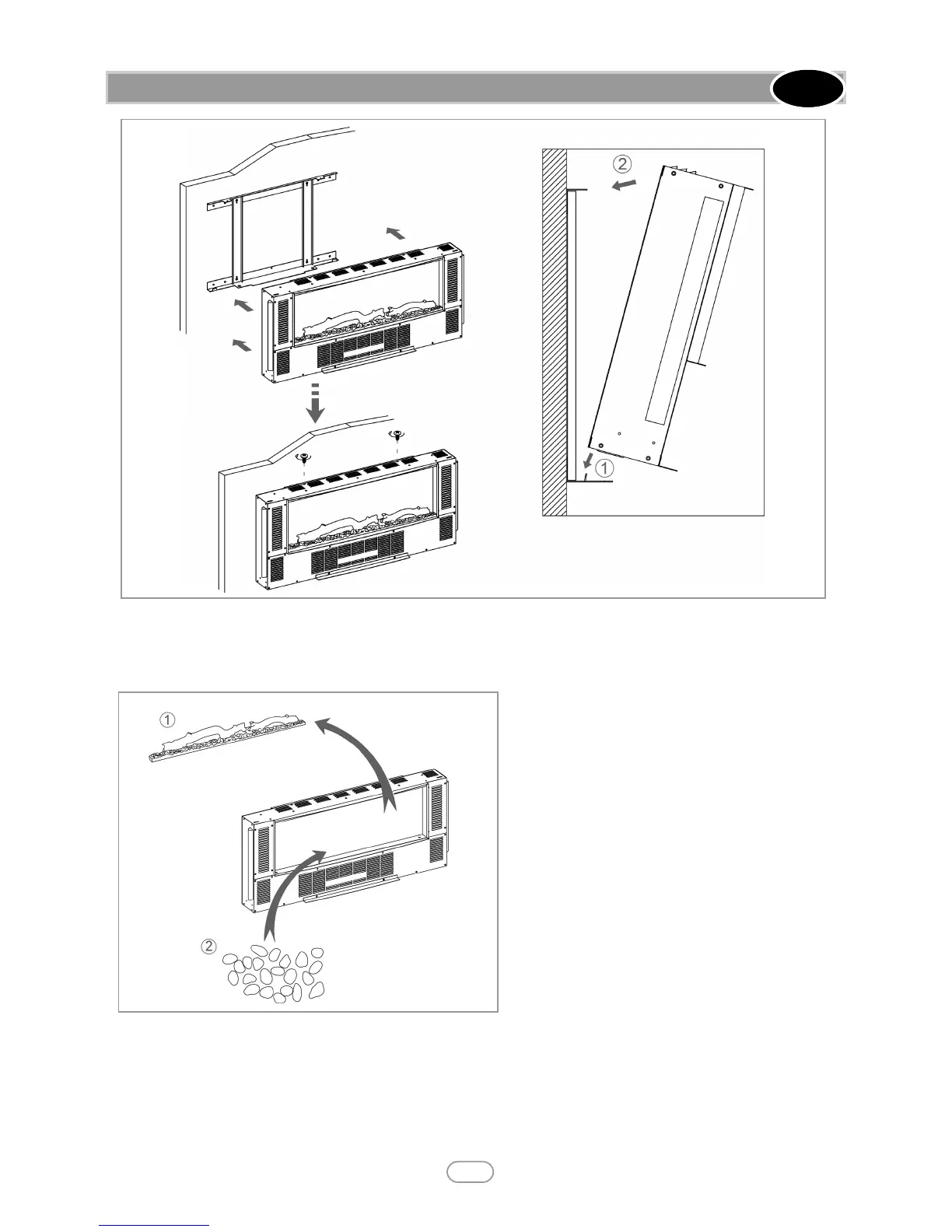

8. Hang the Firebox on the hooks at the bottom of the Mounting Bracket , and push the top of the Firebox into the
Mounting Bracket. As shown.
9. Ask a friend to hold the Electric Firebox into place and secure it to the Mounting Bracket by refitting the two small screws
which were removed in step 2. As shown.
NOTE: We provided the optional pebbles for the
fuel bed holder. To change the fuel bed follow the
following steps below.
10. Remove the Log Set from the insert window
ledge at the front of the Firebox. As shown.
11. Arrange the pebbles on top of the fuel bed holder.
