COALS AND CERAMICS - Remove the firefront and place to one side. Remove the ceram-
ic components. Gently clean in the open air. Be careful not to create dust from the coals.
Where necessary replace damaged components with genuine spares. Seal scrap compo-
nents in plastic bags and dispose of at proper refuse sites as directed.
Handset - Remove cover from rear of handset and insert 1 x ‘PP3’ (9 volt) battery - Replace
cover
Appliance - Ensure appliance is off and cool. Remove cover from top of receiver box. The cover is protected by reflective foil, and
located towards the right hand side, underneath the burner unit. Insert 4 x ‘AA’ (1.5 volt) batteries - Replace cover.
Slide control models
Appliance - Ensure appliance is off and cool. The battery in the top of the ignition unit, on the
left hand side of the burner. Insert 1 x ‘PP3’ (9 volt) battery.
7
© 2013 Focal Point Fires plc.
11.0 LIST OF REPLACEMENT PARTS
Figure 24
Item Part number
Pack of 16 coals F550038
Pack of 16 pebbles F550050
Pack of 9 ceramic logs F550084
Front ceramic strip - coal F780008
Front ceramic strip - pebble F780017
Front ceramic strip - Log F780050
Ceramic combustion matrix - coal F780007
Ceramic combustion matrix - pebble F780016
Ceramic combustion matrix - Log F780051
Ceramic pad set (includes rear pad and side pads) - Radiant models F550049
Oxypilot 9081 - All models F730006
Gas valve - manual control models F730085
Gas valve - slide control models F730067
Gas valve - remote control models F730011
Injector - stereo 76 - manual control models F730091
Injector - stereo 81 - Remote control models F730046
Injector - stereo 82 - slide control models F730077
Burner assembly - complete - manual control TRAYEXCELC
Burner assembly - complete - slide control TRAY087
Burner assembly - complete - remote control TRAY017

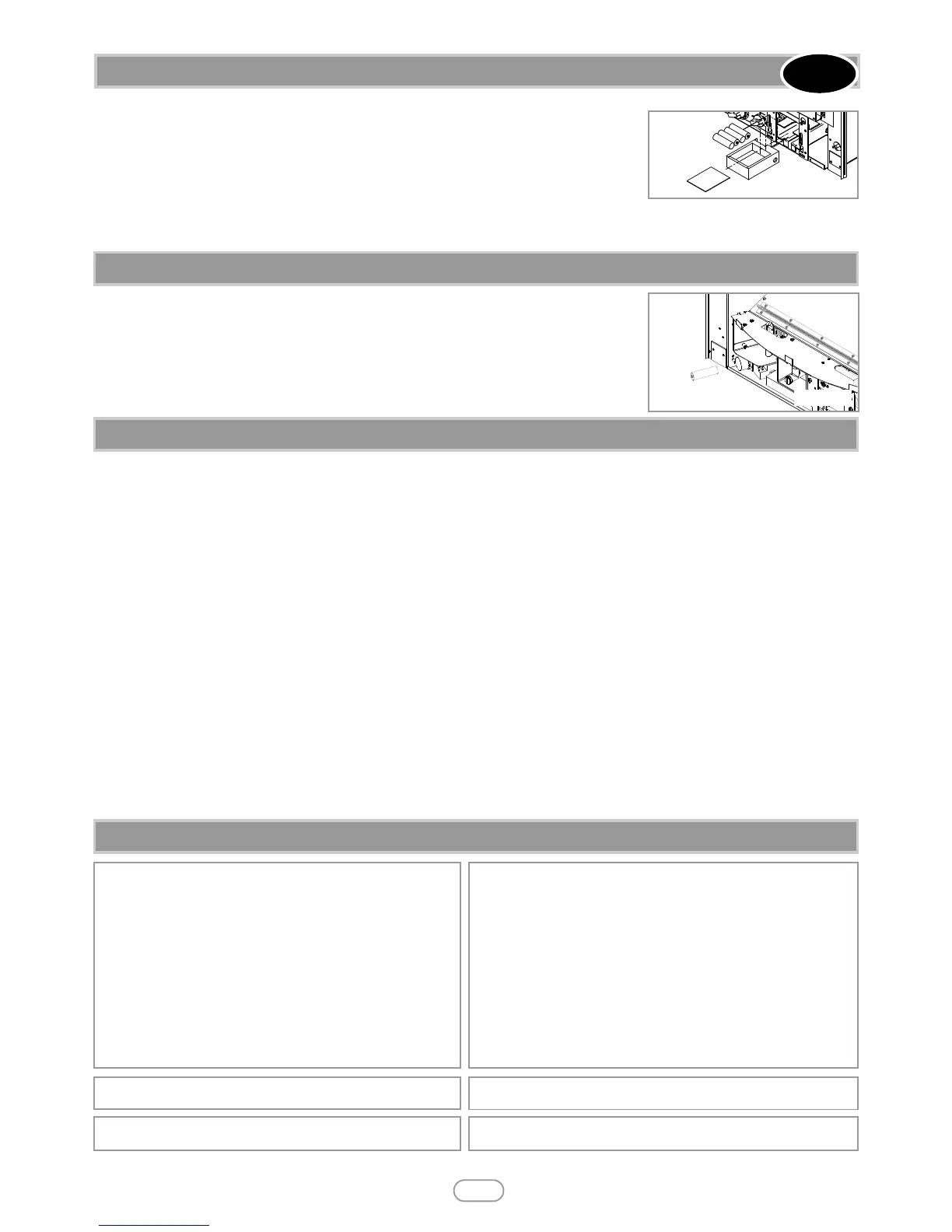

10.0 REPLACING THE BATTERIES (REMOTE CONTROL VERSIONS)
10.1 REPLACING THE BATTERIES (SLIDE CONTROL VERSIONS)
Figure 25
GB IE
12.0 INSTALLATION DETAILS
Installer GAS SAFE registration No :
Model :
Fire serial No. :
Name & contact details of installer :
Supplied by :
Date installed :
