3. Installation
DIMENSION

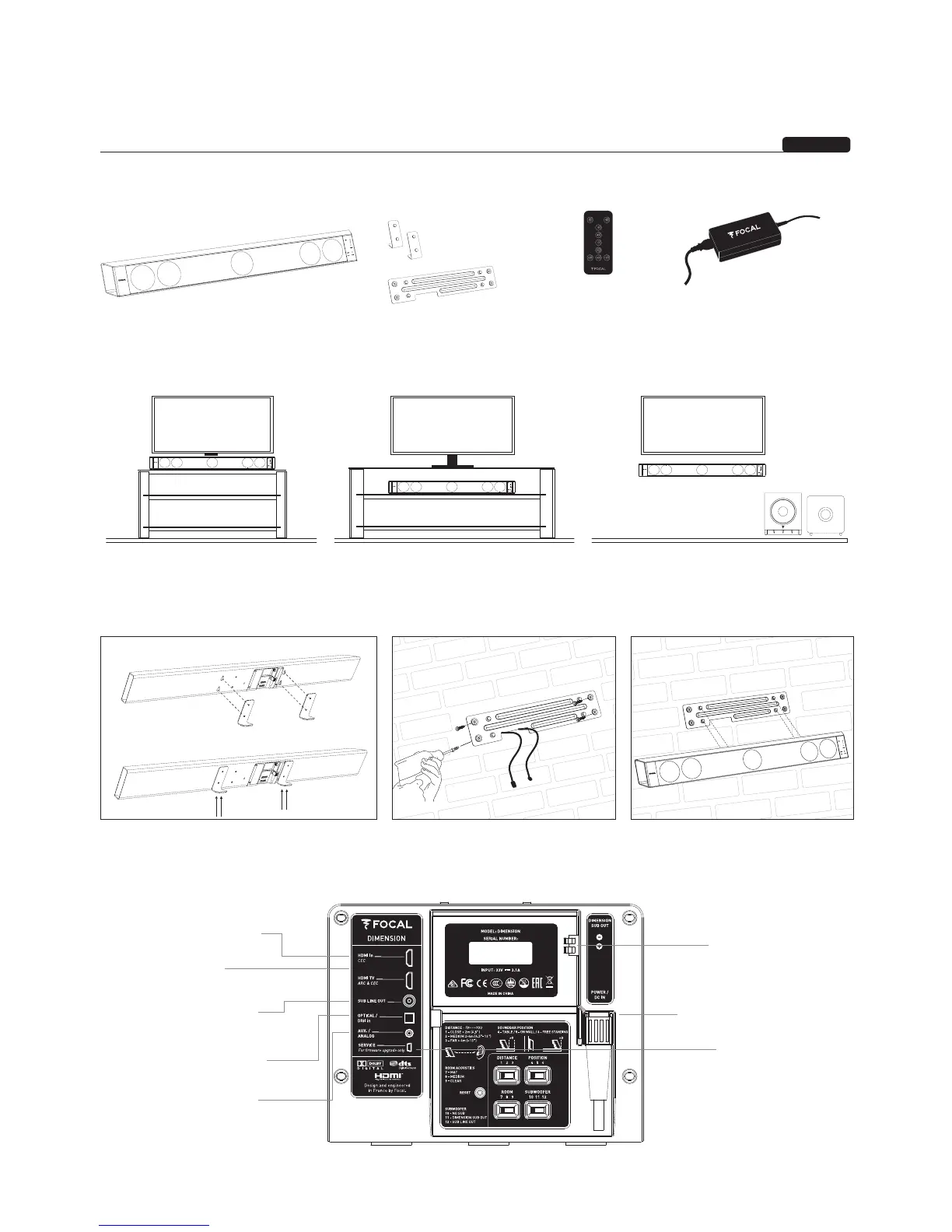

Quick installation guide
1. Package contents
1 x Power supply
1 x Mains power cable
1 x Dimension soundbar
1 x Wall mounting
2 x table stands
1 x Remote control
With Dimension Sub Without Dimension Sub Wall mounted, standalone or with an
active sub-woofer
2. How to use
Placed on furniture
Mounted on a wall
Terminal block:
Dimension Sub**
HDMI CEC
to audio/video source
HDMI ARC / CEC
to television
RCA to Sub Air or Cub
3**
subwoofer
Video: television or other
AV source
Mini jack: Smartphone /
computer / APTX Bluetooth
module
Mini USB: This port
is only used by Focal
after-sales services when
a system update
is required.
Power supply
*If you have more than one HDMI source, we recommend routing via an HDMI switch or your television.
**Depending on your country, the sub-woofer may be optional or supplied as standard.
English
4. Wiring
