FocalPoint Purist - Fitting the Decorative Frame Assembly; Briefing the Customer

FITTING THE DECORATIVE FRAME ASSEMBLY
Remove any protective packaging, and remove any protective film that may be present on the frame.

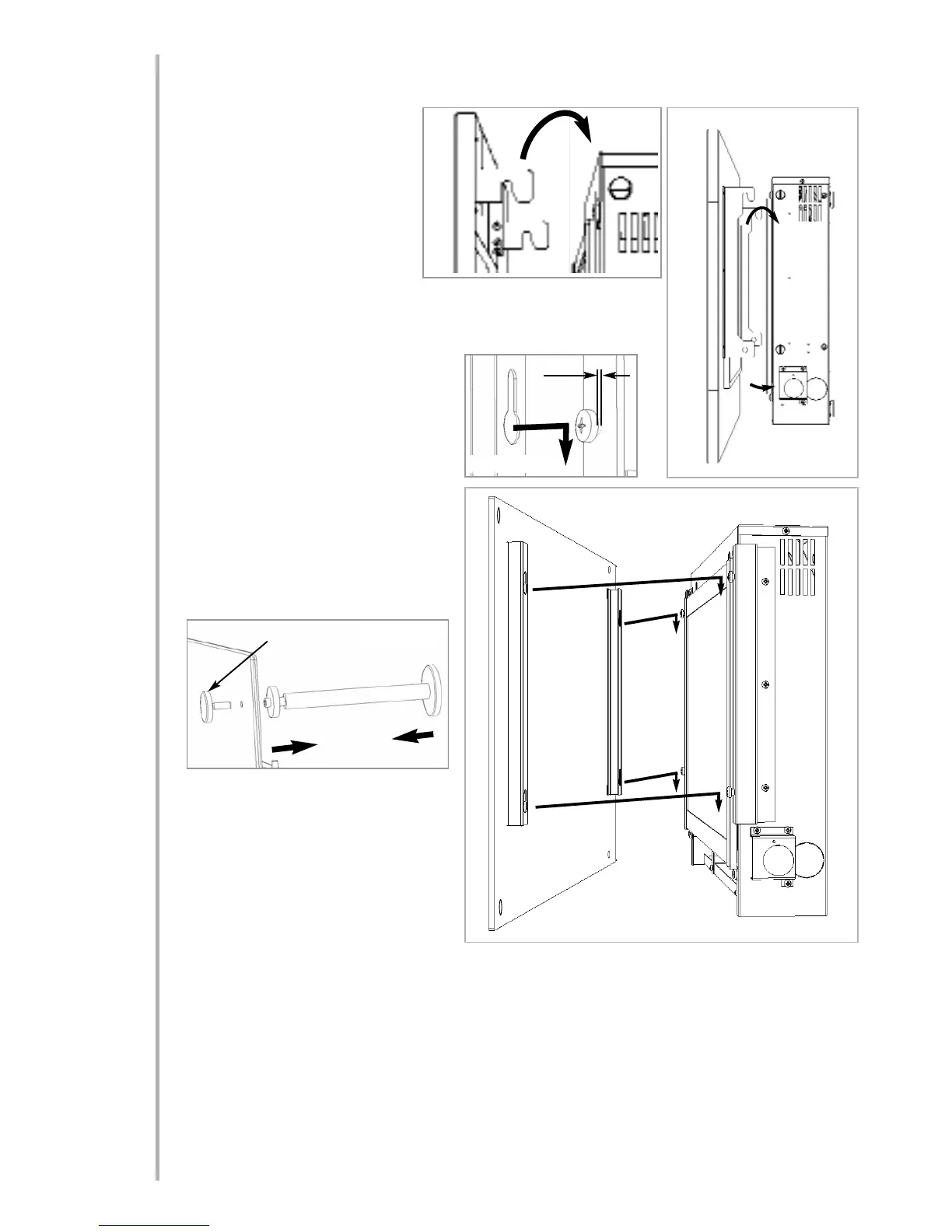

Purist & Serif models: The frame is
hung onto the firebox via the two
upper hanging brackets and then
secured to the firebox via the two
lower knurled fixing bolts, which are
inserted through the holes in the lower
frame mounting brackets after the
frame is in position. See diagrams to
the right and below.
Florence & Oxford models: Remove the glass facia panel from any protective
packaging. The glass facia panel is supported by four M6 screws which pro-
trude from the front of the outer casing.
Ensure each screw is unscrewed approxi-
mately one turn from the fully screwed in
position in order to create a 2mm gap
(shown). Simply hang the facia panel onto
the outer casing ensuring that the correspon-
ding keyhole shaped holes engage the screw-
heads fully.
Florence models only: To fit the decorative
corner columns, ensure the main glass facia
is mounted in position. Remove any transit
tape and unscrew the front clamping disc
and remove. Compress the column assem-
bly and position behind the glass panel, lining
up with the appropriate hole. Release the
assembly when in position and secure in
place by refitting the front clamping disc.
BRIEFING THE CUSTOMER
All instructions must be handed to the user
for safekeeping. Show the customer how to
light and control the fire. After commission-
ing the appliance, the customer should be
instructed on the safe use of the appliance
and the need for regular servicing.
Frequency of service depends on usage, but
MUST be carried out at least once annually.
Advise that cleaning of the fire maybe achieved when the fire is cold using a damp cloth and mild detergent on
most surfaces. Advise that the fire will emit a "newness" smell for a time after initial commissioning and that extra
ventilation may be needed during this time. Recommend that a guard be used for the protection of the young,
pets, the elderly and the infirm
SERVICING
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service.
A suggested procedure for servicing is detailed below.
1. Lay out the dustsheet and tools.
2. Remove the decorative frame/glass facia assembly. Removal is reverse of section 8.4.
3. Remove the glass door assembly (4 screws) and clean carefully.
7
8.4
10.0
9.0
Purist & Serif models
2mm
Florence models
Florence & Oxford models
Compress the
assembly
Front clamping disc
Florence models
