Focus ERGOFOCUS - Installation; Included Parts, Materials and Required Tools for Installation; Options; Assembly Details

8
Installation
INCLUDED PARTS, MATERIALS AND REQUIRED TOOLS FOR INSTALLATION
• Appliance and designated parts are the fire box, anchor plate, steel flue pipe, focus kit (protective glove, mounting
gloves, can of touch-up paint, ash removal hatch), and insulating washers.
• Required tools: drill, M8 allen key, level, screwdrivers, M12 key, scaffolding (up to underceiling height), refractory compound.
• 2 persons minimum are required for installation.
OPTIONS
• Custom ceiling cover disc (steel disc)
• Custom anchor steel plate (inclined...)
• Focus steel flue extension
• Adjustable suspension plate
• Rotation restrictor

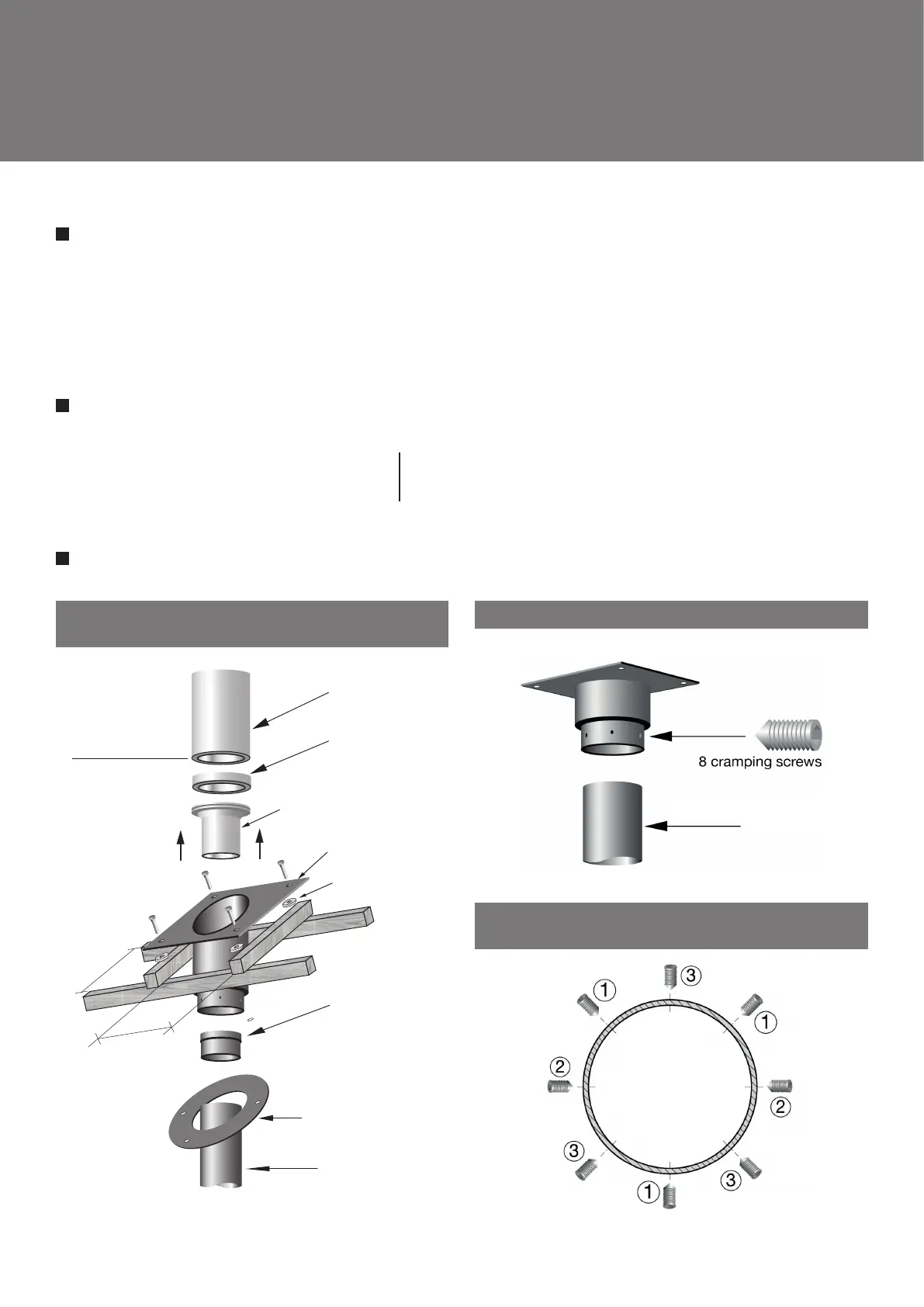

ASSEMBLY DETAILS
A. STAINLESS STEEL CHIMNEY SYSTEM PLATE
SETUP AND CONNECTION
slip connector: same brand
as the class A insulated chimney.
adaptateur simple paroi de même
marque que la cheminée isolée
class A insulated chimney pipe
8" id - 10" od
cheminée isolée:
(200 int./250 ext.)
anti-heat loss washers
rondelles à rupture
de pont thermique
optional sub-ceiling
oblique cover disc
disque cache plafonnier
(optionnel)
focus steel flue
conduit en acier
oblique anchor plate
platine de suspension inclinée
focus 8" universal adaptor
adaptateur focus
pour conduit en 200 mm
16 " mini.
16 " mini.
this point 3" mini.
below finished ceiling.
Ce niveau doit se trouver
75mm sous le plafond fini.
finishing collar
collier de finition
406mm mini.
406mm mini.
B. FLUE ATTACHMENT TO ANCHOR PLATE
focus steel flue
conduit en acier
8 vis pointeaux
C. ORDER IN WHICH TO TIGHTENING THE PLATE
SCREWS (TO SECURE PROGRESSIVELY)
