Focus ERGOFOCUS - Junction Sleeve Detail; Rotating Mechanism Detail

9
Installation

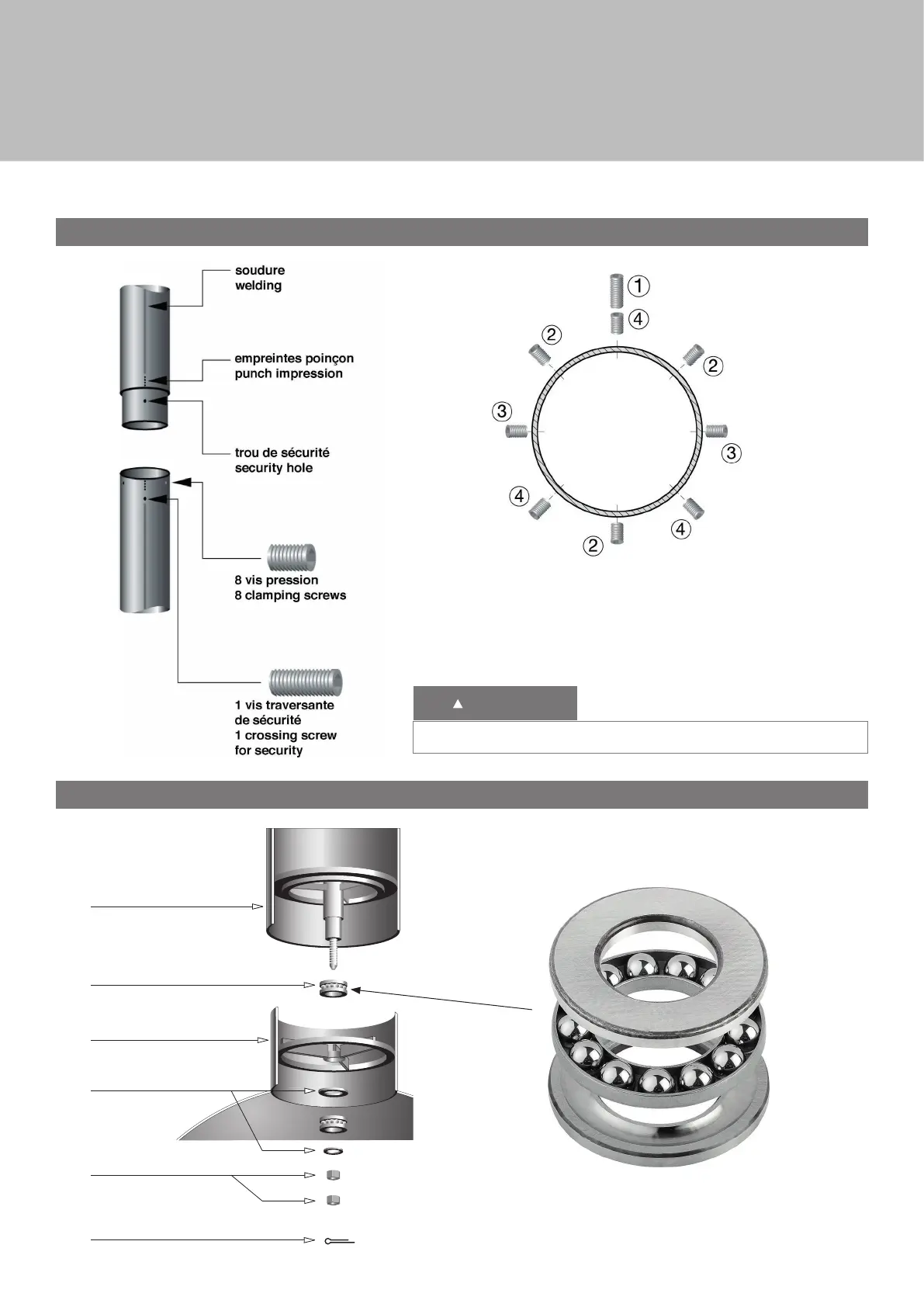

D. JUNCTION SLEEVE DETAIL
NOTE : The junction sleeves are provided only when the floor to
ceiling height in the room requires several focus pipe in
several parts.
(you may not find a junction sleeve on 9 feet or less
ceiling height)
E. ROTATING MECHANISM DETAIL
low part of the steel ue
bas du conduit en acier
smoke outlet sleeve
manchon de départ de fumées
washers
rondelles
nut M12 (Ø⁄’’)
écrou M12
Ø 21/40
ep. 3mm
Ø 13/27
ep. 3mm
ball bearings
butées à billes
cotter pin
goupille de sécurité
Ø ⁄’’  ⁄’’
thickness ⁄’’
Ø ½’’  ⁄’’
thickness ⁄’’
CAUTION
Screws do not sit flush when installed.
