Fomotech Alpha 608A - Alpha 612 Dip-Switch Functionality

- 34 -

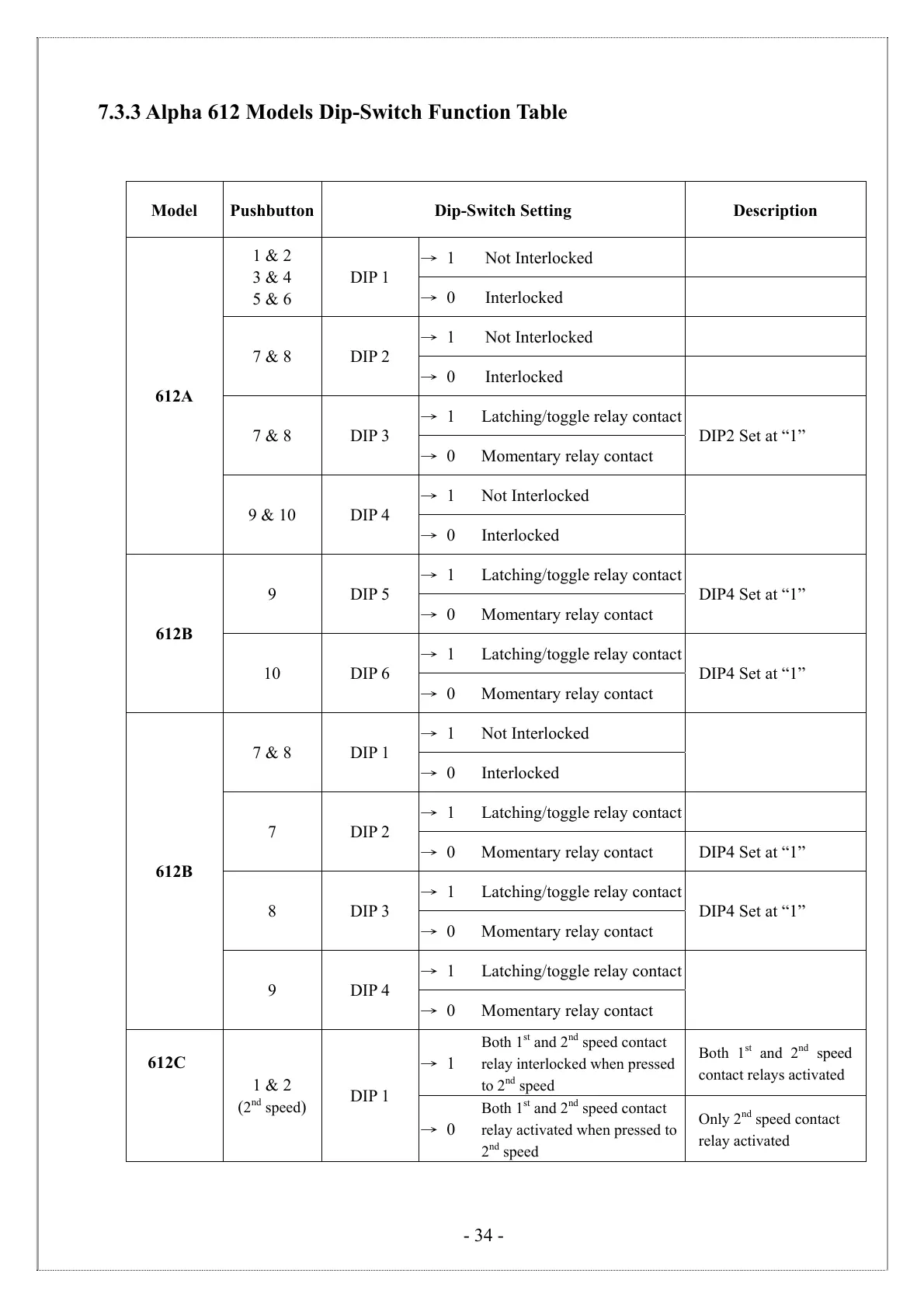

7.3.3 Alpha 612 Models Dip-Switch Function Table
Model Pushbutton Dip-Switch Setting Description
→ 1 Not Interlocked
1 & 2
3 & 4
5 & 6
DIP 1
→ 0 Interlocked
→ 1 Not Interlocked
7 & 8 DIP 2
→ 0 Interlocked
→ 1 Latching/toggle relay contact
7 & 8 DIP 3
→ 0 Momentary relay contact
DIP2 Set at “1”
→ 1 Not Interlocked
612A
9 & 10 DIP 4
→ 0 Interlocked
→ 1 Latching/toggle relay contact
9 DIP 5
→ 0 Momentary relay contact
DIP4 Set at “1”
→ 1 Latching/toggle relay contact
612B
10 DIP 6
→ 0 Momentary relay contact
DIP4 Set at “1”
→ 1 Not Interlocked
7 & 8 DIP 1
→ 0 Interlocked
→ 1 Latching/toggle relay contact
7 DIP 2
→ 0 Momentary relay contact DIP4 Set at “1”
→ 1 Latching/toggle relay contact
8 DIP 3
→ 0 Momentary relay contact
DIP4 Set at “1”
→ 1 Latching/toggle relay contact
612B
9 DIP 4
→ 0 Momentary relay contact
→ 1
Both 1
st
and 2
nd
speed contact
relay interlocked when pressed
to 2
nd
speed
Both 1
st
and 2
nd
speed
contact relays activated
612C
1 & 2
(
2
nd
speed)
DIP 1
→ 0
Both 1
st
and 2
nd
speed contact
relay activated when pressed to
2
nd
speed
Only 2
nd
speed contact
relay activated
