STOP: press → lock (emergency stop) STOP: Elevate clockwise → reset (Turn on the transmitter at any time)

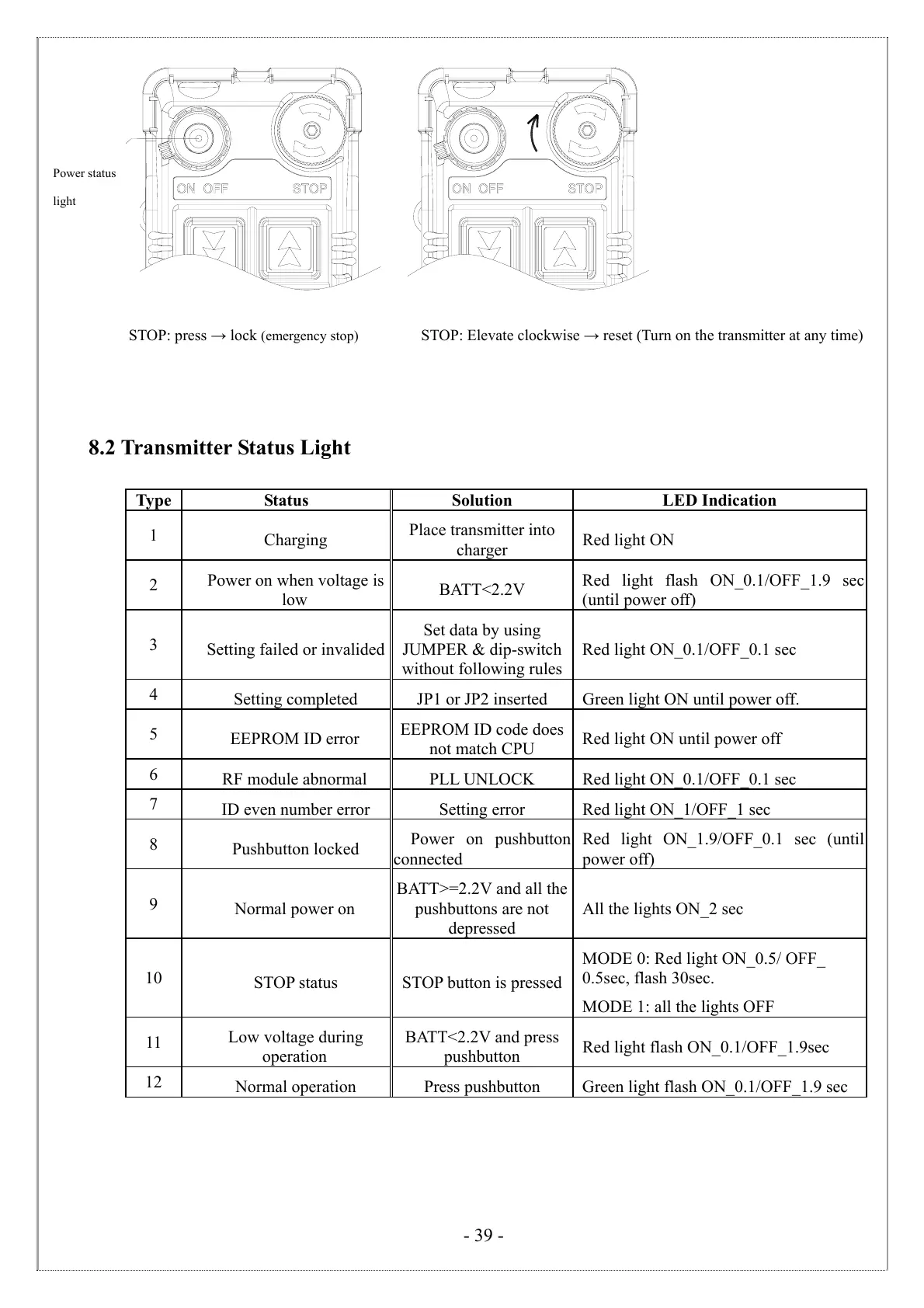

8.2 Transmitter Status Light
Type Status Solution LED Indication
1
Charging
Place transmitter into
charger
Red light ON
2
Power on when voltage is
low
BATT<2.2V
Red light flash ON_0.1/OFF_1.9 sec
(until power off)
3
Setting failed or invalided
Set data by using
JUMPER & dip-switch
without following rules
Red light ON_0.1/OFF_0.1 sec
4
Setting completed JP1 or JP2 inserted Green light ON until power off.
5
EEPROM ID error
EEPROM ID code does
not match CPU
Red light ON until power off
6
RF module abnormal PLL UNLOCK Red light ON_0.1/OFF_0.1 sec
7
ID even number error Setting error Red light ON_1/OFF_1 sec
8
Pushbutton locked
Power on pushbutton
connected
Red light ON_1.9/OFF_0.1 sec (until
power off)
9
Normal power on
BATT>=2.2V and all the
pushbuttons are not
depressed
All the lights ON_2 sec
10
STOP status STOP button is pressed
MODE 0: Red light ON_0.5/ OFF_
0.5sec, flash 30sec.
MODE 1: all the lights OFF
11
Low voltage during
operation
BATT<2.2V and press
pushbutton
Red light flash ON_0.1/OFF_1.9sec
12
Normal operation Press pushbutton Green light flash ON_0.1/OFF_1.9 sec
Power status
light
