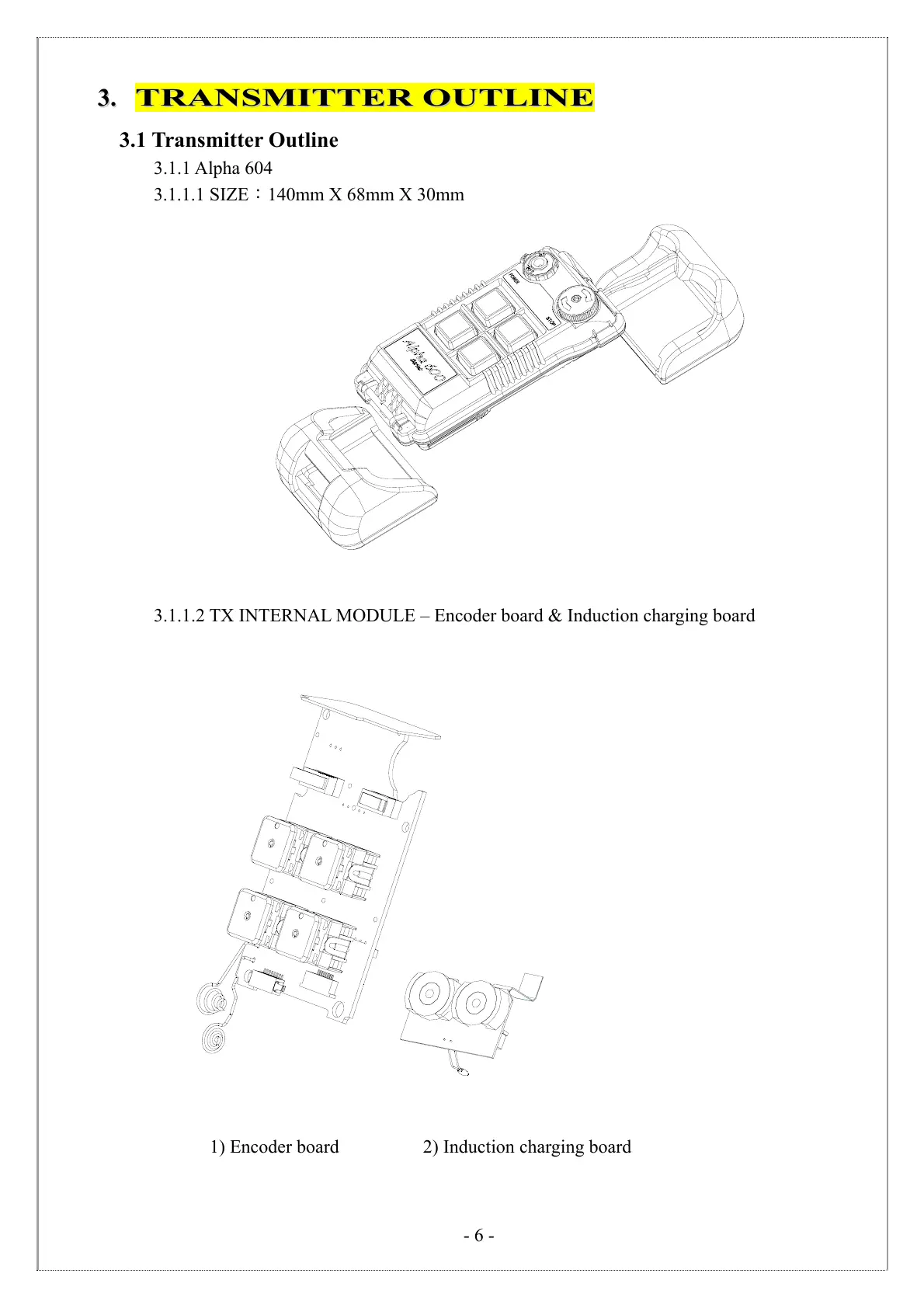

3.1 Transmitter Outline
3.1.1 Alpha 604
3.1.1.1 SIZE：140mm X 68mm X 30mm
3.1.1.2 TX INTERNAL MODULE – Encoder board & Induction charging board
1) Encoder board 2) Induction charging board
