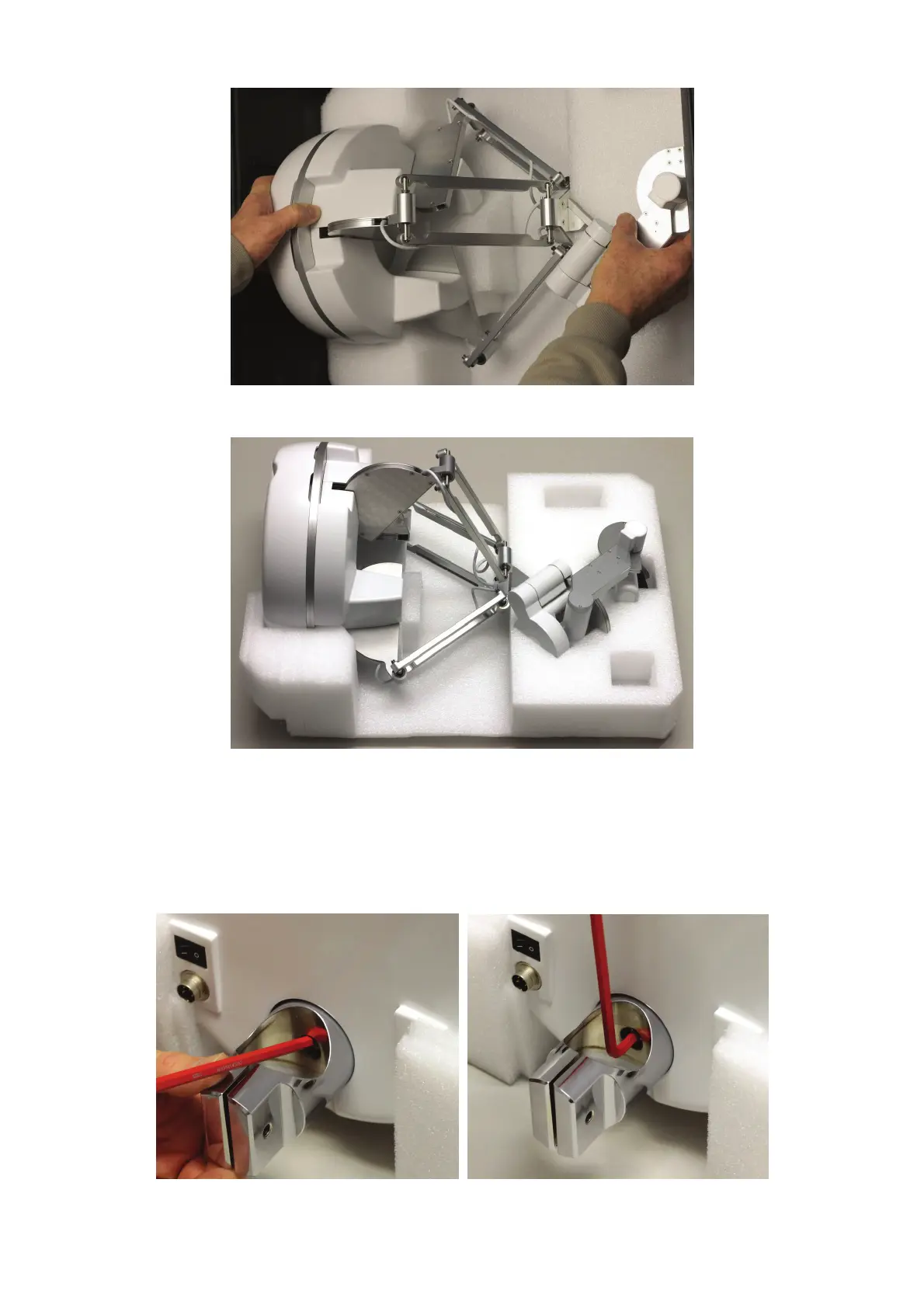

figure 5 – the device is lifted out of the plastic container
figure 6 – the device is placed back on its lower foam block
Insert the pole attachment interface at the back of device body shroud and securely fasten the
screw by using the provided red hex-driver tool, as illustrated in figure 7. Please make sure that
the pole attachment interface is correctly oriented as shown in figure 8. By using the same hex-
driver you may now loosen the clamping screw.
figure 7 – mounting of the pole attachment interface
10
