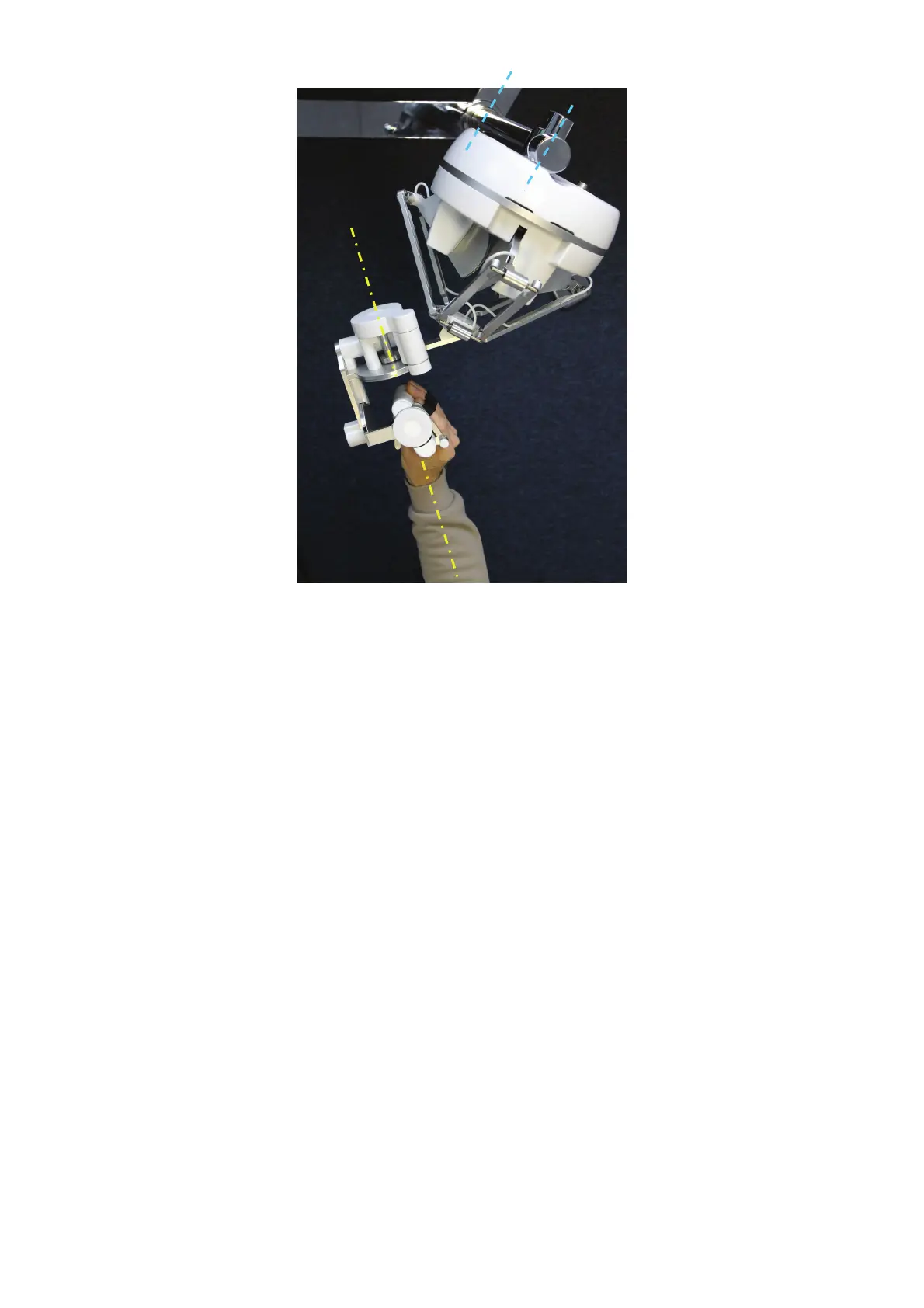

figure 10 – relative forearm alignment for optimal wrist dexterity (yellow dashed lines) and rear leg orienta-
tion of stand (blue dashed lines)
You will also find in the plastic container the power and USB cables, as well as the driver and
SDK installation media (memory stick).
3.2 installing the power supply
Plug the power supply into the power connector. The system may support either high-input volt-
age (200-240 volt) or low-input voltage (100-120 volt). For safety purposes you should only op-
erate your sigma.7 haptic device using the original Force Dimension power supply that came
with your device. Replacement power supplies can be ordered directly from Force Dimension.
12
