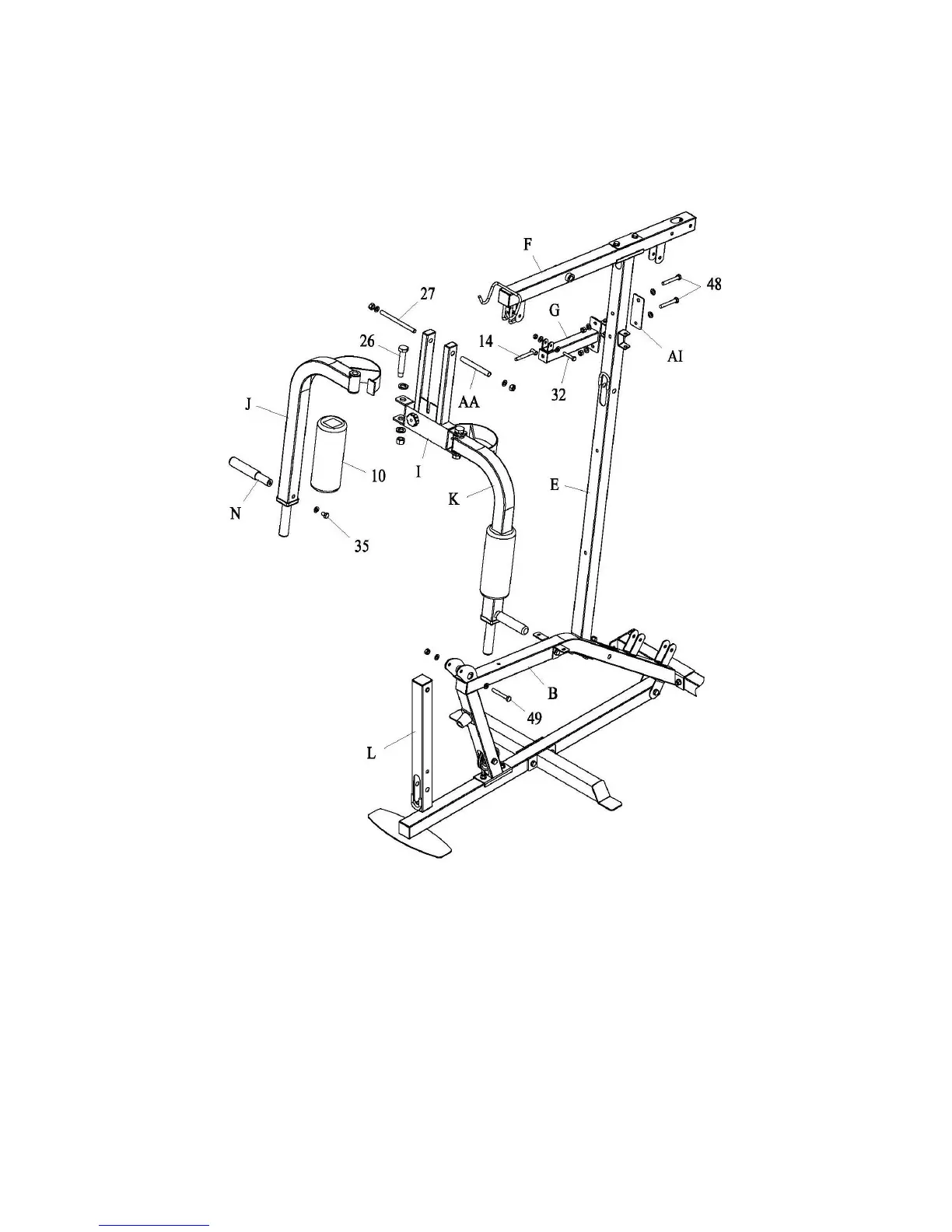

STEP 03
1． Attach part (L) to part (B) with bolt assembly (49).
2． Attach part (G) and part (AI) to part (E) with bolt assembly (48).
3． Attach part (I) to part (F) with part (AA) and bolt assembly (27).
4． Attach part (J) and part (K) to part (I) with bolt assembly (26).
5． Slide part (10) onto part (J) and part (K).
6． Attach part (N) to part (J) and part (K) with bolt assembly (35).
