- 2 -
Notice to Installer and Owner
This manual as well as safety labels posted on the
outboard use the following safety alerts to draw your
attention to special safety instructions that should be
followed.
!
DANGER
DANGER - Immediate hazards which WILL result
in severe personal injury or death.
!
WARNING
WARNING - Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION
CAUTION - Hazards or unsafe practices which
could result in minor personal injury or product
or property damage.
!
WARNING
DO NOT OVERPOWER - Most boats are rated and
certified for the maximum horsepower capabili-
ties of the boat. Refer to the boat’s “Certification
Plate” for the maximum horsepower limit or, if in
doubt, contact your dealer or boat manufacturer.
U.S. COAST GUARD CAPACITY
MAXIMUM HORSEPOWER XXX
MAXIMUM PERSON
CAPACITY (POUNDS) XXX
MAXIMUM WEIGHT
CAPACITY XXX
Selecting Steering Cables
and Remote Control Cables
Refer to “Quicksilver Accessories Guide” to deter-
mine correct length of steering cables and remote
control cables.
IMPORTANT: Steering cables and remote control
cables must be the correct length. Sharp bends
on too-short cables result in “kinks;” too-long
cables require unnecessary bends and/or loops.
Both conditions place extra stress on the cables.
Installing Outboard on
Transom
Determining Recommended
Outboard Mounting Height

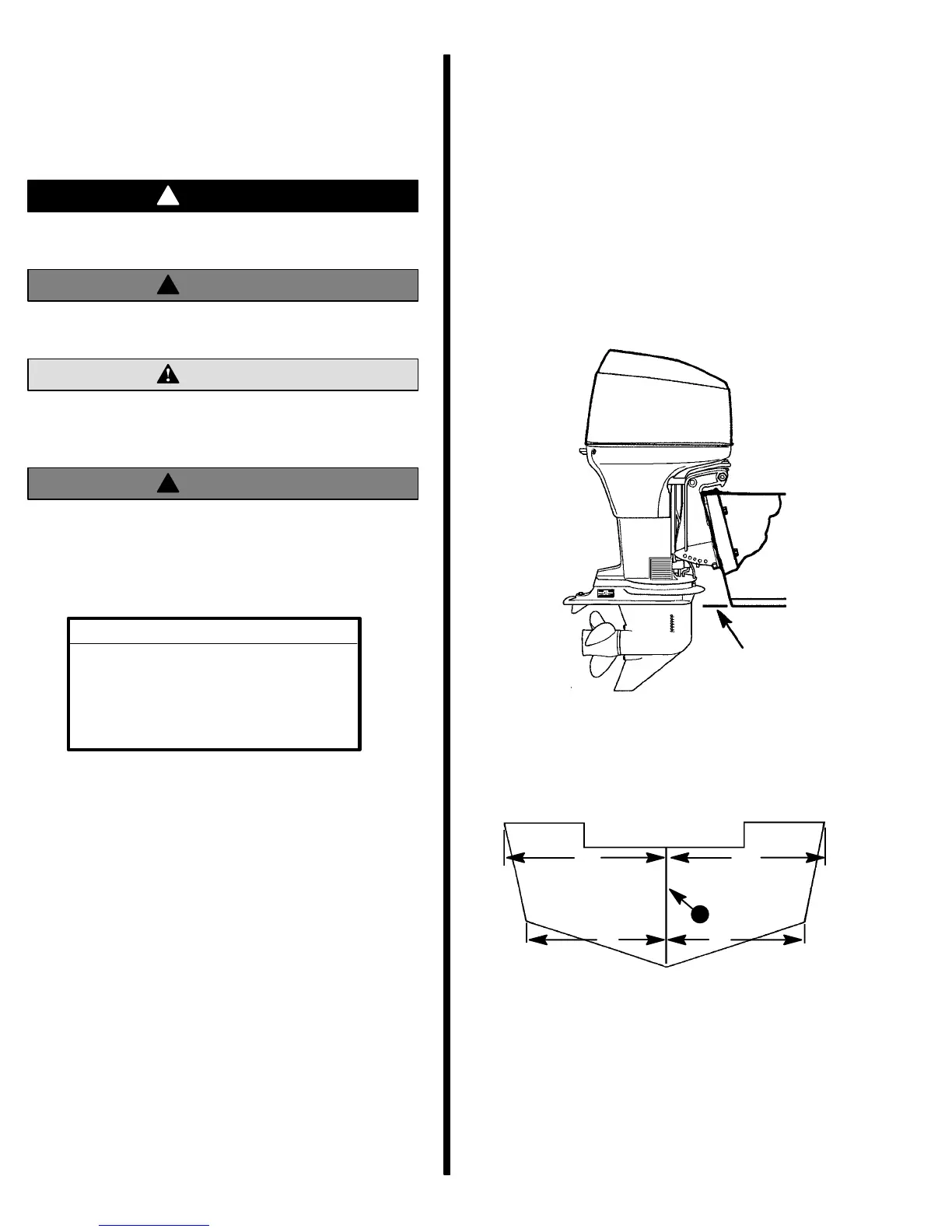

Long drive shaft housing models are designed to op-
erate on boats that have a 20 inch transom (51 cm).
X-Long drive shaft housing models are designed to
operate on boats that have a 25 inch transom (64 cm).
For best all-around boating performance, it is recom-
mended that the outboard be mounted with the
anti-ventilation plate flush with the boat bottom.
Locating Centerline of Boat Transom
Locate (and mark with pencil) vertical centerline (a)
of boat transom.
BA
DC
a
a - Centerline of Transom
NOTE: Dimensions “A” = “B” and “C” = “D”.
