Force JX-1300 - Page 16

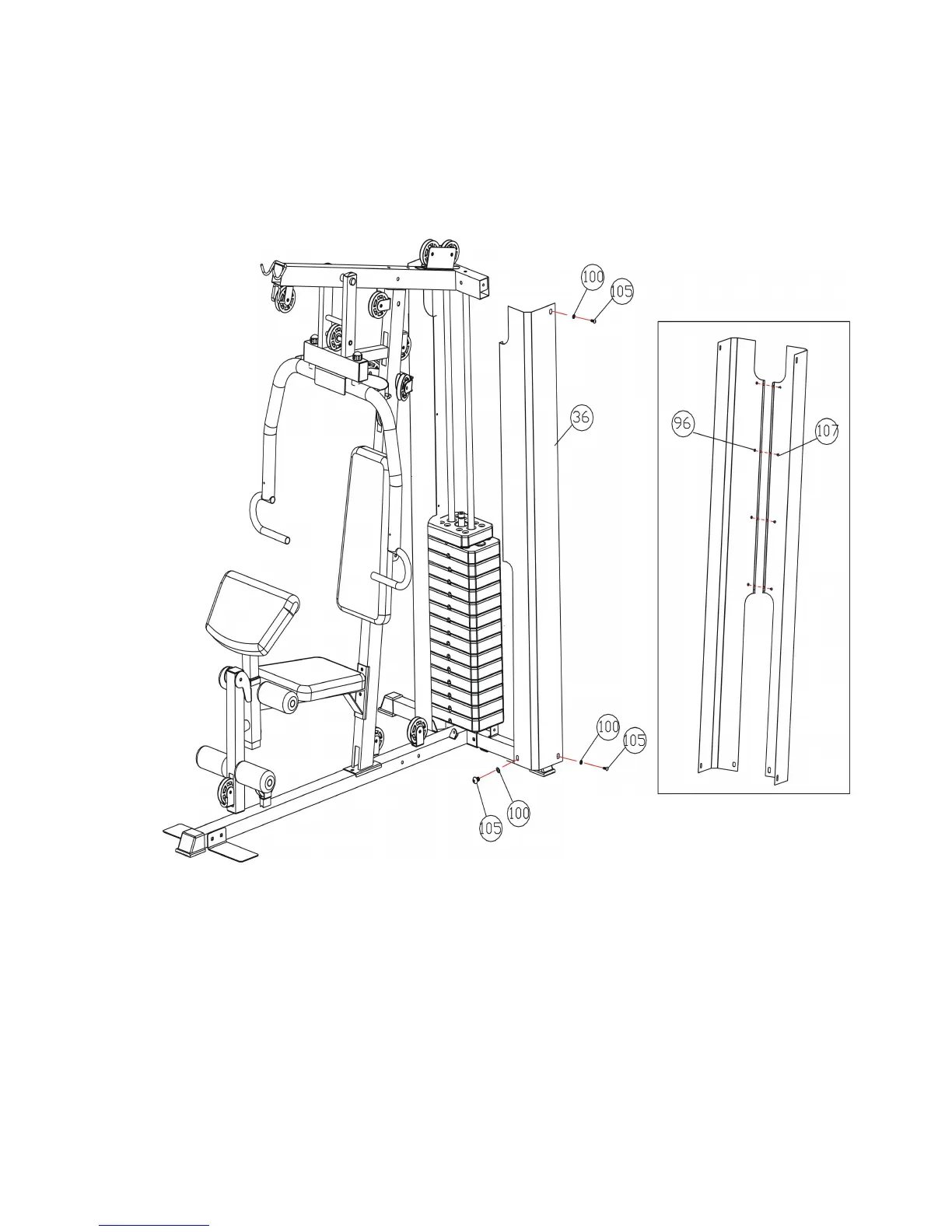

STEP 8
A) Attach the left & Right Weight stack Cover(36&37) together, and Secure them
with four pcs Philips Screw (107#) and four M5 aircraft Nut(96#).
B) Place the left & Right Weight Stack Cover(36&37)onto the Rear Stabilizer(2#)
and Secure them with 6PCS M10*16 Allen Bolts(105#),6pcsφ10 washer(100#）.
15
