Assembly step
It is strongly recommend that two or more person assemble this three station home
gym.
Tool required assembly the machine: two adjustable wrenches, and one Philips
screw driver
Carefully unpack each component ,checking against the part list that you have all
the necessary parts to complete the assembly.
STEP 1

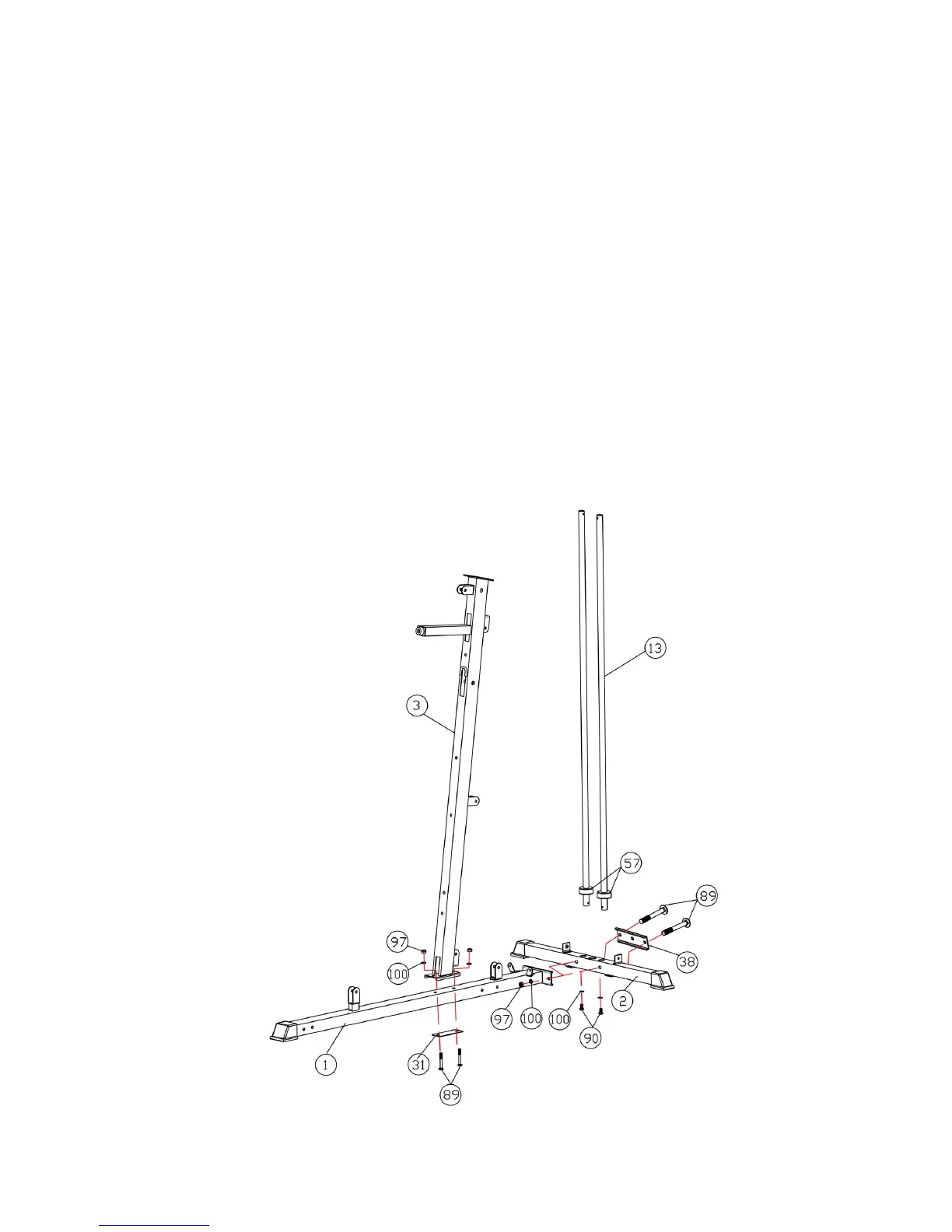

A)Insert the 2 pcs Guide Rod（13#）into the two holes on the rear stabilizer
（2#）,And secure them with 2pc M10×25 Allen bolt（90#） and 2pcs φ10 Washer
(100#), And then slide 2 pcs rubber bumper(57#) onto the Guide Rods from the top
to the bottom.
Do not fully tighten the bolts and nuts until getting instruction.
B.) Attach the Main base frame (1#) to the Rear Stabilizer(2#) , Secure them with 2 pcs
M10×70 Carriage Bolt （ 89# ） , one pc U- Shaped Bracket （ 38# ） ,2pcs φ10
Washer(100#) and 2pcs M10 Aircraft nut (97#) .
C.) Attach the Front vertical frame (3#) onto the Main base frame (1#), And Secure
them with 2pc M10X70 Carriage Bolt(89#), 1 pc bracket(31#),2 pcs φ10
Washer(100#) and 2 pcs Aircraft nut (97#).
