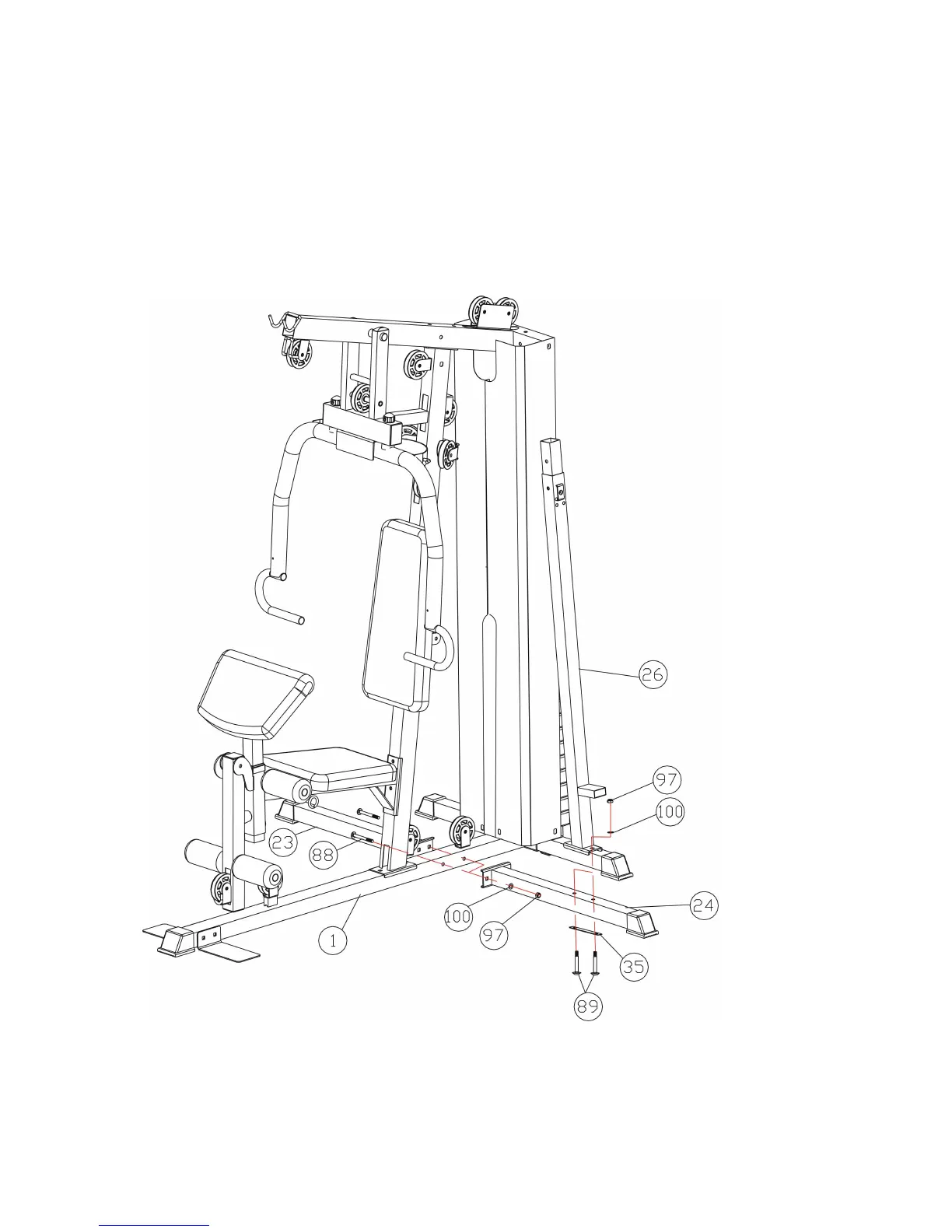

STEP 9
A) Attach the left side Stabilizer (23#)and right side stabilizer(24#) to the Main base
Frame(1#), And secure them with two pcs M10*90 Carriage Bolt(88#),two pcs Ø 10
washers(100#) and two pcs M10 aircraft Nuts(97#).
B) Attach the lower vertical frame (26#) to the right side stabilizer stabilizer(24#), and
secure them with two pcs M10*70 Carriage Bolt (89#), one pc bracket(35#),two pcs
Ø 10 washers (100#),Two pcs Aircraft Nuts(97#).
16
