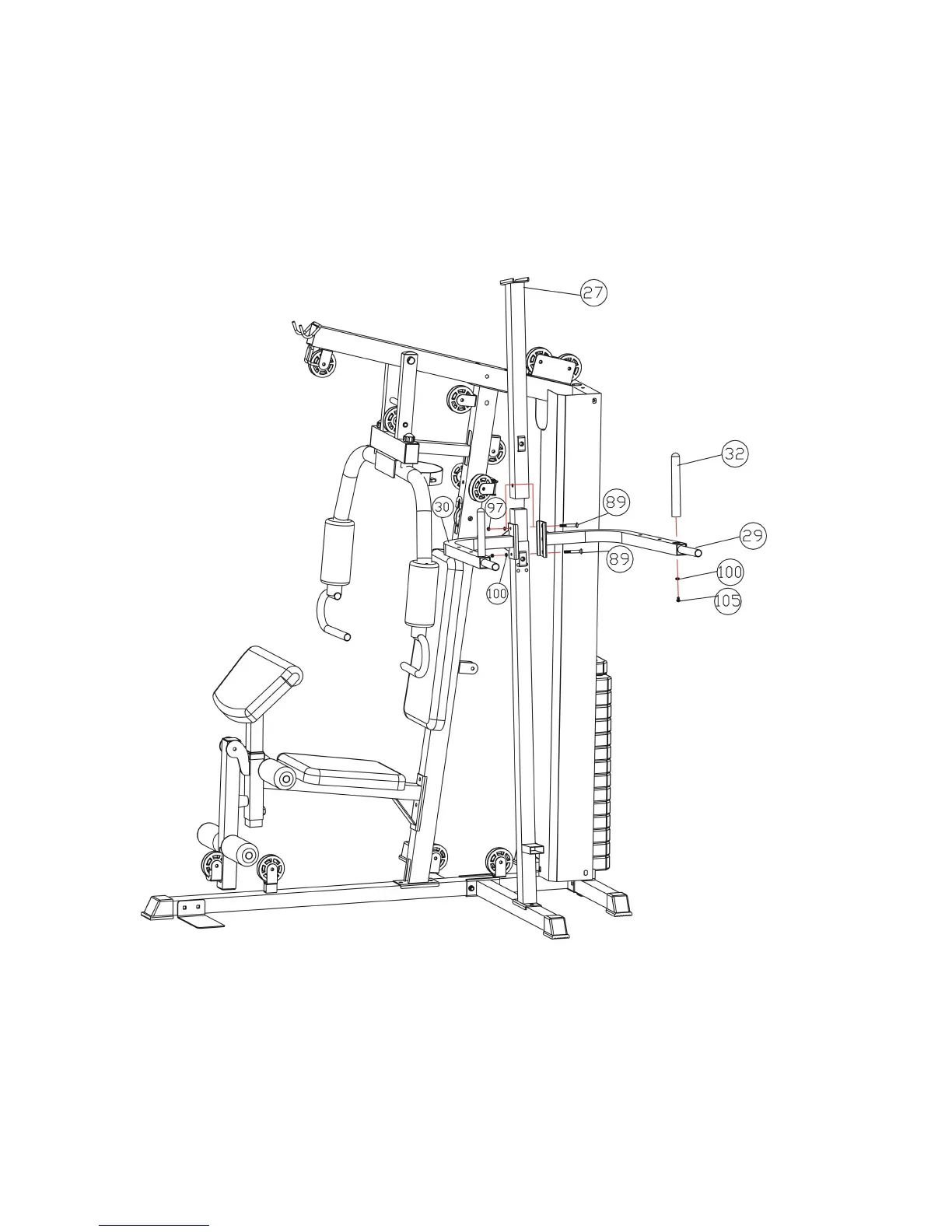

Step 10
A) Attach the upper Vertical Frame (27#) to the lower vertical Frame(26#).
B) Attach the left Dip Arm( (29#),right Dip Arm(30#),upper vertical frame(27#) ,lower
vertical frame (26#) together. And Secure them with two pcs M10*70 Carriage
Bolts(89#), two Ø 10 washers(100#), and M10 Aircraft Nuts(97#).
C) Attach the two pcs vertical Handle (32#) onto the left Dip Arm( (29#) and right Dip
Arm(30#), , and Secure them with two M10*16 Allen Bolts(105#) ,two pc Ø 10
washer(100#).
