Force JX-DS925 - Page 7

Step 2
6
Assembly Instructions

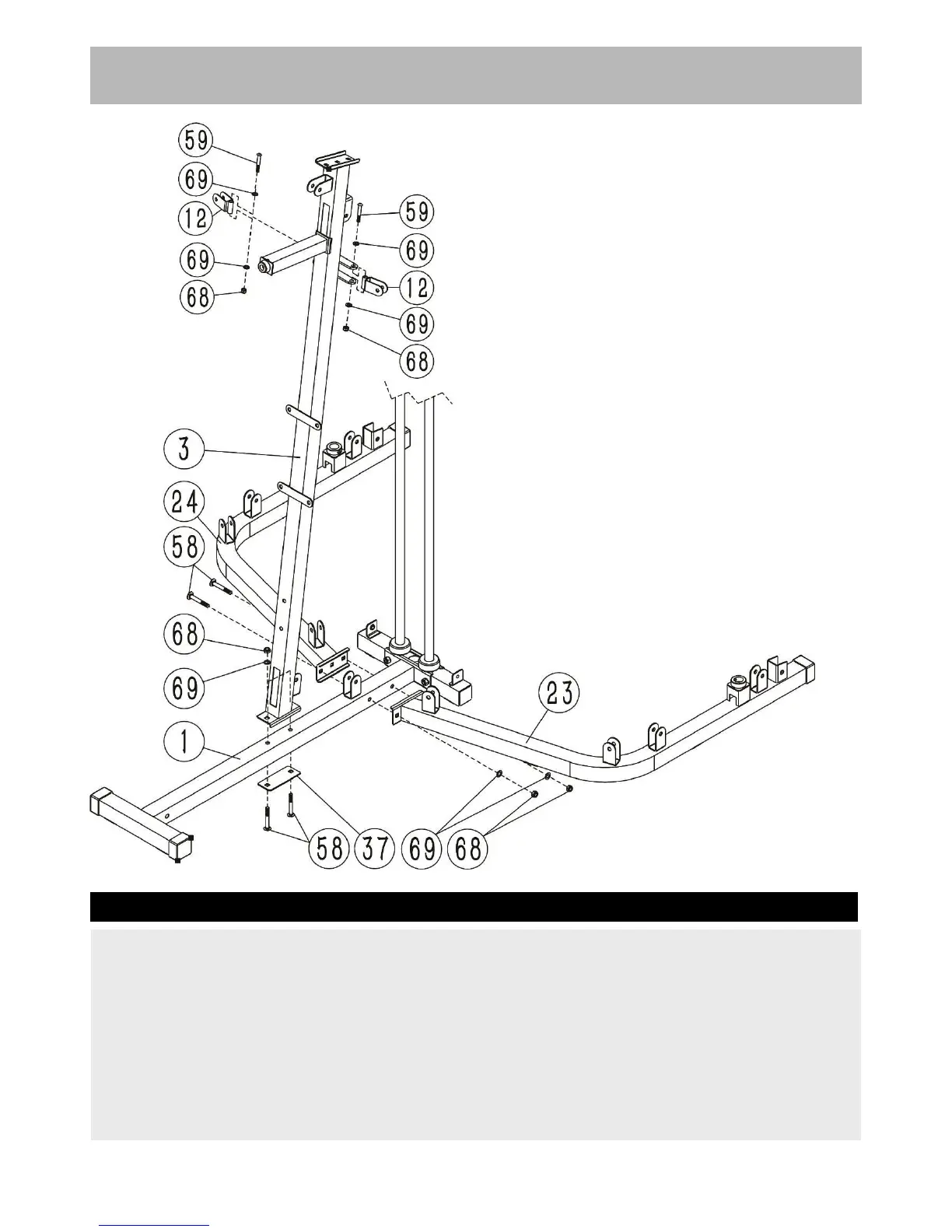

a. Attach the front vertical frame(3#) onto the base frame(1#). Carefully align the holes and secure them
with 2pcs M10*70 carriage bolt(58#), 1 pc bracket(37#),2pcs φ10 washers(69#) and 2pcs M10
Aircraft nuts(68#) .
b. Attach the left stabilizer(23#) and right stabilizer(24#) to the base frame together ,and secure them
with 2pcs M10*70 carriage bolt(58#), 2pcs φ10 washers(69#) and 2pcs M10 Aircraft nuts(68#) .
c. Attach the swivel pulley bracket(12#) and secure it with 1pc M10X65 Allen bolt(59#),2pcs φ10
washers(69#)and 1pc M10 Aircraft nuts(68#) .Repeat the same way to install another swivel pulley
bracket.
