ForceDoor BASE 35 - Page 38

36

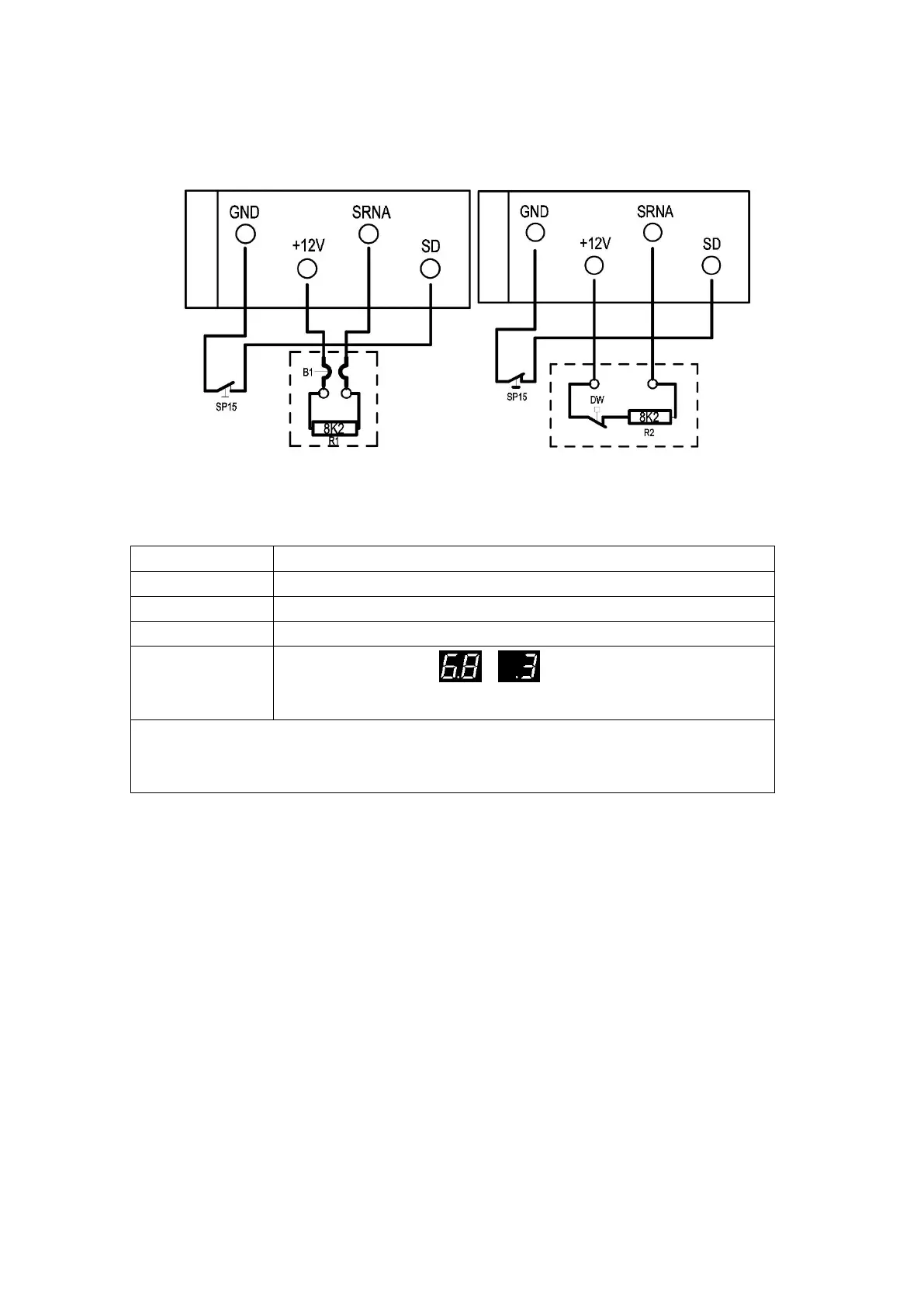

XH08 Safety terminal
(Wicket door protection/ Electrical safety edge/ Air pressure switch)
GND
GND
+12V
+12V
SINA
Signal
SP15/SD
Wicket door/ Pass door protection device terminal
DW (Air pressure
switch)
Activate function menu
/
to enable (DW) air pressure switch
Remark: Only NC (Normal close) contact air pressure switch
Note1: SP15 is disconnected, the door drive stops, and all control functions are invalid.
Note2：The Electrical safety edge is short-circuited during the closing process, and the door
drive will automatic reverse.
